Complete Bentonite Granulator Production Line Solution

Bentonite, a natural clay mineral rich in montmorillonite, is widely used in agriculture, foundry, drilling, pet care, and environmental protection industries due to its strong hygroscopicity, high viscosity, and excellent binding capacity. However, natural bentonite is mostly in powder form, which causes dust pollution during transportation, is inconvenient to apply, and has low commercial value. A complete bentonite granulator production line solution solves these pain points by processing powdered bentonite into uniform, high-strength granules, enhancing product value and market competitiveness. This SEO-optimized article covers the core components, process flow, key advantages, application scenarios, customization options, and selection guidelines of a complete bentonite granulator production line.

What Is a Complete Bentonite Granulator Production Line?

A complete bentonite granulator production line is an integrated set of automated equipment designed for mass production of bentonite granules. Unlike single granulator machines, it integrates raw material pretreatment, mixing, granulation, drying, cooling, screening, and packaging into one, realizing continuous, efficient, and stable production from powdered bentonite to finished granules. This solution is tailored to the unique properties of bentonite—such as easy swelling when wet and high viscosity—and solves industry pain points like equipment sticking, uneven granule size, and low production efficiency.

Whether you need to produce bentonite cat litter, foundry sand binders, soil conditioners, or drilling mud additives, a complete bentonite granulator production line can be customized to meet your specific product requirements, production scale, and budget. It is the core equipment for bentonite processing enterprises to achieve industrialization, standardization, and high-quality production.

Core Components of a Complete Bentonite Granulator Production Line

A reliable complete bentonite granulator production line consists of multiple coordinated components, each playing a key role in ensuring production efficiency and product quality. The core components are designed to adapt to bentonite’s characteristics, avoiding sticking and ensuring uniform granulation:

Raw Material Pretreatment System

Pretreatment is the foundation of high-quality bentonite granulation, as impurities and uneven particle size will affect granulation effect. This system includes crushers, dryers, and sieves: ① Crushers (hammer crushers or jaw crushers) break large lumps of raw bentonite into fine powder (60-80 mesh), ensuring uniform particle size for subsequent mixing and granulation ② Dryers (rotary dryers or flash dryers) reduce the moisture content of raw bentonite to 8%-15%—a critical range to prevent swelling and sticking during granulation ③ Sieves remove impurities (stones, metal fragments) and unqualified powder, protecting subsequent equipment and ensuring raw material purity.

Mixing System

The mixing system ensures uniform mixing of bentonite powder with additives (such as binders, modifiers, or colorants) to improve granule strength and functionality. It mainly includes high-efficiency mixers (double-shaft paddle mixers or three-dimensional turbulent mixers), which adopt three-dimensional turbulent technology to achieve full, dead-angle-free mixing of materials. For bentonite cat litter production, the mixer can evenly mix bentonite with deodorants or antibacterial agents; for foundry binders, it can blend bentonite with other binders to enhance bonding performance. The mixing uniformity reaches over 95%, laying a foundation for high-quality granulation.

Granulation System (Core Equipment)

The granulator is the core of the entire production line, and the type is selected according to the desired granule shape, size, and production scale. The most commonly used granulators for bentonite are: ① Disc Granulator: Suitable for small to medium-scale production, with a granulation rate of over 90%, producing smooth, round granules (2-8mm adjustable) by relying on centrifugal force and gravity. The disc is lined with wear-resistant rubber or fiberglass to prevent sticking, and the inclination angle (35°-55°) and rotation speed (15-30 r/min) are adjustable. ② Roller Press Granulator: Suitable for large-scale dry granulation, compressing bentonite powder (moisture ≤5%) into dense granules without adding water or binders, saving energy and avoiding swelling issues. It is ideal for heat-sensitive or moisture-sensitive bentonite products. ③ Extrusion Granulator: Suitable for producing cylindrical bentonite granules (1-4mm), with high granulation rate (≥95%) and strong adaptability to high-viscosity bentonite, widely used in cat litter production.

Drying and Cooling System

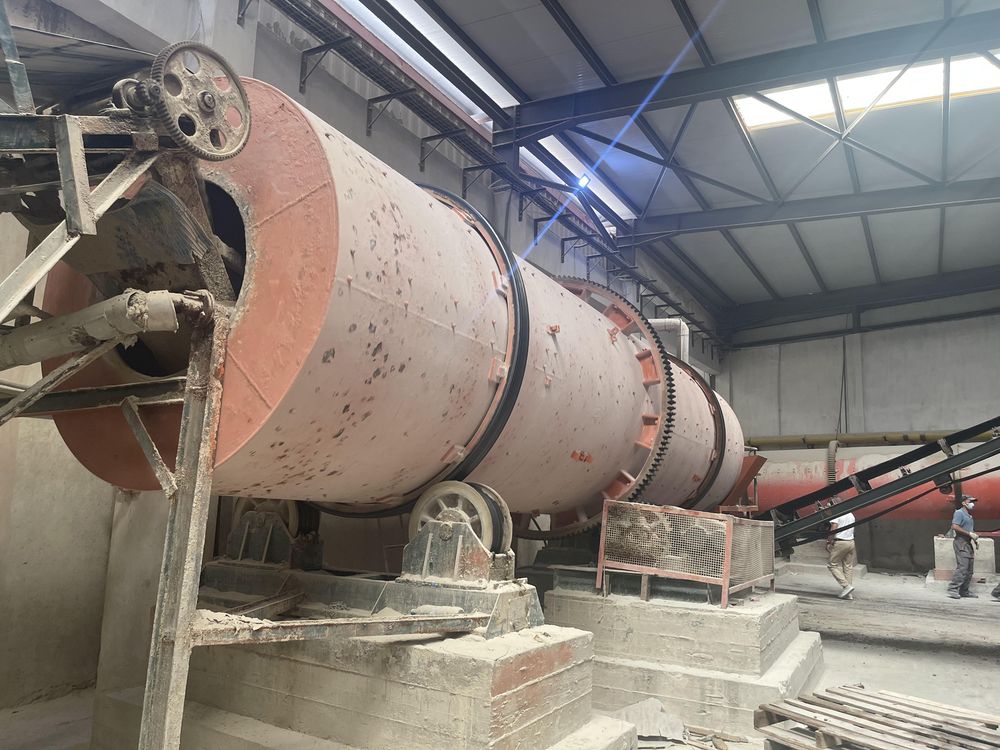

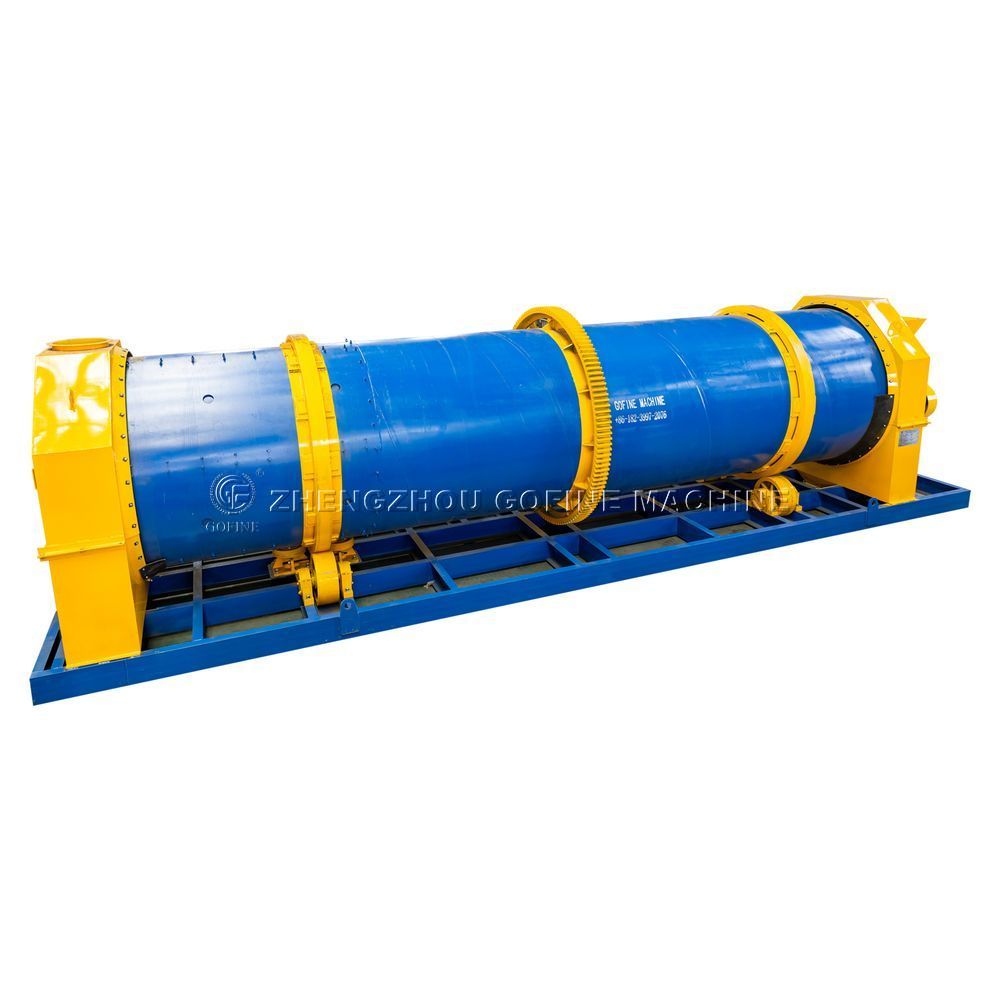

After granulation, the wet bentonite granules (moisture 25%-35%) need to be dried and cooled to ensure storage stability and granule strength. ① Rotary Dryer: Uses hot air (80-120℃) to reduce the moisture content of granules to ≤10%, avoiding agglomeration and mold growth. The dryer is equipped with a temperature control system to prevent over-drying, which may damage the binding properties of bentonite. ② Rotary Cooler: Cools the dried granules (60-80℃) to room temperature (25-30℃) using normal-temperature air, improving granule hardness and preventing caking during storage and transportation. The cooling efficiency reaches over 90%, ensuring consistent product quality.

Screening and Recycling System

The screening system uses a vibrating screen (three-layer mesh design) to separate qualified granules (according to preset size) from unqualified ones. Oversized granules are sent back to the crusher for secondary crushing, and fine powder is returned to the mixer for re-granulation, realizing closed-loop recycling of raw materials with a utilization rate of over 98%. This not only reduces raw material waste but also lowers production costs. The screening system is equipped with a dust cover to prevent dust leakage, meeting environmental protection standards.

Packaging and Conveying System

The packaging system adopts an automatic packaging machine, which can complete weighing, bagging, and sealing automatically, with a packaging speed of 20-50 bags per minute (25-50kg per bag). For large-scale production, a palletizing machine can be added to realize automatic stacking and storage, reducing labor intensity. The conveying system (belt conveyors or screw conveyors) connects all components, ensuring continuous and stable material transportation, and is equipped with anti-sticking devices to prevent bentonite from adhering to the conveyor belt.

Dust and Environmental Protection System

Bentonite powder is easy to generate dust during production, so a complete environmental protection system is essential. The system includes bag-type dust collectors, which collect dust generated in the crushing, mixing, and screening links with a dust removal rate of over 99%. The closed-loop design of the entire production line prevents dust leakage, and the wastewater generated during cleaning can be recycled after treatment, realizing green and environmentally friendly production that meets global emission standards.

Process Flow of Complete Bentonite Granulator Production Line

The process flow of a complete bentonite granulator production line is scientific, simple, and easy to control, ensuring continuous and stable production. The standard flow is as follows, which can be customized according to raw material characteristics and product requirements:

1. Raw Material Feeding: Raw bentonite lumps are transported to the crusher through a conveyor belt for crushing into fine powder.

2. Pretreatment: The crushed bentonite powder is dried to adjust moisture content to 8%-15%, then sieved to remove impurities and unqualified powder.

3. Mixing: The pretreated bentonite powder is sent to the mixer, and additives (binders, deodorants, etc.) are added according to the formula for uniform mixing.

4. Granulation: The mixed material is transported to the granulator (disc, roller press, or extrusion type) for granulation, with particle size adjusted according to product requirements (1-8mm).

5. Drying: The wet granules are sent to the rotary dryer to reduce moisture content to ≤10%.

6. Cooling: The dried granules are cooled to room temperature in the rotary cooler to improve strength and stability.

7. Screening: The cooled granules are sieved to separate qualified products from unqualified ones; unqualified materials are recycled for reprocessing.

8. Packaging and Storage: Qualified granules are automatically weighed, bagged, sealed, and stacked for storage or transportation.

Key Advantages of Complete Bentonite Granulator Production Line Solution

A complete bentonite granulator production line solution offers comprehensive advantages over single equipment or simple production lines, solving the pain points of bentonite granulation and bringing long-term value to enterprises:

Tailored to Bentonite Characteristics, High Granulation Quality

The entire line is designed for bentonite’s strong viscosity and swelling properties—key components (such as granulator linings, mixers, and conveyors) are equipped with anti-sticking devices, avoiding material adhesion and equipment blockage. The granulation rate reaches over 90%, and the produced granules are uniform in size, smooth in surface, and high in compression strength (≥15N), meeting the quality requirements of different application fields (e.g., cat litter, foundry binders).

Continuous Production, High Efficiency

The integrated design realizes 24-hour continuous production without frequent shutdowns for material replacement or equipment maintenance. The production capacity ranges from 1t/h to 42t/h, meeting the needs of small, medium, and large-scale bentonite processing enterprises. Compared with semi-automatic production, the efficiency is improved by 60%-80%, greatly reducing labor costs and improving production output.

Flexible Customization, Wide Application

The solution can be customized according to production scale, product type, and granule size. For example, small-scale cat litter factories can choose a disc granulator line with low investment; large-scale foundry binder manufacturers can choose a roller press granulator line for high-efficiency dry granulation. The line can produce various bentonite products, including cat litter granules, foundry sand binders, soil conditioners, drilling mud additives, and iron ore pellet binders, helping enterprises expand product categories.

Energy-Saving and Environmental Protection, Low Operating Costs

The optimized process flow and energy-saving equipment (such as low-power motors, closed-loop recycling systems) reduce energy consumption by 20%-30% compared with traditional production lines. The dust and wastewater treatment systems meet global environmental standards, avoiding environmental fines. The closed-loop recycling of raw materials reduces waste, and the durable components (wear-resistant linings, high-quality motors) reduce maintenance costs and equipment downtime losses.

Full-Automatic Control, Easy Operation

The entire line adopts PLC touch screen control, realizing real-time monitoring and adjustment of production parameters (such as drying temperature, granulation speed, and feeding amount). The system has fault early warning and automatic shutdown functions, avoiding equipment damage and product quality problems caused by improper operation. Operators only need simple training to master the operation, reducing dependence on professional technicians.

Application Scenarios of Complete Bentonite Granulator Production Line

Due to its flexibility and high adaptability, a complete bentonite granulator production line is widely used in various industries that require bentonite granules. The main application scenarios are as follows, helping target users find your webpage through Google searches:

Bentonite Cat Litter Production

This is one of the most common application scenarios. The production line processes bentonite into high-absorbency, low-dust cat litter granules (1-4mm), which are smooth, easy to clump, and deodorant. The line can add deodorants or antibacterial agents during mixing to improve product quality, meeting the growing demand for pet care products worldwide.

Foundry Industry (Foundry Sand Binder)

Bentonite granules are used as binders in foundry sand, improving the strength and heat resistance of molding sand. The production line produces uniform, high-strength bentonite granules (0.5-2mm) that are easy to mix with foundry sand, reducing dust and improving molding efficiency. It is widely used in steel and casting factories.

Agriculture (Soil Conditioner and Fertilizer Carrier)

Bentonite granules are used as soil conditioners to improve soil water and fertilizer retention capacity, especially for sandy soils. They can also be used as fertilizer carriers to slow down nutrient release. The production line produces large-particle bentonite soil conditioners (2-8mm) that are easy to spread mechanically, suitable for large-scale agricultural planting and horticulture.

Drilling Industry (Drilling Mud Additive)

Bentonite granules are used to prepare drilling mud, which plays a role in increasing viscosity, reducing fluid loss, and lubricating the well wall. The production line produces fine-grained bentonite granules (0.1-0.5mm) that are easy to disperse in water, meeting the requirements of oil and gas drilling projects.

Environmental Protection and Other Industries

The production line processes bentonite into granules for water treatment (adsorbing heavy metals and pollutants), waste treatment (binding solid waste), and civil engineering (waterproof blankets). It realizes the recycling of bentonite resources and meets environmental protection policy requirements.

How to Customize a Complete Bentonite Granulator Production Line?

Every enterprise has different production needs (scale, product type, budget), so customizing a suitable complete bentonite granulator production line is crucial. The following steps help you obtain a tailored solution:

Clarify Production Requirements

First, determine your production scale (daily/annual output), product type (cat litter, foundry binder, etc.), granule size (1-8mm adjustable), and raw material characteristics (bentonite type, moisture content, viscosity). For example, if producing bentonite cat litter, focus on granule smoothness and absorbency; if producing foundry binders, prioritize granule strength and heat resistance.

Choose the Right Granulation Method

Select the granulator type according to your needs: ① Disc granulator: Suitable for small to medium-scale production, low investment, and round granules, ideal for cat litter and soil conditioners. ② Roller press granulator: Suitable for large-scale dry granulation, no water/binder needed, ideal for foundry binders and drilling additives. ③ Extrusion granulator: Suitable for cylindrical granules, high granulation rate, ideal for cat litter and small-scale production.

Determine Equipment Configuration

According to production scale and product requirements, configure the corresponding pretreatment, mixing, drying, cooling, and packaging equipment. For example, small-scale production (1-5t/h) can choose a simple disc granulator line with basic dust treatment; large-scale production (10t/h above) needs a roller press granulator line with full-automatic control and advanced environmental protection systems.

Cooperate with Professional Manufacturers

Choose manufacturers with rich experience in bentonite granulation equipment, who can provide on-site investigation, formula guidance, and customized design. Professional manufacturers can optimize the process flow according to your site size and budget, ensuring that the production line is efficient, stable, and cost-effective. At the same time, check the manufacturer’s after-sales service (installation, commissioning, training, spare parts supply) to avoid production interruptions caused by equipment failures.

Key Factors to Consider When Choosing a Complete Bentonite Granulator Production Line

To ensure that the production line meets your long-term needs and brings stable returns, pay attention to the following key factors when selecting:

Equipment Quality and Durability

Bentonite is highly corrosive and abrasive, so the equipment components must be made of wear-resistant, corrosion-resistant materials (such as wear-resistant alloy steel, rubber linings, fiberglass linings). Check the quality of core components (granulator, dryer, mixer) and the manufacturer’s production process to ensure long-term stable operation.

Production Efficiency and Granulation Quality

Focus on the production capacity and granulation rate of the line. The granulation rate should be no less than 90%, and the granules should be uniform in size and high in strength. Ask the manufacturer to provide on-site operation videos or user cases to verify the production effect and product quality.

Environmental Protection and Energy-Saving Performance

With the tightening of global environmental protection policies, the production line must meet environmental emission standards (dust, wastewater). Choose lines with complete dust and wastewater treatment systems, and energy-saving equipment to reduce long-term operating costs and avoid environmental fines.

After-Sales Service and Technical Support

A complete after-sales service system is essential for industrial equipment. Choose manufacturers that provide on-site installation, commissioning, operator training, and 24-hour technical support. Timely supply of spare parts can reduce downtime losses and ensure continuous production.

Cost-Effectiveness

Do not only pursue low prices—comprehensively compare the equipment’s performance, service life, after-sales service, and operating costs. A high-quality production line may have a higher initial investment but can save maintenance and energy costs in the long run, bringing higher returns.

Future Trends of Complete Bentonite Granulator Production Line

With the continuous development of the bentonite industry and technological progress, complete bentonite granulator production lines will show the following development trends, enhancing the professionalism and forward-looking of the article and improving Google search rankings:

• Intelligent Upgrade: The entire line will integrate IoT, big data, and AI technologies, realizing real-time monitoring, remote operation, and fault early warning. The system can automatically adjust production parameters according to raw material characteristics and product quality, improving production efficiency and stability.

• More Focus on Environmental Protection: Closed-loop production will become the mainstream, with zero dust leakage and zero wastewater discharge. New environmental protection technologies (such as advanced dust collectors, wastewater recycling systems) will be widely used to meet stricter global environmental standards.

• Process Optimization for High-Viscosity Materials: R&D will focus on solving the pain points of bentonite granulation, such as sticking and uneven granulation, improving the adaptability of the line to different types of bentonite (sodium-based, calcium-based) and high-viscosity raw materials.

• Customization and Diversification: With the increasing demand for personalized bentonite products, the line will be more flexible, able to quickly adjust the formula and granulation parameters to produce customized products for different industries, helping enterprises expand market share.

Conclusion

A complete bentonite granulator production line solution is the key to realizing the industrialization and high-value utilization of bentonite. It solves the pain points of powder bentonite (dust, inconvenience, low value) and provides a one-stop solution for enterprises to produce high-quality bentonite granules efficiently, environmentally, and stably. Whether you are a small cat litter factory, a medium-sized bentonite processing enterprise, or a large-scale foundry, a tailored complete bentonite granulator production line can help you reduce costs, improve efficiency, and enhance market competitiveness.

This article comprehensively introduces the core content of a complete bentonite granulator production line, from components and process flow to advantages and application scenarios, helping you make an informed decision. If you need a customized solution, technical parameters, or on-site consultation, please contact our professional team to get one-stop support for bentonite granulation equipment, and let us help you achieve sustainable development in the bentonite industry.
