Crawler Type Compost Turner Fermentation Fertilizer Making Machine
- Information

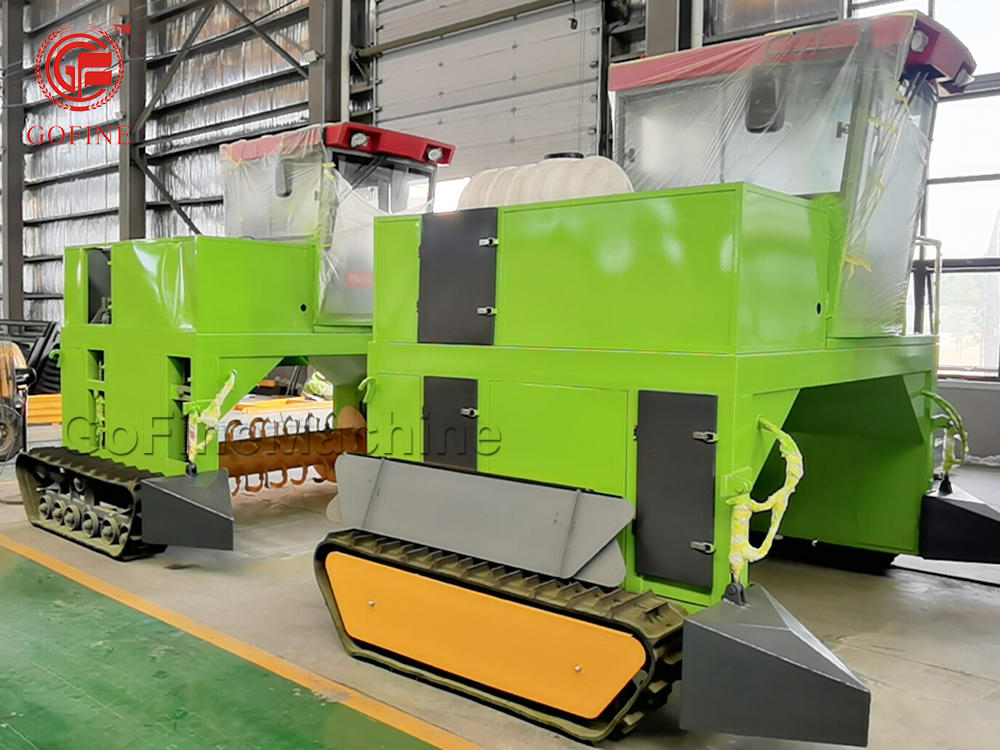

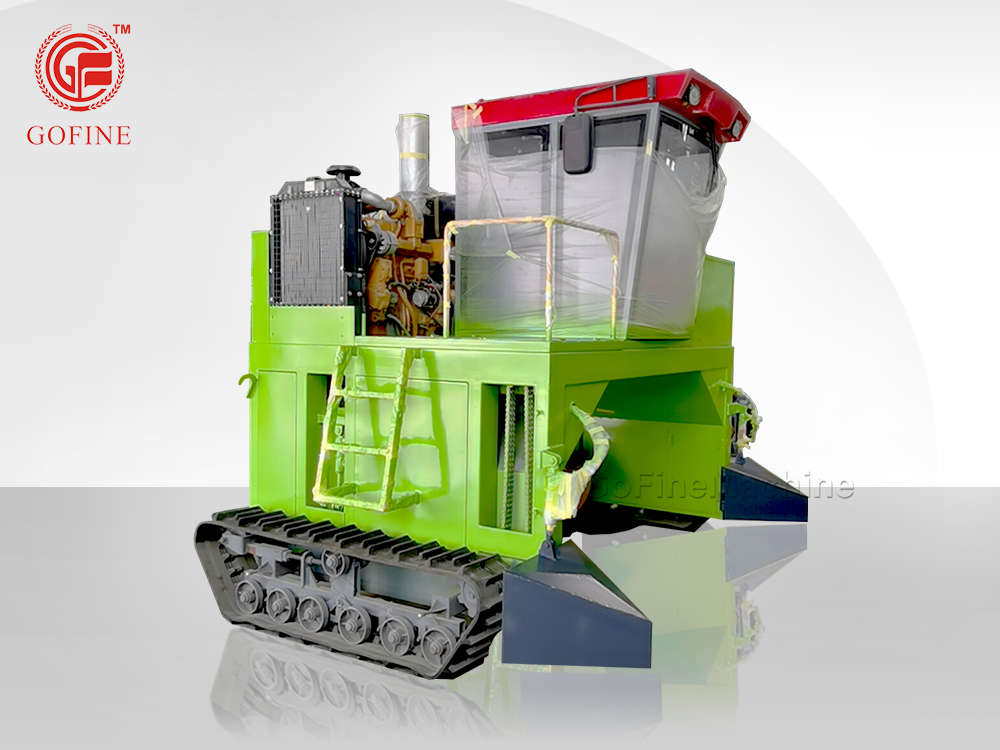

Introduction of Crawler Type Compost Turner Fermentation Fertilizer Making Machine

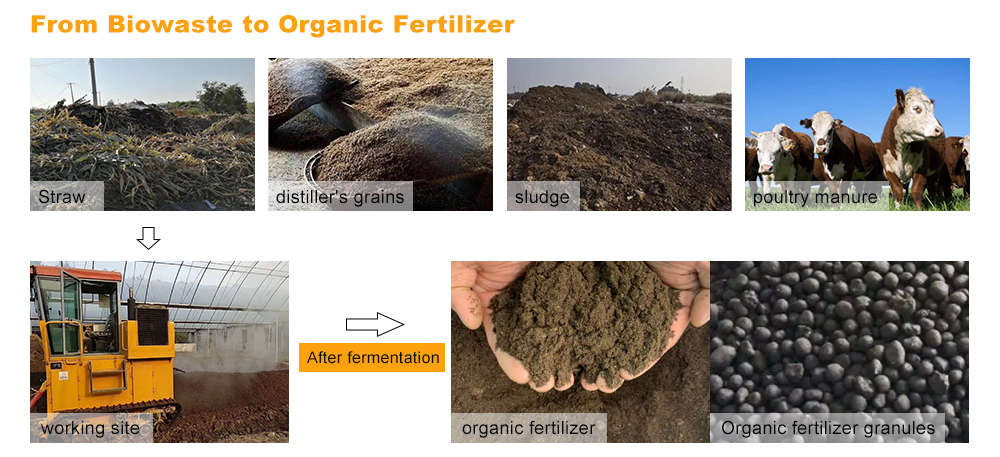

The crawler compost turner is a drivable and mobile compost fermentation equipment. Organic waste such as poultry manure, straw, sugar residue, sludge, etc. can be made into bio-organic fertilizer through the principle of aerobic fermentation. It can achieve 1 day of heating, 3-5 days of deodorization and sterilization, and completely kill the eggs and bacteria in the feces. The crawler-type compost turning machine has strong power and adopts the ground composting fermentation mode. It can work in an open outdoor field or in a workshop shed without building a groove.
Feature of Crawler Type Compost Turner Fermentation Fertilizer Making Machine
1. Not limited by the site, composting can be done indoors and outdoors.
2. There is no dead angle in the turning and throwing of the drum, and the output is large and the efficiency is high.
3. Equipped with a cab, it can move forward, turn around, and turn, and the operation is convenient.
4. Harmless and synergistic treatment.
5. Diesel engine has strong power and low energy consumption.
Working Process of Crawler Type Compost Turner Fermentation Fertilizer Making Machine
The crawler type compost turner rides on the pre-stacked long strip materials, and the direction is controlled by the staff in the cab when working. The rotary knife shaft mounted under the frame is equipped with hydraulic lifting function, which can evenly turn and throw materials without dead ends. The materials after turning and throwing do not need to be repaired and adjusted, and are automatically stacked into strips, with high working efficiency.
Technical Parameter of Crawler Type Compost Turner Fermentation Fertilizer Making Machine
| Model | Capacity (m³/h) | Compost turning width(mm) | Power (hp) | Dimensions (mm) | Weight (kg) |
| FDJ - L2600 | 900~1100 | 2600 | 116 | 3800x2700x3000 | 4000~4500 |
| FDJ - L3000 | 1200~1300 | 3000 | 156 | 4200x2700x3000 | 4700~5000 |

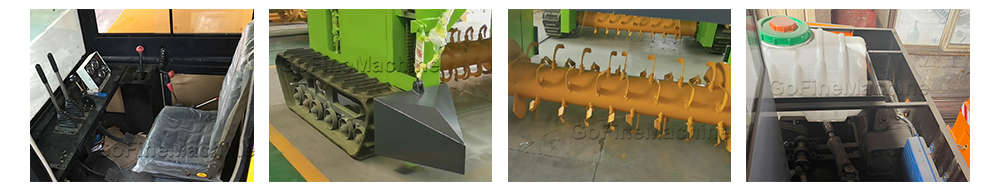

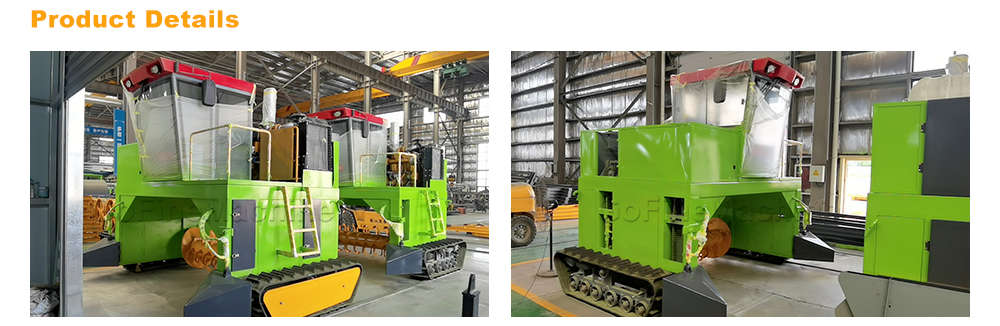

Product Details of Crawler Type Compost Turner Fermentation Fertilizer Making Machine

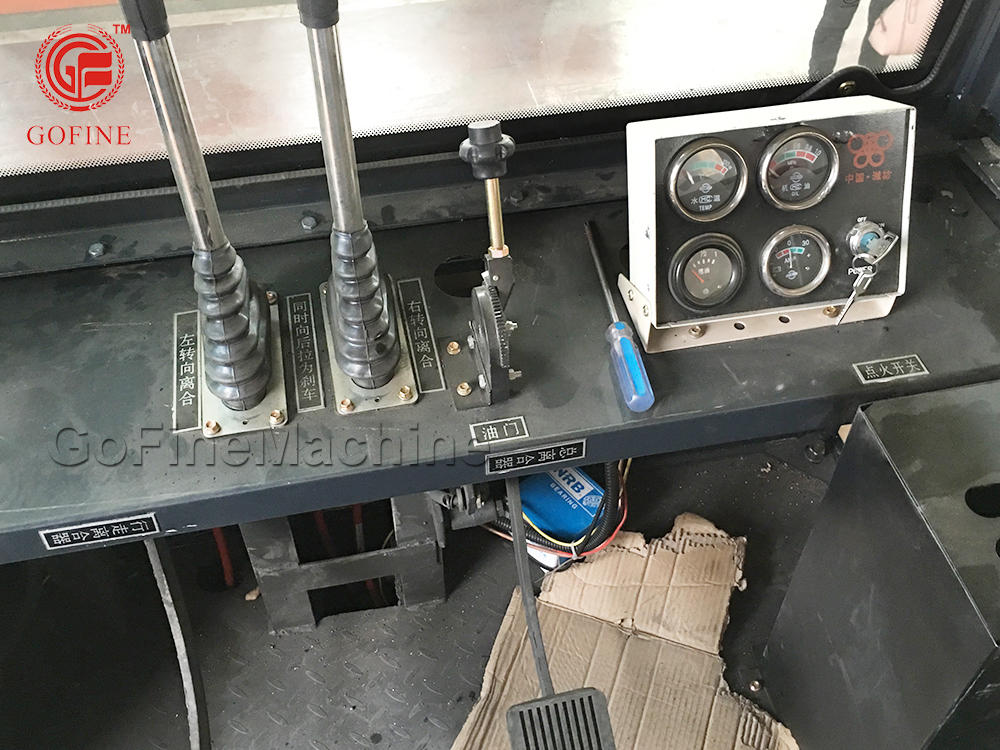

1. Driver cab: High degree of automation, pull-rod steering wheel, easy to operate.
2. Track Chain: Made of resin rubber, it runs smoothly. The front is equipped with a hydraulic lifting device, which can crush materials.

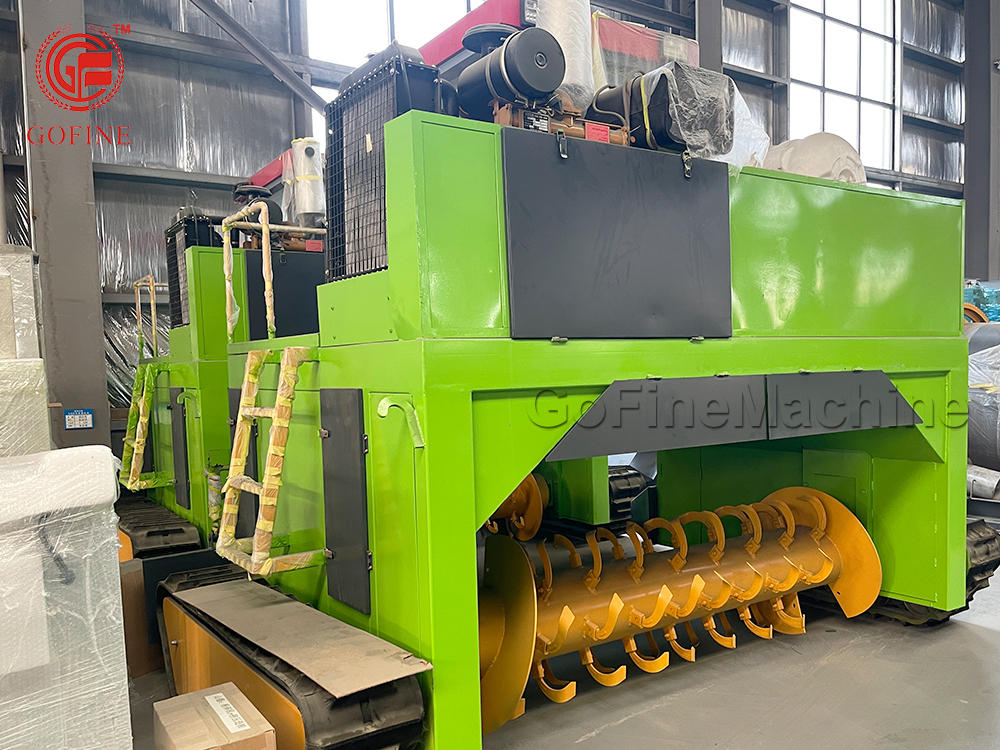

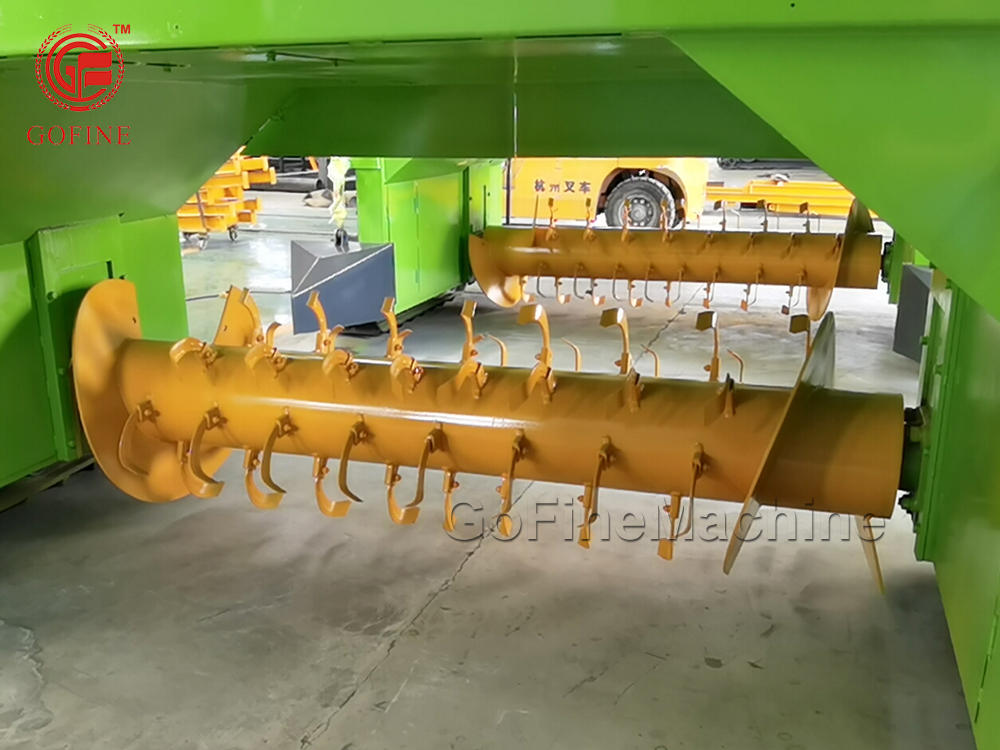

3. Rotating Knife Shaft: Efficient turning and throwing without dead ends, adjustable depth, suitable for various stacking.
4. PV barrel: When the fermented material needs to be replenished with water, water or liquid bacteria can be added during the working process.
5. Motor: Diesel motor has low energy consumption and is more energy-efficient than traditional equipment.

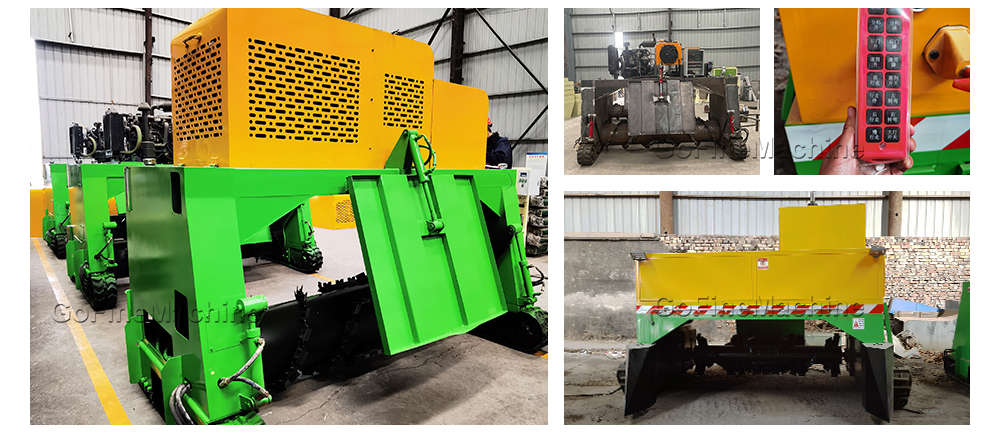

Remote Control Type Crawler Turner Fermentation Fertilizer Making Machine
Without manual driving, the crawler compost turner can be remotely controlled by the remote control to perform compost turn and fermentation treatment on the materials.

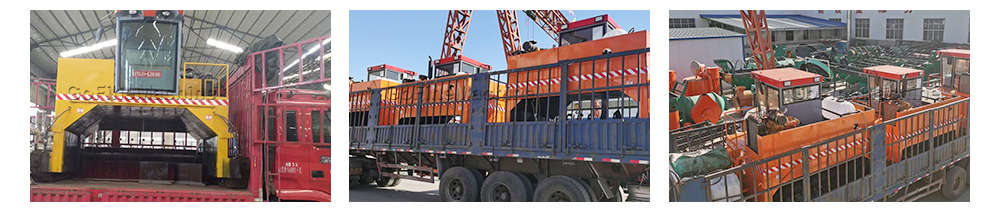

Packaging & Shipping of Crawler Type Compost Turner Fermentation Fertilizer Making Machine
