Horizontal Compost Fermentation Tank Organic Fertilizer Making Machine
- Information

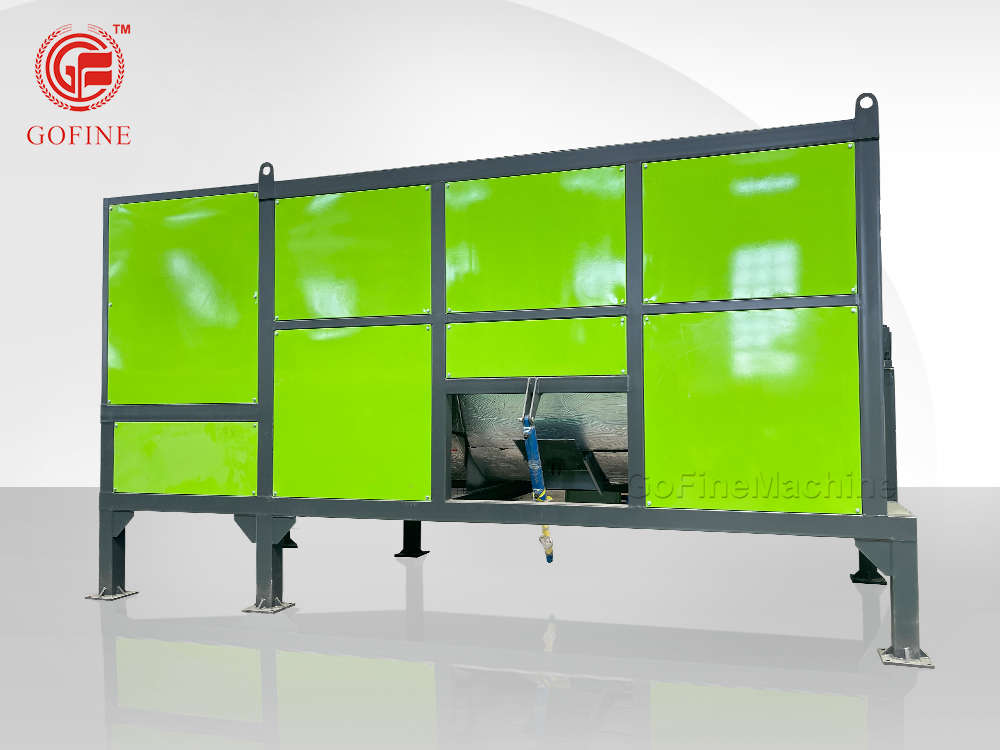

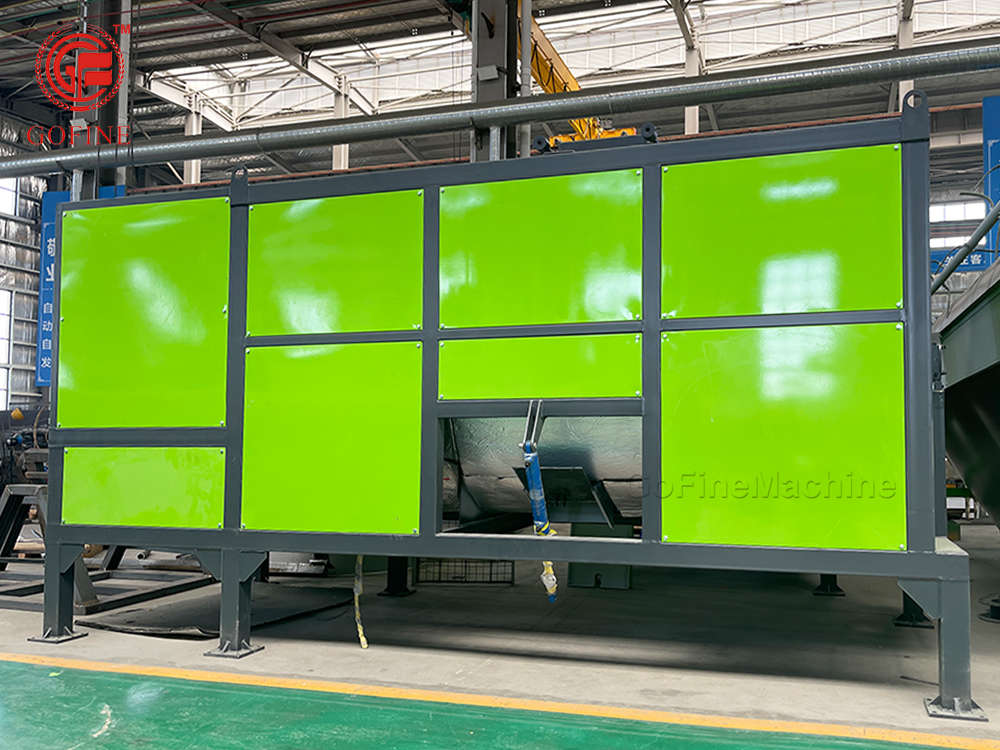

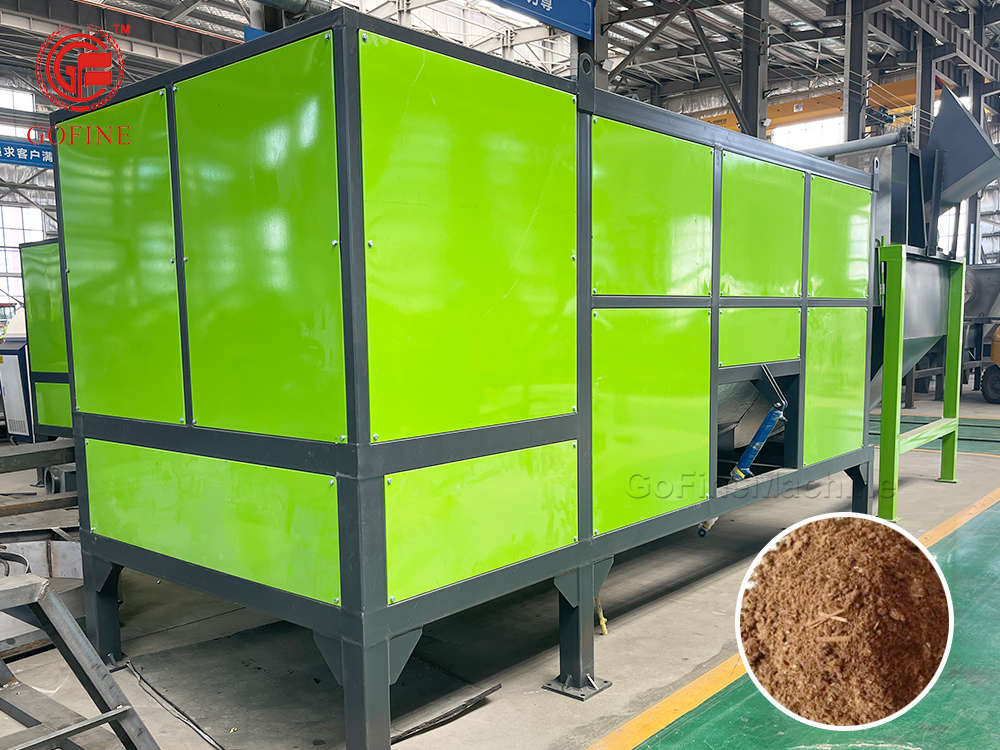

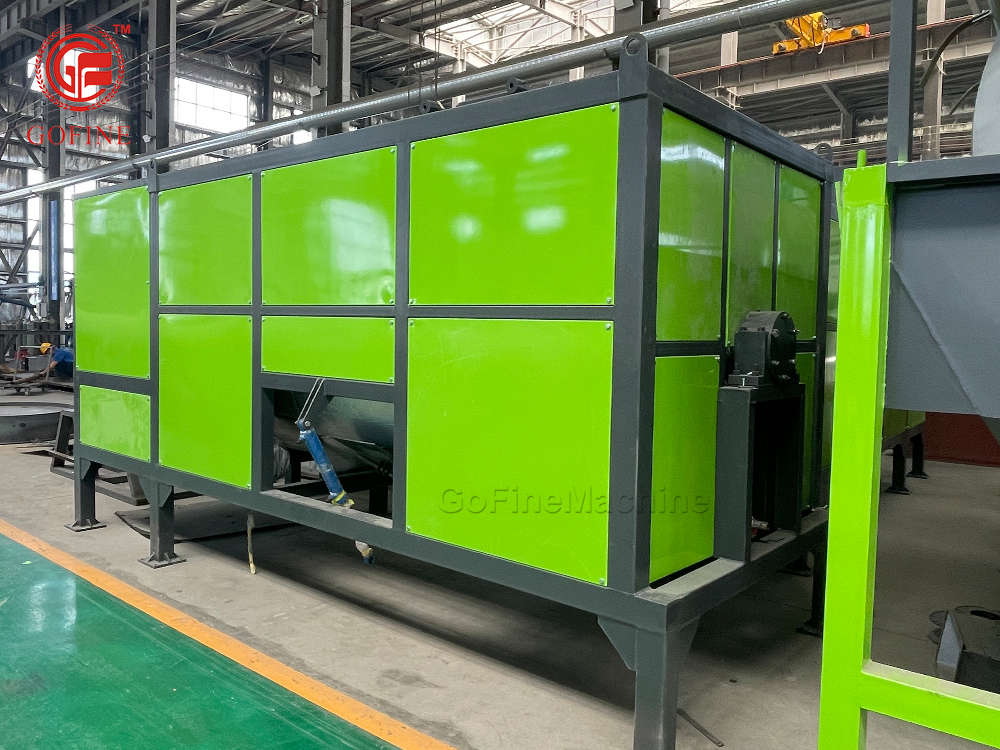

Introduction of Horizontal Compost Fermentation Tank Organic Fertilizer Making Machine
The horizontal fermenter can ferment organic waste and process it into organic fertilizer. The shape is rectangular, the bottom is flat, and the floor space is small. Closed fermentation is adopted, and harmless treatment can be completed in 10 hours. The heat-conducting oil inside the equipment adopts imported high-quality high-temperature heat-conducting oil as the constant-temperature calorific value transfer medium, with stable performance and high heat utilization rate. At the same time, it is equipped with a PLC control system, and the inner plate is made of stainless steel, which is anti-corrosion. It is the best choice for the vast breeding industry, circular agriculture, and ecological agriculture to realize the utilization of waste resources.
Feature of Horizontal Compost Fermentation Tank Organic Fertilizer Making Machine
1. Small footprint: horizontal layout, small footprint and large fermentation capacity.
2. Uniform ventilation: Horizontal placement facilitates more uniform ventilation of the waste in the tank and improves fermentation efficiency.
3. High-temperature fermentation: closed high-temperature fermentation, the temperature can be adjusted to a constant temperature of 60-100°C.
4. Anti-corrosion: The material contact part is made of stainless steel, which has high anti-corrosion and long service life.
5. Automation: Equipped with PLC control system and temperature sensor, it can work continuously.
Working Process of Horizontal Compost Fermentation Tank Organic Fertilizer Making Machine
The biological waste is transported into the tank, and the eggs and pathogenic bacteria of diseases and insects are completely killed by high temperature. Under the action of high temperature, the organic matter and beneficial bacteria in the feces undergo rapid decomposition and corrosion for 3 hours to achieve the purpose of aerobic fermentation.
Technical Parameter of Horizontal Compost Fermentation Tank Organic Fertilizer Making Machine
| Model | Capacity (m³) | Power (kw) | Feeding screw specification | Size (m) |
| FW5000 | 5 | 32.6 | 325x6 | 5x1.7x2 |
| FW6000 | 6 | 32.6 | 325x6 | 5x1.8x2.1 |
| FW8000 | 8 | 47.6 | 425x6 | 5.5x1.8x2 |
| FW10000 | 10 | 55.1 | 425x6 | 6.2x2x2.4 |
| FW15000 | 15 | 59 | 425x6 | 5.5x3.2x2.4 |

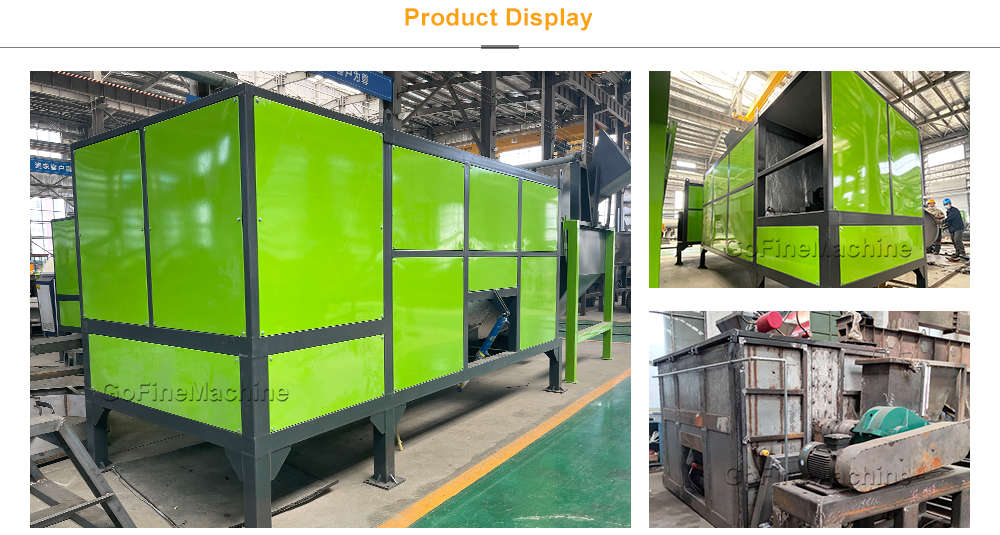

Product Details of Horizontal Compost Fermentation Tank Organic Fertilizer Making Machine
1. Mixing: The motor drives the reducer to drive the stirring rotor in the fermentation chamber, which can make various materials evenly stirred.
2. Heating device: equipped with 10 heating rods to achieve rapid and uniform heating. The temperature sensor will transmit the oil temperature and the temperature in the fermentation chamber to the PLC control system in real time.
3. Fermentation aeration fan: realize rapid aeration of materials, and at the same time realize rapid reproduction of bacteria in materials.
4. Heat insulation treatment: The exterior of the tank is made of polyurethane as an insulation layer, which is less affected by the external temperature and can be fermented gently throughout the year.
5. Stainless steel material: The parts in contact with the material in the fermentation chamber are made of high-quality carbon steel and stainless steel, which have good anti-corrosion performance and long service life.
