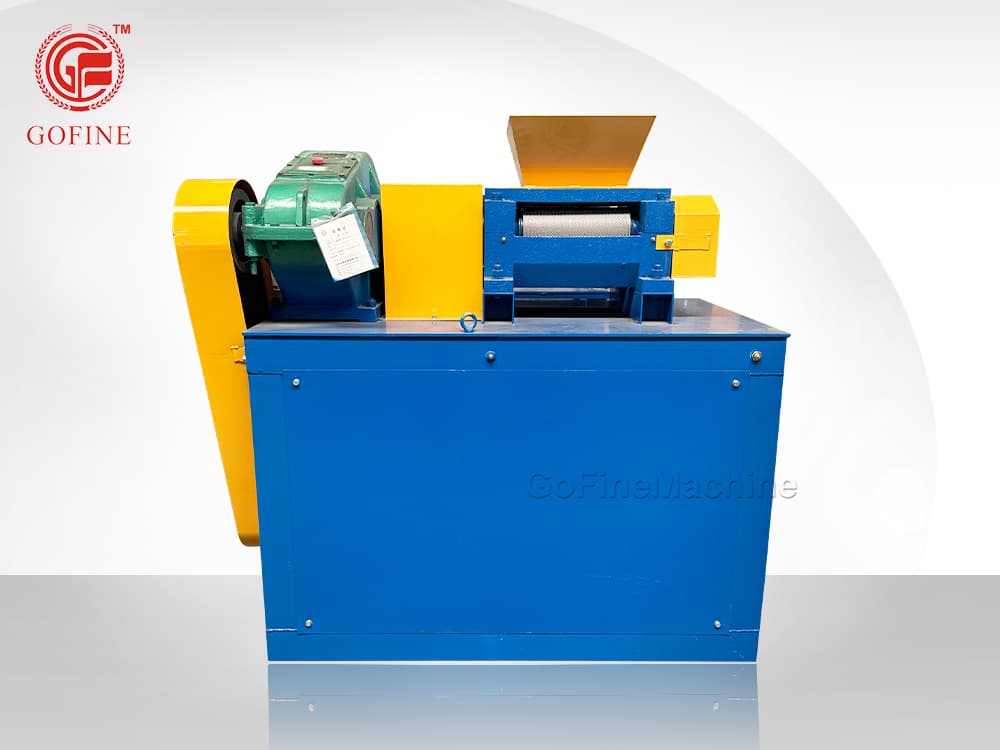

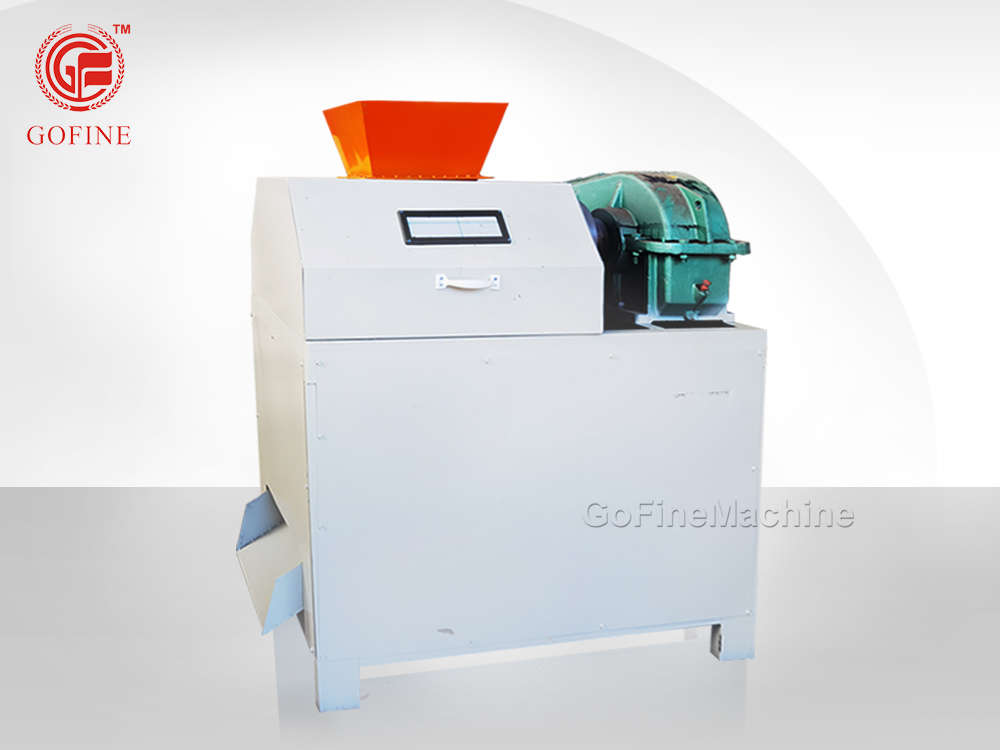

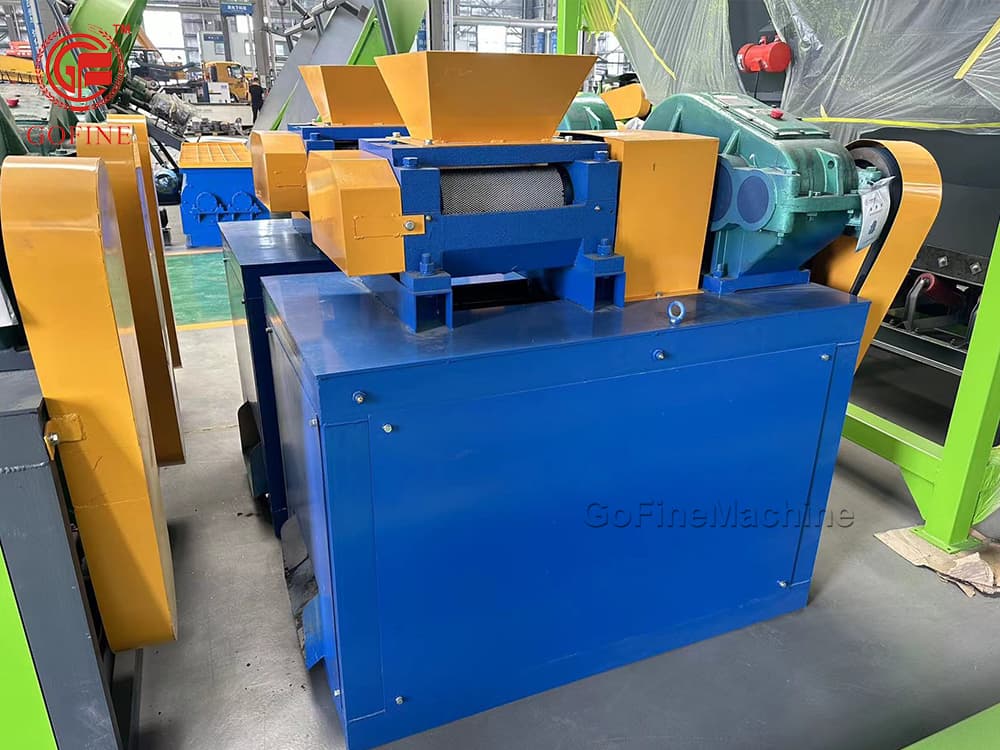

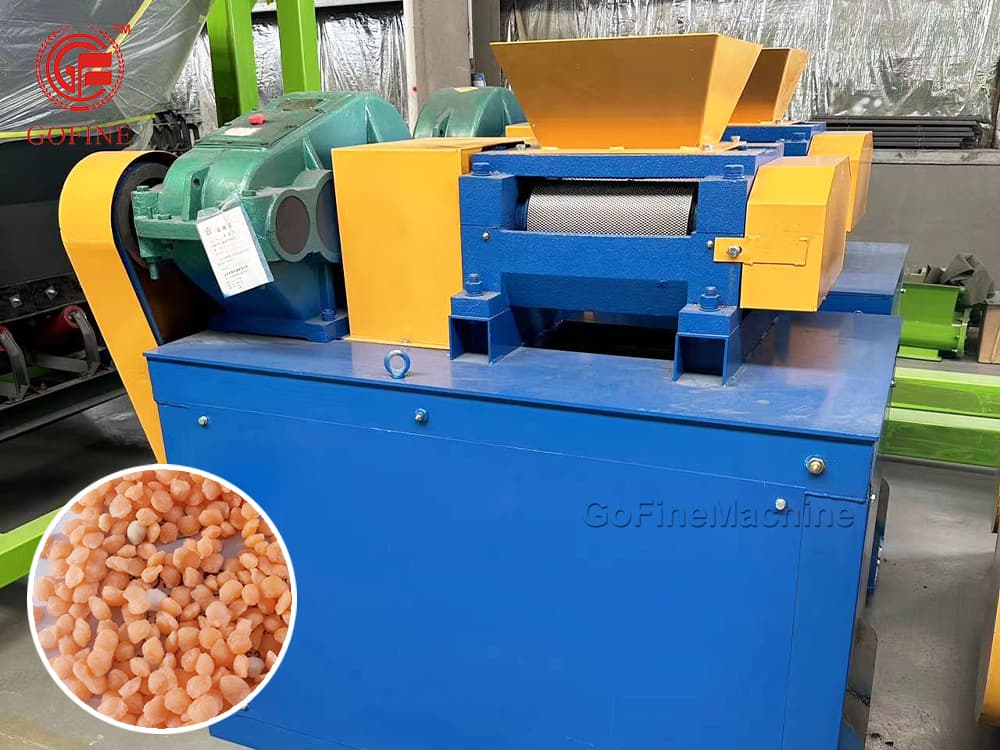

Double Roller Granulator Fertilizer Making Machine
- Information

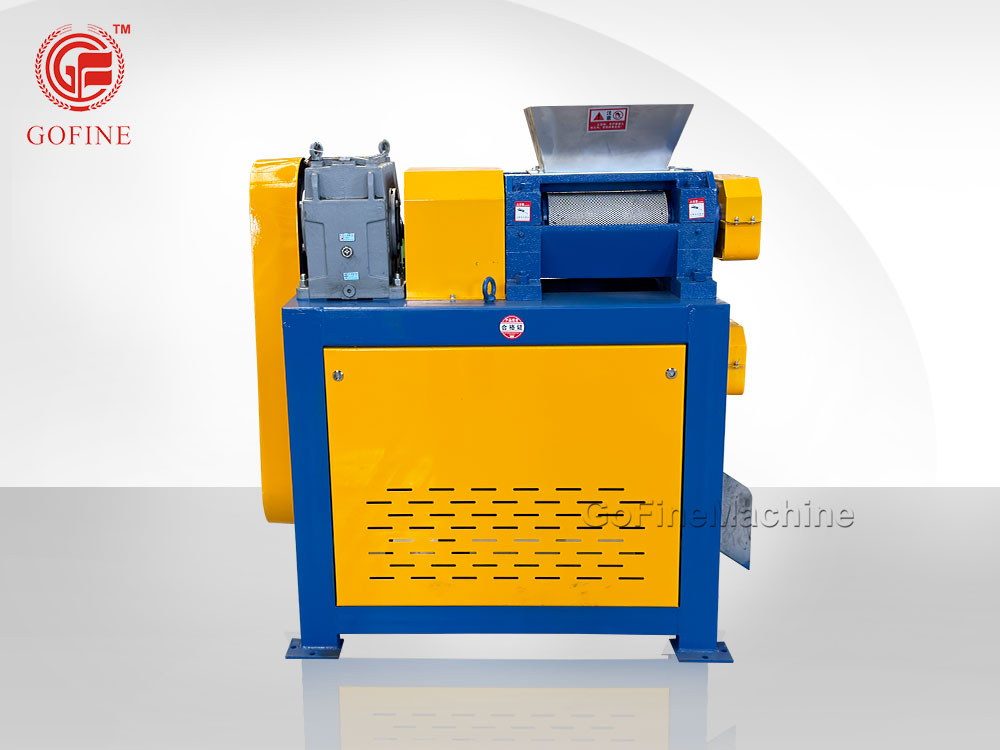

Introduction of Double Roller Granulator Fertilizer Making Machine
The Double roller extrusion granulator is a dry granulation equipment that can quickly extrude and separate materials at room temperature and process them into oblate particles. Compared with other granulation equipment, no drying measures are required, which simplifies the granulation process. The return rate is very low, no need to add adhesives. The double-roll extrusion granulator is widely used in granule processing in pharmaceutical, food, chemical and other industries, with small investment and high production efficiency. Combined with other related equipment, it can form an automatic organic fertilizer or compound fertilizer granule production line.
Feature of Double Roller Granulator Fertilizer Making Machine
1. Particles are formed at one time, no need to add binder
2. Granulation at room temperature without drying process
3. By adjusting the double roller pressure and size, the particle size and hardness can be changed
4. Small footprint, low energy consumption, good anti-corrosion effect
Working Process of Double Roller Granulator Fertilizer Making Machine
The material enters through the upper conical material opening, and the air between the material molecules is expelled by the action of pressure. Rely on the force between molecules to form a high-hardness ball cake, and then fall into the lower part of the sawtooth crumbs. The ball cake particles are separated by crushing, and then enter the screen, and the qualified particles flow out from the bottom outlet.
Technical Parameter of Double Roller Granulator Fertilizer Making Machine
| Model | Production (t/h) | Power (kw) | Pressure roller specifications | Finished product specifications | Reducer model | Material moisture |
| DZJ-I-1.0 | 1-1.5 | 15 | Φ150x220 | Φ2.5-Φ10 | ZQH350 | 2%-5% |
| DZJ-I-2.0 | 1.5-2.5 | 18.5 | Φ150x300 | Φ2.5-Φ10 | ZQH400 | 2%-5% |
| DZJ-I-3.0 | 2.5-3.5 | 22 | Φ186x300 | Φ2.5-Φ20 | ZQH400 | 2%-5% |
| DZJ-I-4.0 | 3.5-4.5 | 45 | Φ300x300 | Φ2.5-Φ30 | ZQH500 | 2%-5% |
| DZJ-II-1.0 | 1-2 | 15 | Φ150x220 | Φ2.5-Φ10 | customized | 2%-5% |
| DZJ-II-2.0 | 1.5-2.5 | 18.5 | Φ150x300 | Φ2.5-Φ20 | customized | 2%-5% |
| DZJ-II-3.0 | 2.5-3.5 | 22 | Φ186x300 | Φ2.5-Φ10 | customized | 2%-5% |

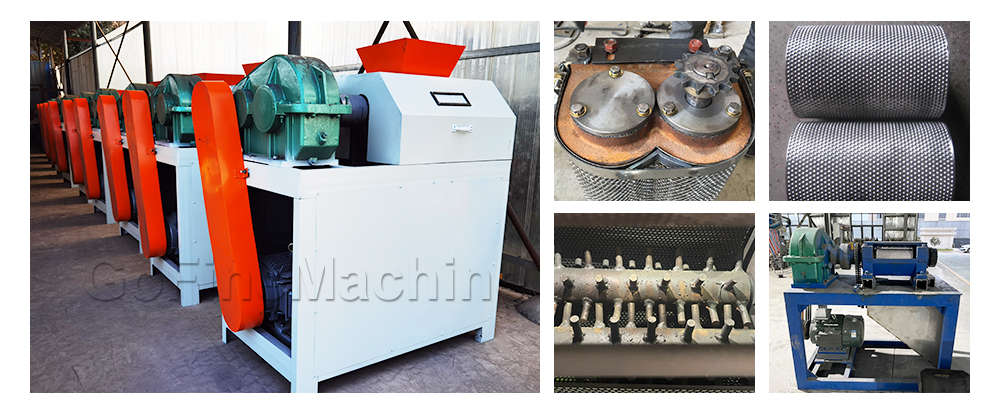

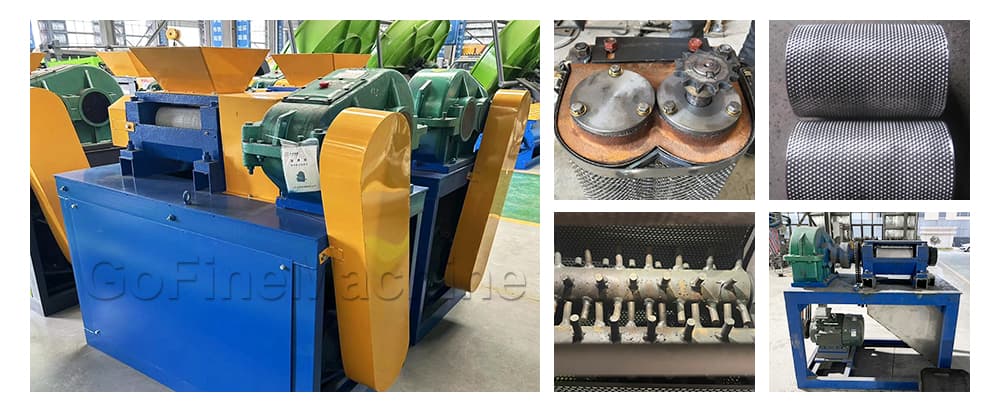

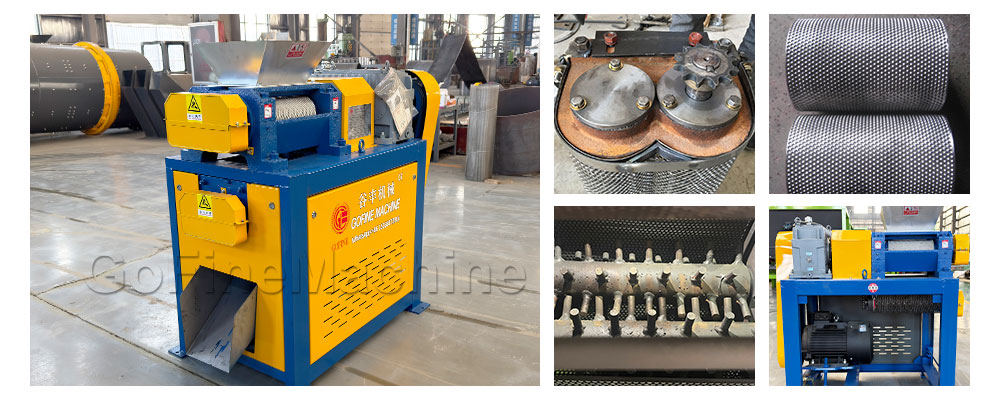

Product Details of Double Roller Granulator Fertilizer Making Machine

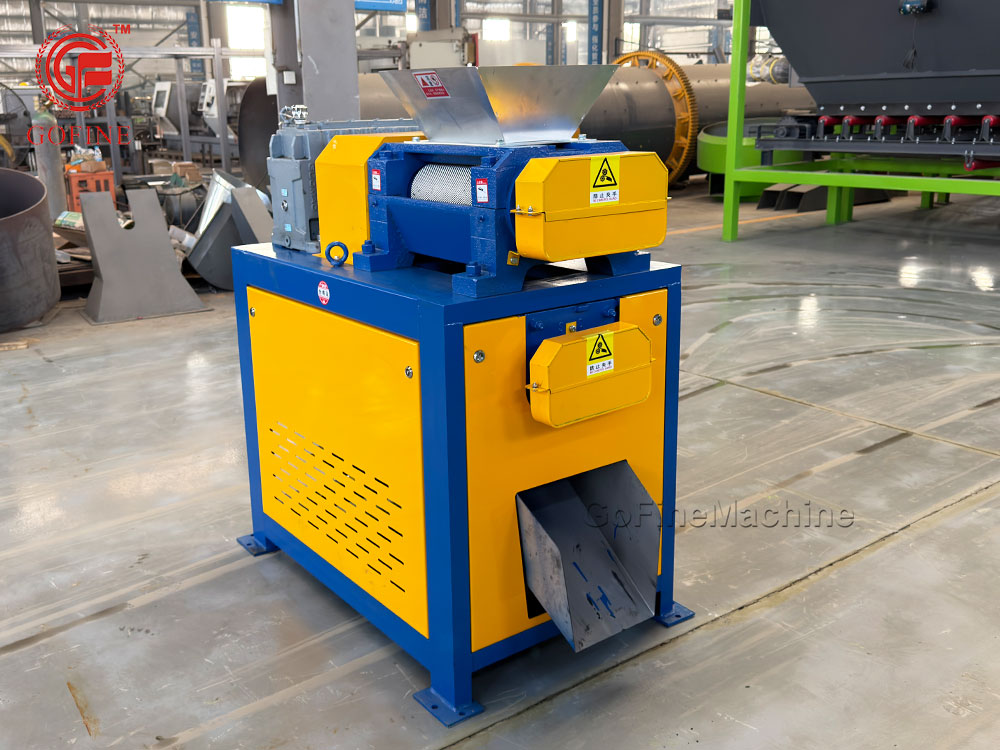

1. Rack Section：It is welded by high-quality carbon steel, stainless steel and channel steel, and the structure of the whole machine is stable and durable.

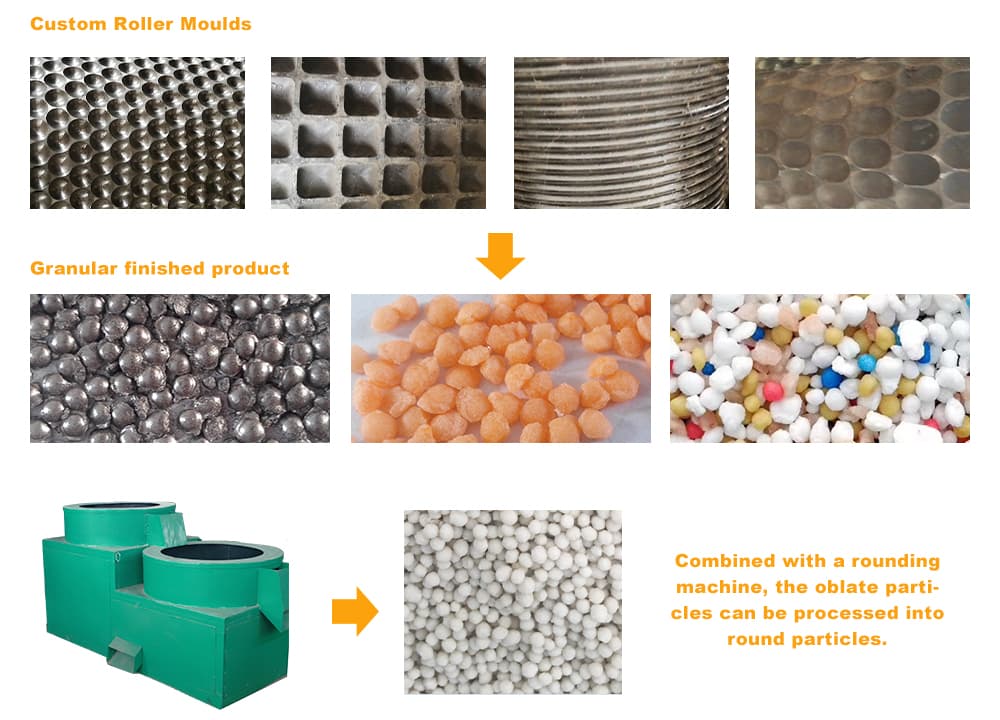

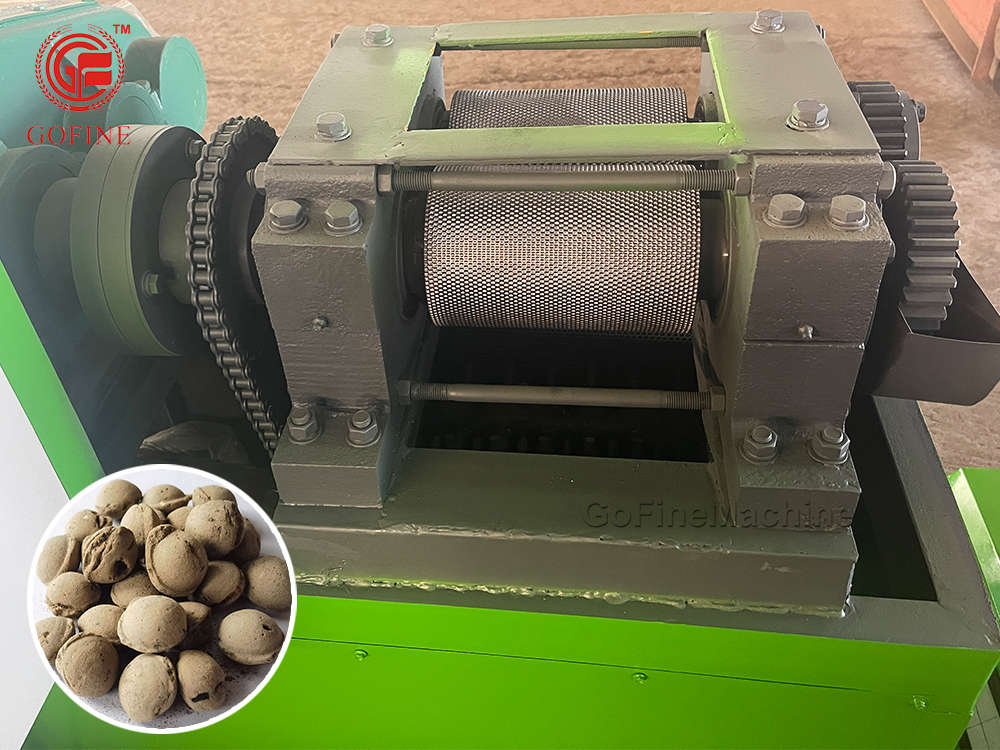

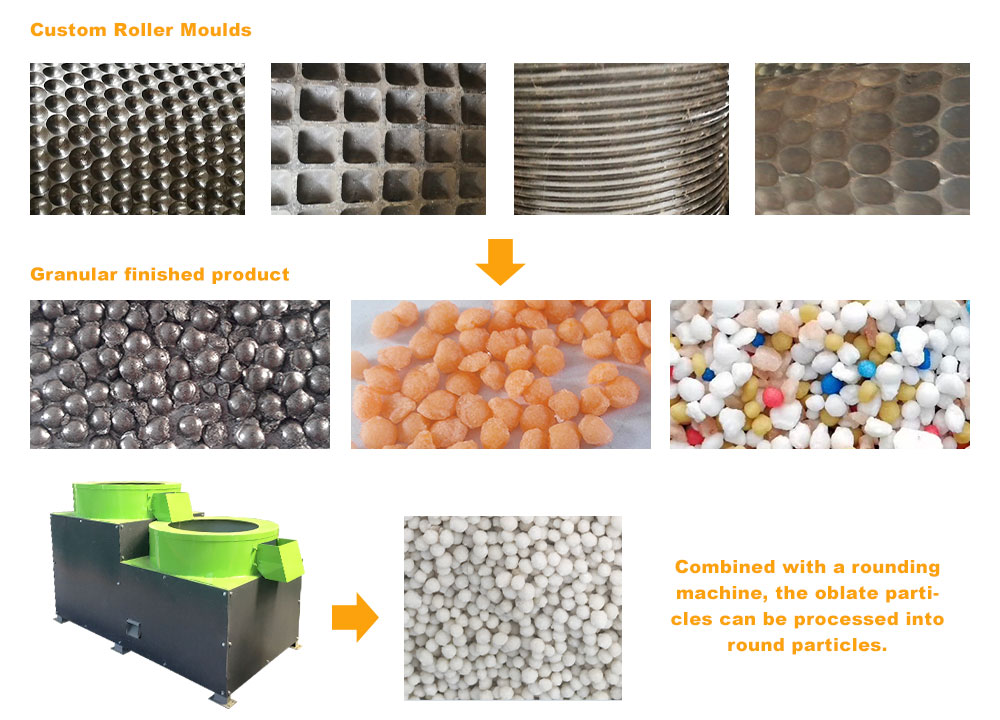

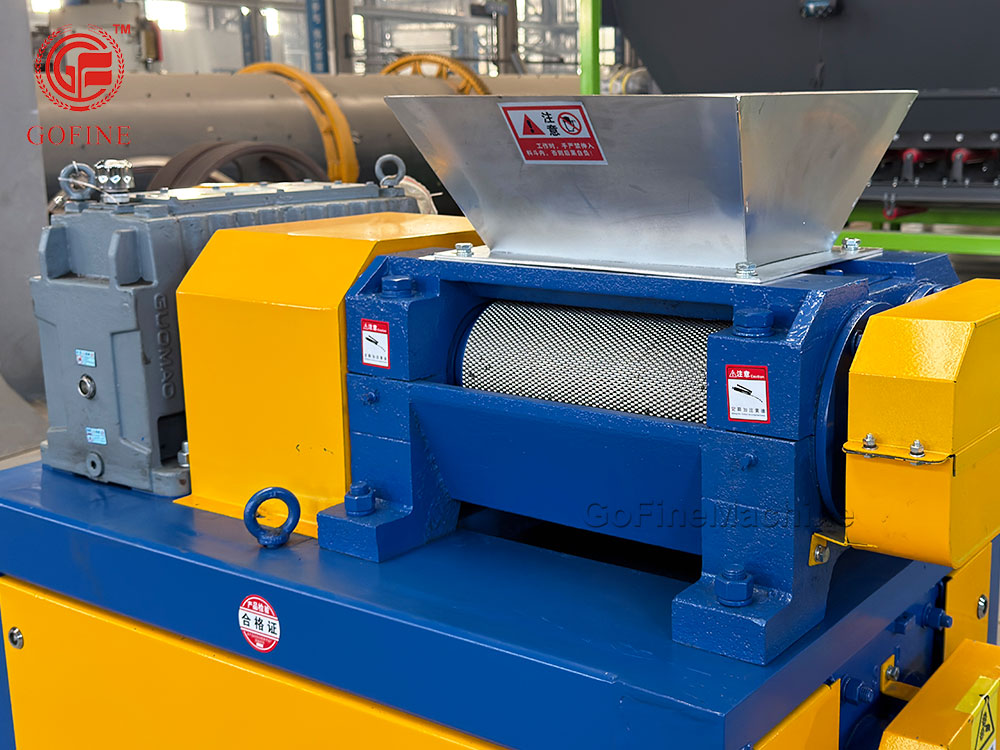

2. Stainless steel roller：By adjusting the rollers, changing the particle size and hardness, it supports customization.

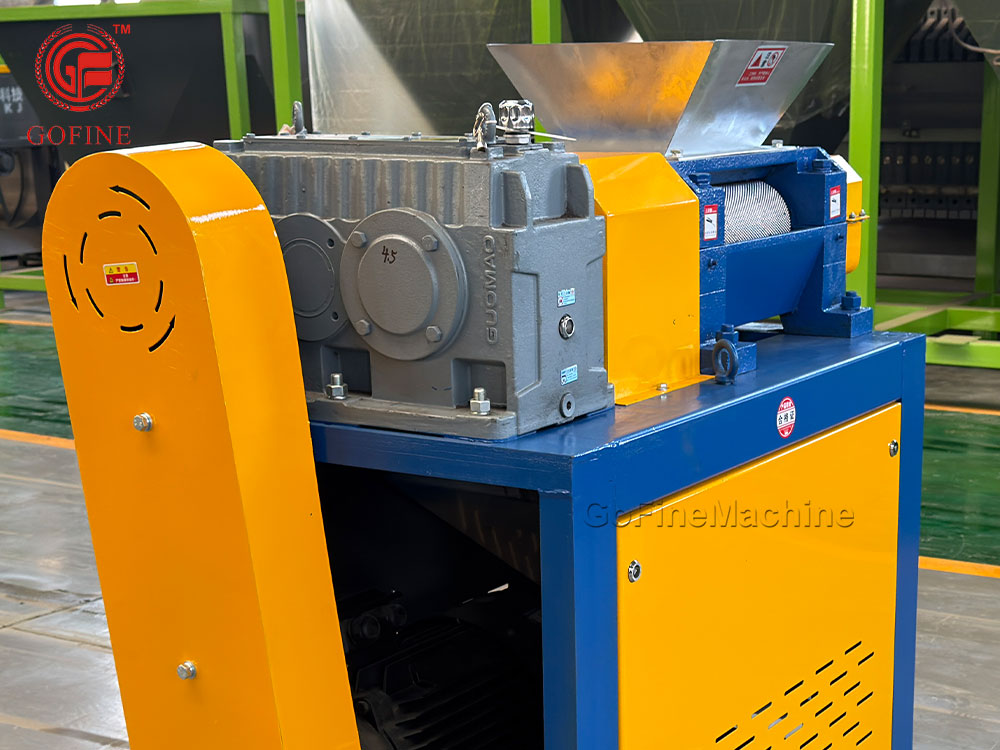

3. Motor part：The performance of the motor is stable, and Siemens motors can be customized.

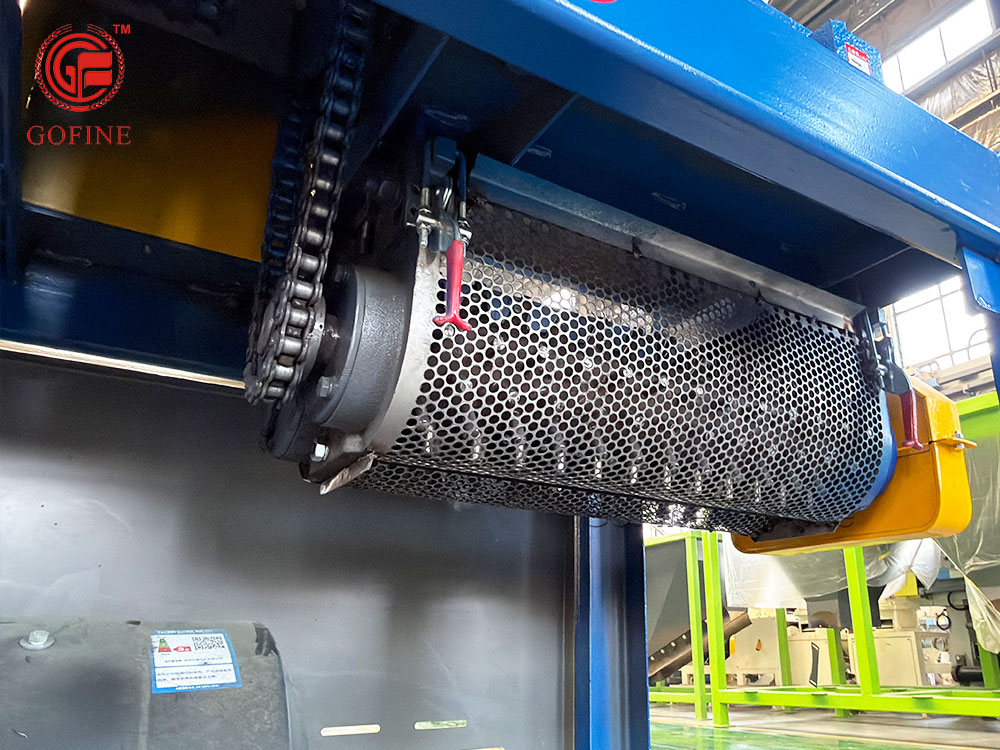

4. Mixing shaft：The ball cake can be separated quickly, and the production efficiency is high.

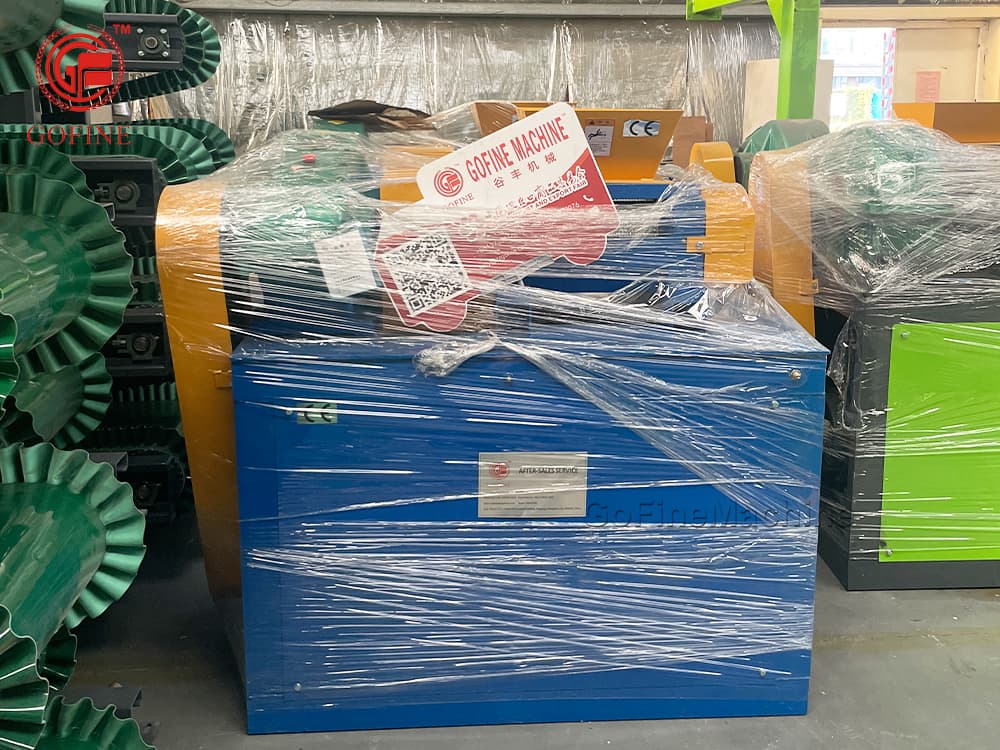

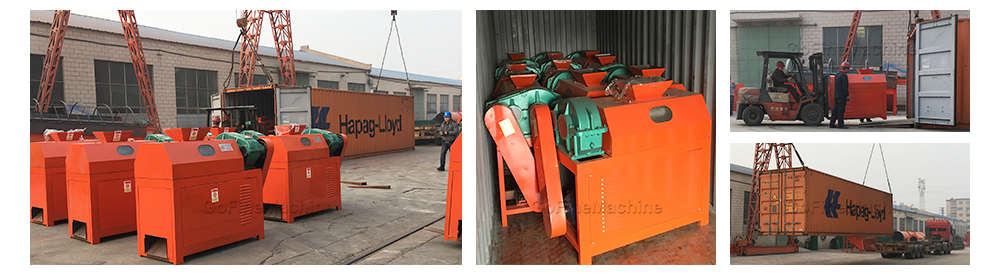

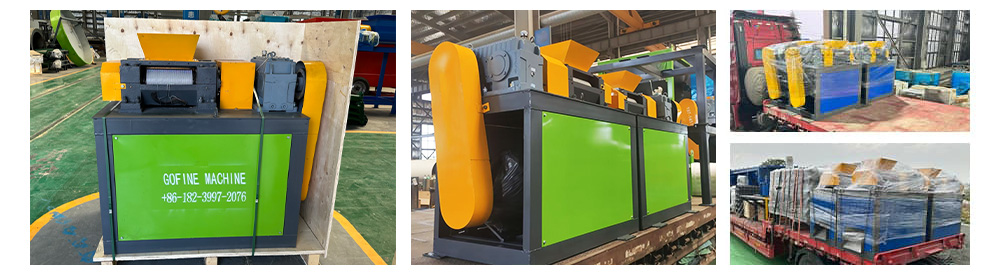

Packaging & Shipping of Double Roller Granulator Fertilizer Making Machine
