Bentonite Cat Litter Disc Granulator Fertilizer Making Machine
- Information

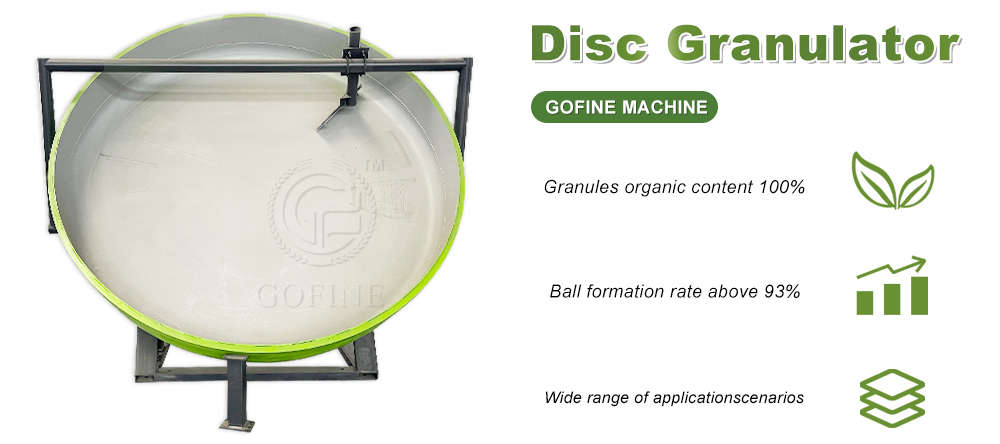

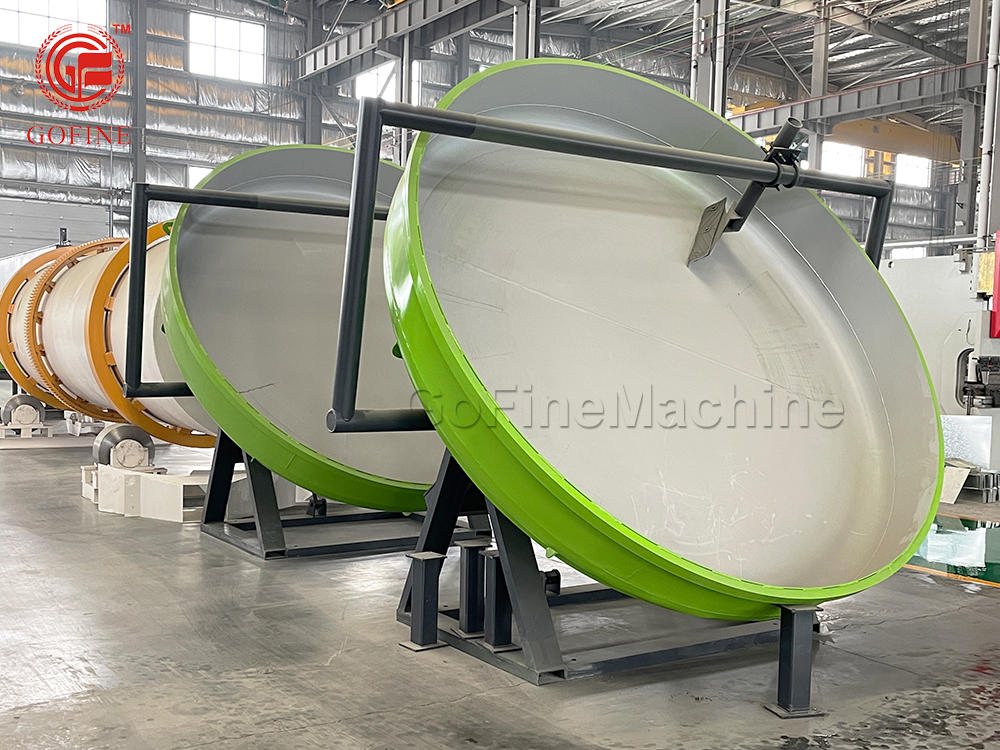

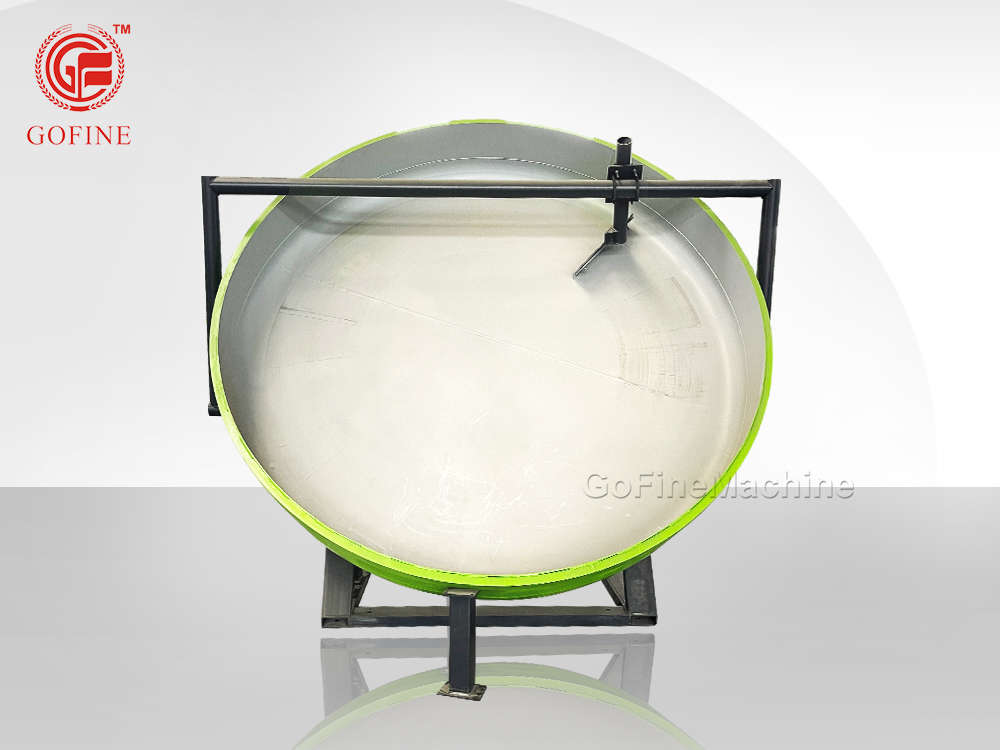

Introduction of Bentonite Cat Litter Disc Pan Granulator Fertilizer Making Machine
The company's best-selling cat litter disc granulator. The whole machine adopts arc-shaped structure, and the ball forming rate is as high as 93%. It is composed of main engine, turntable, feeding device, governor and other parts, with simple structure and convenient operation. The size, shape and hardness of the prepared cat litter particles can be adjusted by adjusting the rotating speed of the turntable, the feeding speed and the amount of wetting agent added. The finished cat litter particles are uniform in size and density, and are not easy to gelatinize or delaminate. The cat litter disc granulator can not only make cat litter granules, but also produce various spherical granule products such as organic fertilizer granules, laundry fragrance beads, desiccant and so on. A variety of sizes and specifications support customization to meet different output requirements. It is a multi-purpose, high-efficiency granulation equipment.
Feature of Bentonite Cat Litter Disc Pan Granulator Fertilizer Making Machine
1. Efficient production: the granulation is carried out by rotating the circular granulation disc to realize continuous production
2. High ball forming rate: the ball forming rate is as high as 93%, and the finished product of cat litter particles is uniform and high in density
3. Low energy consumption: the transmission device can reduce energy consumption and has the effect of energy saving and environmental protection
4. Durable material: the inner lining is made of high-strength glass fiber, and the bottom of the board is reinforced with multiple radiant steel plates, which is anti-corrosion and durable, firm and non-deformable.
5. Easy maintenance: the cat litter disc granulator has a simple structure and is easy to clean and maintain
Working Process of Bentonite Cat Litter Disc Pan Granulator Fertilizer Making Machine

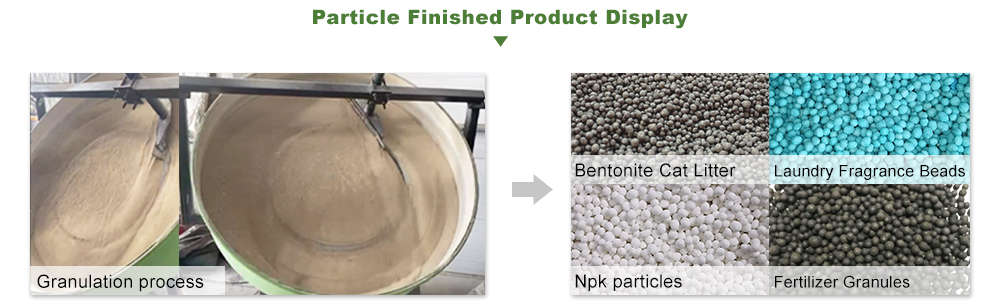

The working principle of cat litter disc granulation is to put the raw materials evenly into the turntable through the feeding device, and use the centrifugal force and friction generated by the turntable to make the raw materials closely stick together. As the granulation disc rotates continuously, the material rolls in the disc to form uniform spherical particles. Under the action of centrifugal force, the material is discharged through the side of the disc to realize continuous production. The main components of the disc granulator are as follows:

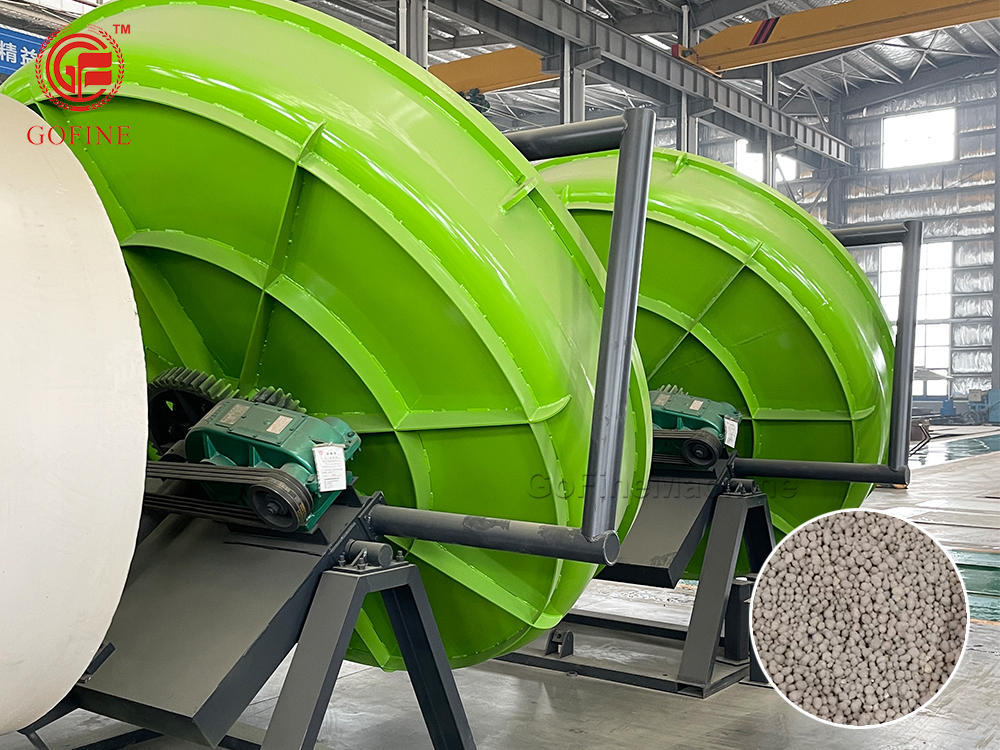

1. Motor: the motor runs smoothly and without noise. Support customized Siemens motors
2. Unpowered scraper: no power supply design reduces energy consumption and has good ball forming effect
3. Base: it is reinforced with multiple radiant steel plates, and the inclination angle of the granulation disc can be adjusted
Technical Parameter of Bentonite Cat Litter Disc Pan Granulator Fertilizer Making Machine
| Model | Diameter of pelletizing disc(mm) | Disc edge height(mm) | Volume(mm) | Rotating speed(r/min) | Motor power (kw) | Production capacity(t/h) |
| ZL10 | 1000 | 250 | 0.4 | 24 | 2.2 | 0.3-0.5 |
| ZL15 | 1500 | 300 | 1.1 | 22 | 5.5 | 0.5-0.8 |
| ZL18 | 1800 | 300 | 1.4 | 18 | 5.5 | 0.6-1.0 |
| ZL20 | 2000 | 350 | 1.8 | 18 | 7.5 | 0.8-1.2 |
| ZL25 | 2500 | 350 | 2.5 | 18 | 7.5 | 1.0-1.5 |
| ZL28 | 2800 | 400 | 3.3 | 18 | 11 | 1.0-2.5 |
| ZL30 | 3000 | 450 | 3.9 | 16 | 11 | 2.0-3.0 |
| ZL32 | 3200 | 500 | 4.3 | 13.6 | 15 | 2.0-3.5 |
| ZL36 | 3600 | 550 | 5.5 | 11.3 | 18.5 | 3.0-5.0 |
| ZL45 | 4500 | 600 | 6.5 | 8 | 22 | 4.0-6.0 |

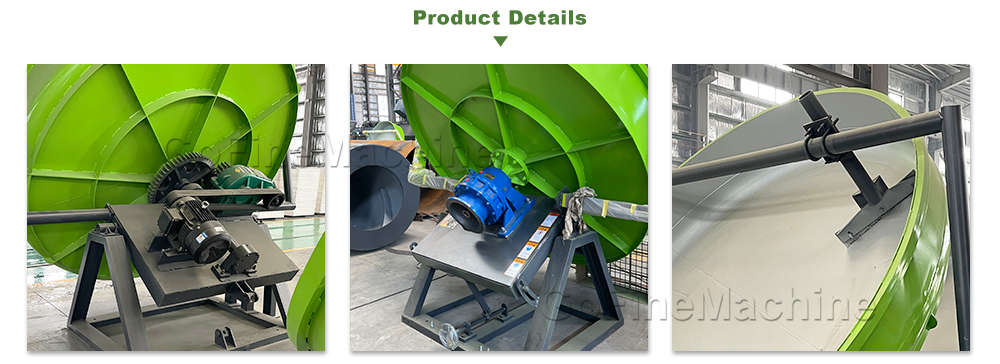

Product Details of Bentonite Cat Litter Disc Pan Granulator Fertilizer Making Machine

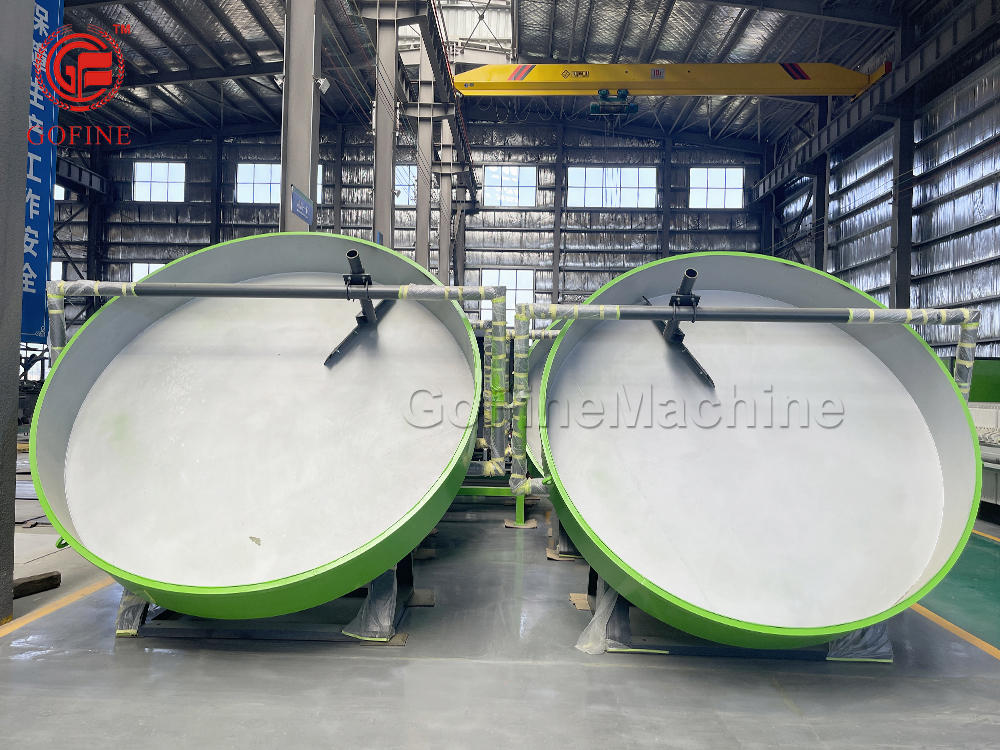

1. Granulating disc：the granulation disc can rotate at high speed, and use the centrifugal force to make the material into granules.
2. Reducer：the belt conveyor drives the reducer to rotate and transmit it to the disc. The overall structure is compact and the transmission efficiency is high.
3. Motor：the performance of the main engine is stable, and the power is determined according to the size of the equipment and production requirements, and it supports customized Siemens motors.
4. Unpowered scraper：it adopts unpowered scraper, which has good ball forming effect and cleaning effect. The ball forming rate is as high as 93%.
5. Sprinklers：during the rotation of the disc, water or liquid can be evenly sprayed on the raw material to improve the adhesion of the material.

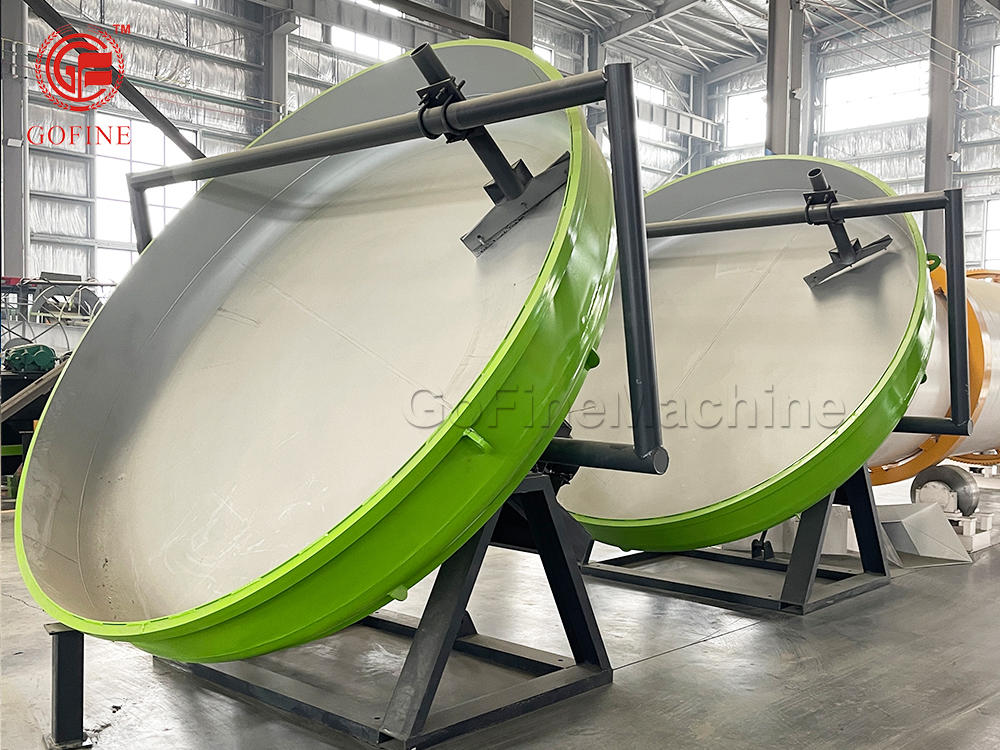

6. Support frame：to support the weight of the entire disc granulator, carbon steel is usually used, which has high strength and high stability.

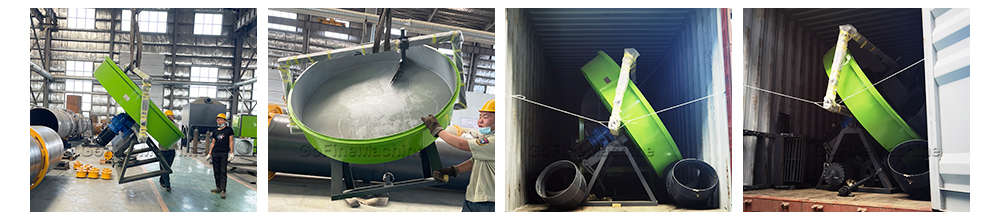

Packaging & Shipping of Cat Litter Disc Pan Granulator Fertilizer Making Machine
