Industrial Fertilizer Controlled-Release Fertilizer Coating & Melting Tank

Product Overview

In modern agricultural manufacturing, particularly within advanced controlled-release fertilizer (CRF) and slow-release fertilizer (SRF) production lines, high-efficiency thermal fluid processing is the foundation of quality coating applications. Raw solid materials—such as sulfur, paraffin wax, polymers, resins, and granular urea—must be rapidly liquefied, tempered, and blended under precise conditions to ensure uniform granule encapsulation and consistent nutrient-release profiles.

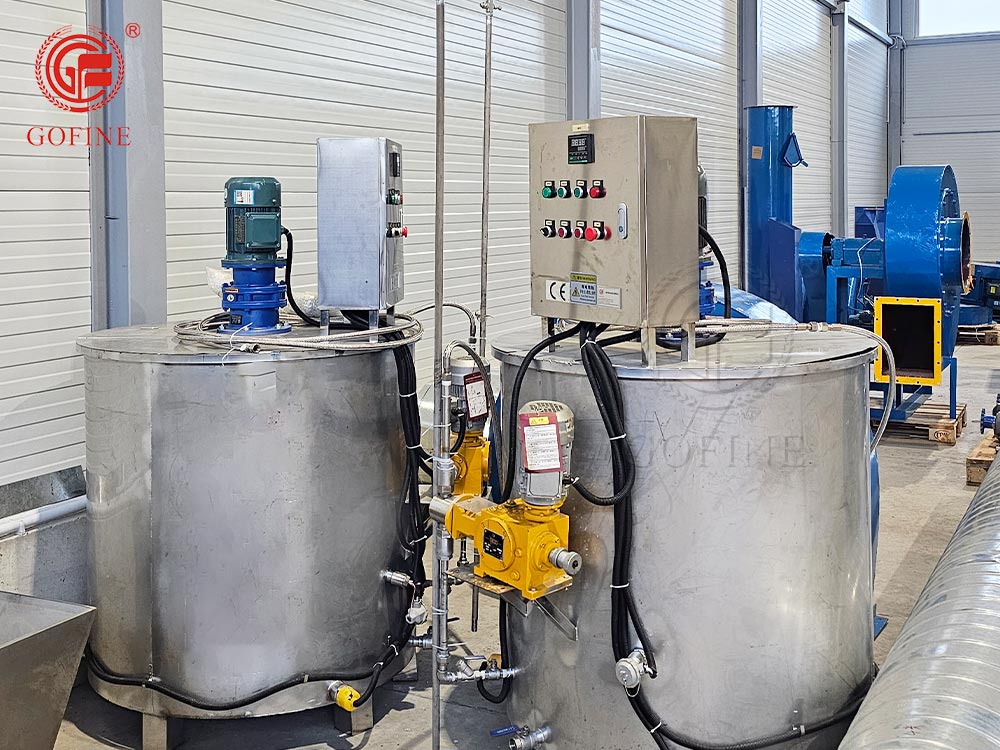

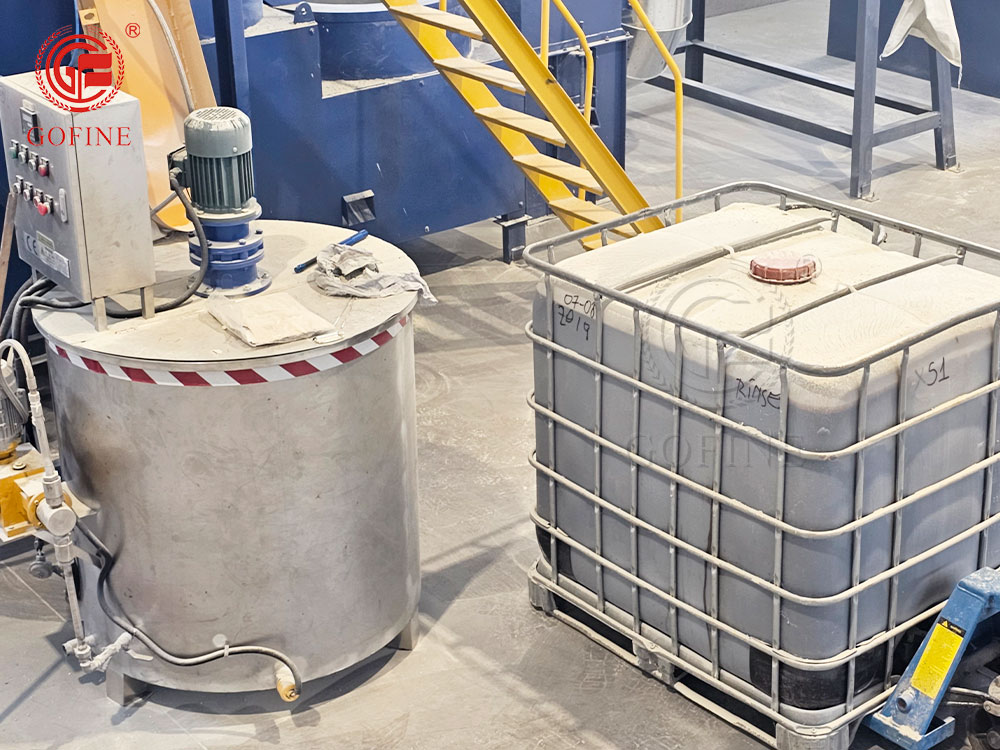

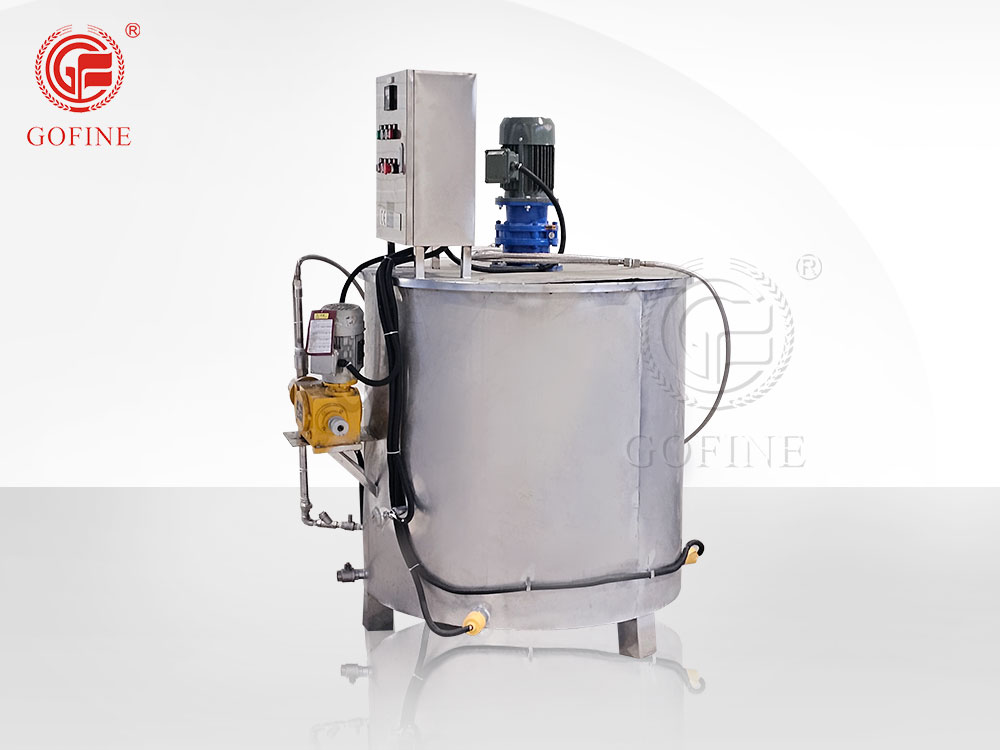

Our industrial-grade Stainless Steel Liquid Heating Melting Tank is a high-capacity system engineered specifically to serve as the central liquid preparation hub for fertilizer coating production lines. This heavy-duty jacketed mixing tank integrates efficient electric heating elements, low-speed high-torque mechanical agitation, precision PID thermal regulation, and an integrated high-viscosity discharge pump into a single compact footprint. By replacing inefficient direct-fire configurations, this specialized fertilizer coating liquid tank completely eliminates product scorching, cold-clogging, and non-uniform blending, guaranteeing a flawless, continuous supply of molten coating agents.

Technical Features & Engineering Advantages

• Corrosion-Resistant Stainless Steel Construction:

Built completely with premium SUS304 or SUS316L stainless steel to safely handle highly corrosive fertilizer chemicals, acidic sulfur compounds, and advanced polymer coating agents without rust contamination.

• Jacketed Heating & Thermal Insulation:

The double or triple-layer thermal jacket delivers uniform, gentle heat transfer to the coating chemistry, preventing material scorching while minimizing workshop energy consumption.

• Intelligent PID Temperature Control:

The integrated electric cabinet provides automated, precise temperature regulation to keep delicate polymer and wax coating fluid viscosities perfectly stable.

• High-Torque Heavy-Duty Mixer:

A low-speed industrial motor and gear reducer drive custom blades to accelerate solid material melting and prevent dense, high-viscosity coating liquids from settling.

• Integrated High-Viscosity Pump System:

Features a side-mounted industrial gear pump or rotary lobe pump to ensure smooth, clog-free liquid delivery to downstream spray nozzles through insulated, heated piping.

High-Intent Target Applications & Coating Processes

This highly versatile industrial chemical melting pot is widely deployed across specialized agricultural production and bulk chemical blending sectors:

• Controlled-Release Fertilizer (CRF) Coating: Acts as the primary fertilizer coating liquid tank, melting and tempering sulfur, petroleum waxes, and polymer resins to provide a perfectly fluid stream for downstream rotary coating drums.

• Slow-Release Fertilizer (SRF) Manufacturing: Ideal for mixing and pre-heating specialized chemical agents, inhibitors, and biodegradable coatings used to encapsulate prills for extended nutrient release.

• Sulfur-Coated Urea (SCU) Production Lines: Functioning as a heavy-duty sulfur melting kettle, it liquefies solid sulfur blocks into a highly fluid, consistent molten mass ready for high-pressure spray encapsulation.

• Automated Urea Melting Lines: Rapidly dissolves large prills or granular urea into concentrated liquid urea slurries before slurry-rotation granulation or compound fertilizer spray-granulation lines.

• Soluble & Suspension Liquid Fertilizer Blending: Functions as a robust liquid fertilizer reactor where large-scale macro and micronutrients (N, P, K, Zn, B, etc.) are heated to accelerate dissolution, chemical chelation, and blending reactions.

Step-by-Step Operational Workflow

Step 1: Thermal Pre-heating & Material Charging: The operator starts the system via the electric control panel, pre-heating the thermal fluid inside the jacket. Once the required initial temperature is met, solid coating polymers, sulfur blocks, or raw liquids are added through the top inlet.

Step 2: Thermal Fusion & Mechanical Agitation: The heavy-duty mixer is activated. As heat transfers smoothly from the jacket, the rotating blades introduce high mechanical shear, causing the solid components to break down and melt into a uniform liquid state.

Step 3: Automated PID Temperature Regulation: Thermal sensors continuously track the fluid core. Upon complete liquefaction, the system transitions to an automated conservation/holding mode, keeping the coating fluid at its ideal spray viscosity without thermal degradation.

Step 4: Insulated Fluid Transfer: The side-mounted delivery pump is initiated. The fully molten, homogeneous liquid is pumped smoothly through the insulated lines directly to your automated spray nozzles or filling valves.

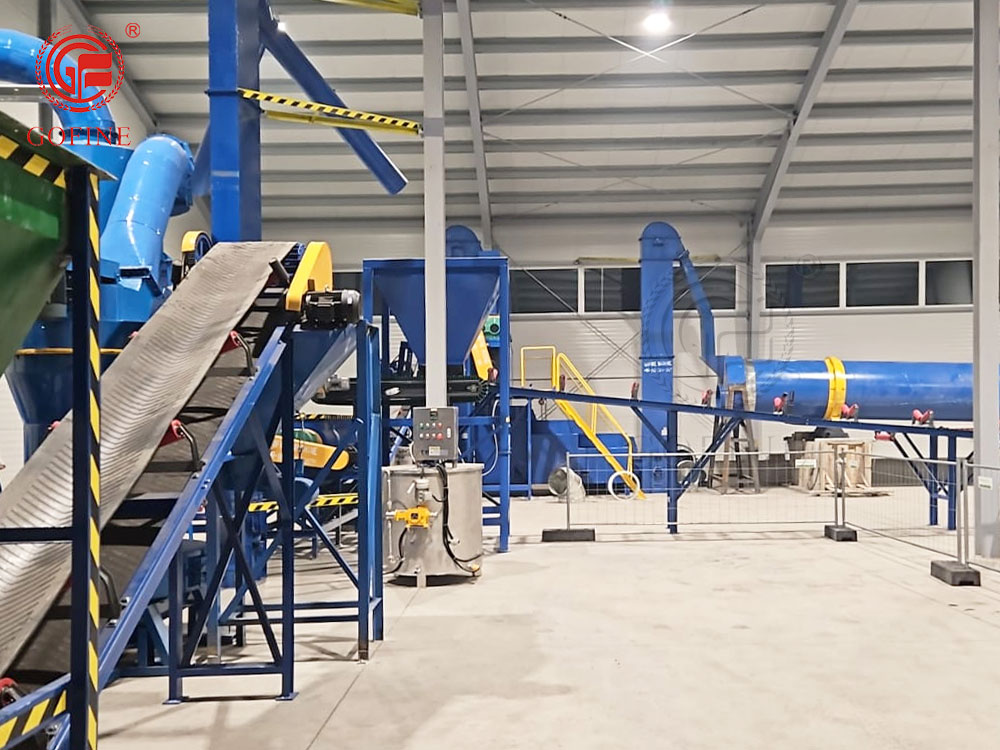

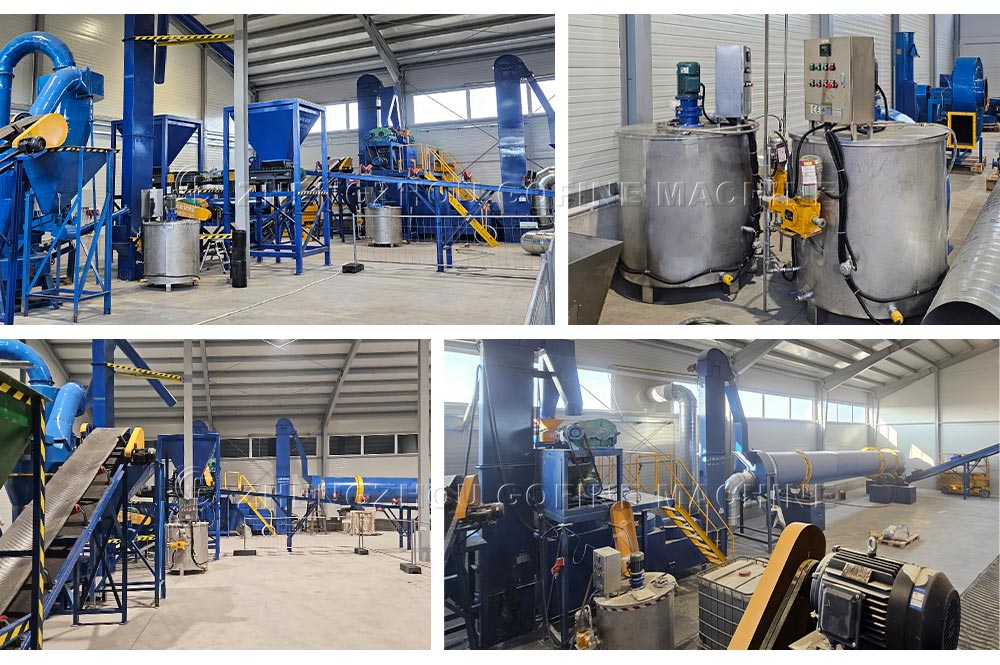

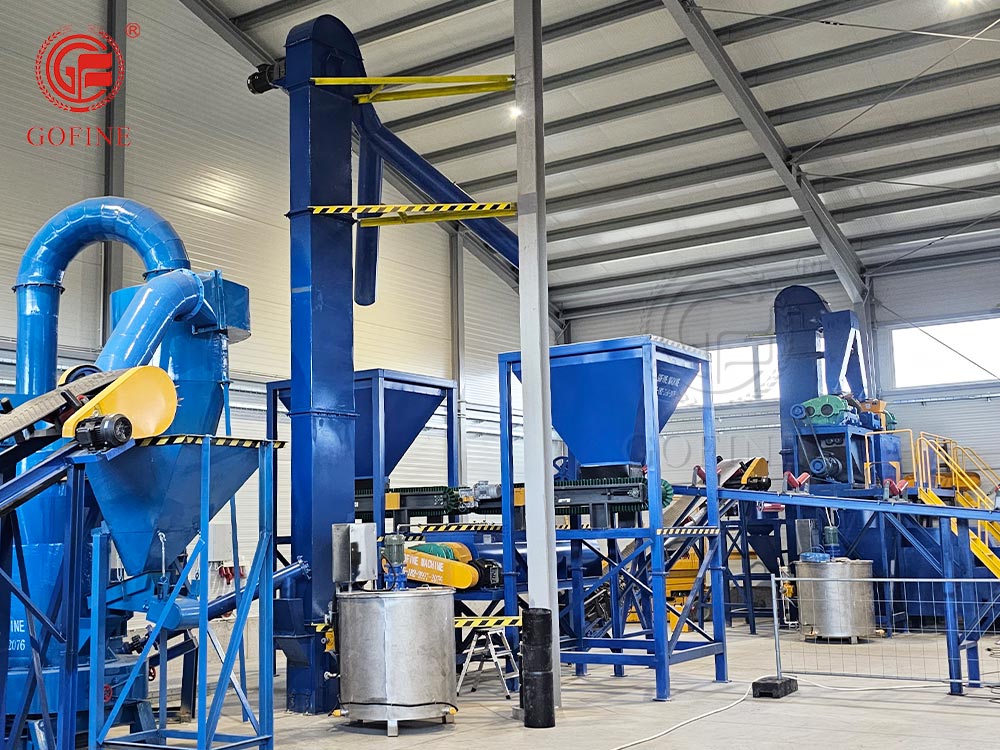

Fertilizer Production Line System Integration

In turnkey manufacturing lines, this automated fertilizer melting kettle serves as the central hub connecting raw chemical storage to final product processing:

In Controlled-Release Fertilizer Coating Systems: Feeds highly fluid, warm polymer or sulfur coating solutions directly into Rotary Drum Coating Machines or automatic liquid spray guns.

In NPK Compound Fertilizer Granulation Systems: Supplies high-temperature molten urea paste straight to Rotary Drum Granulators or high-position surge hoppers.

In Liquid Fertilizer Lines: Acts as the primary reaction vessel connected directly to Automatic Liquid Filling & Bottling Lines.

Customization Options & Global Engineering Support

To match your precise production goals, our industrial chemical melting pots can be customized with various optional configurations:

Flexible Heating Sources: Systems can be engineered for electric internal heating, external steam connection, or direct thermal oil circulation.

Explosion-Proof Compliance: Fully enclosed, explosion-proof motors and control panels are available for processing volatile chemical agents or sulfur coatings.

As a leading global supplier of fertilizer processing line equipment, we provide turnkey solutions, comprehensive technical documentation, and long-term engineering support. Contact our technical sales team today to share your factory layout and receive a tailored equipment quotation!
