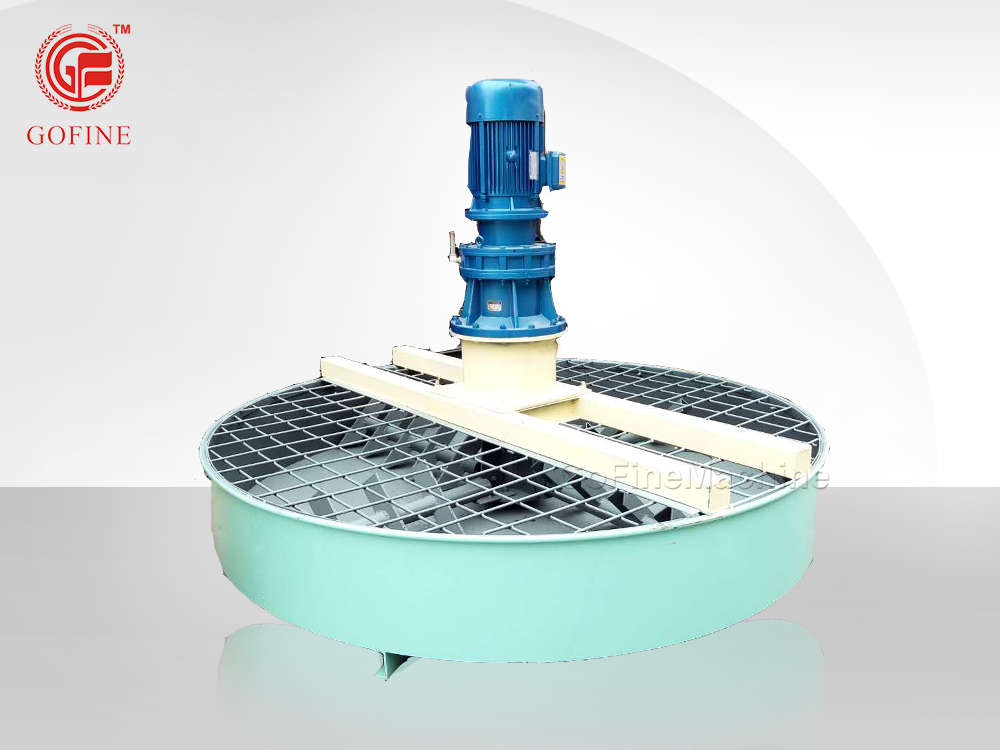

Disc Mix Feeder Fertilizer Making Machine
- Information
Introduction of Disc Mix Feeder Fertilizer Making Machine
Disc feeder is a common material conveying equipment, which is mainly used to uniformly and quantitatively convey granular or powdery materials to downstream equipment or production line equipment. The equipment has the characteristics of small footprint, fast stirring speed and continuous work. The interior is made of polypropylene or stainless steel, which is not easy to stick and wear-resistant.
Feature of Disc Mix Feeder Fertilizer Making Machine
1. High mixing efficiency, uniform stirring
2. Compact structure, small footprint
3. Unloading is convenient and can work continuously
4. The material is wear-resistant and has a long service life
5. Stable operation, low energy consumption and low noise
Working Process of Disc Mix Feeder Fertilizer Making Machine
The pan mixing feeder is a new type of feeding and mixing equipment, which is composed of a mixing plate, a material outlet, a mixing arm, a rack, a gear box, and a transmission mechanism.
The material enters the equipment through the feed port and is evenly mixed by the stirring shaft. The minimum gap between the rotor and the housing can be adjusted to close to zero, effectively reducing residual materials. The evenly stirred material is discharged from the outlet at the lower end. It can be combined with belt conveyors, granulators and other related equipment to form a complete organic and inorganic fertilizer production line.
Technical Parameter of Disc Mix Feeder Fertilizer Making Machine
Model | Blender | Speed (r/min) | Power (kw) | Production capacity | Dimensions (mm) | Quality (kg) | |
Diameter (mm) | Wall height (mm) | ||||||
PJ1600 | 1600 | 400 | 12 | 5.5 | 3-5 | 1612x1612x1368 | 1200 |
PJ1800 | 1800 | 400 | 10.5 | 7.5 | 4-6 | 1900x1812x1368 | 1400 |
PJ2200 | 2200 | 500 | 10.5 | 11 | 6-10 | 2300x2216x1503 | 1668 |
PJ2500 | 2500 | 550 | 9 | 15 | 10-16 | 2600x2516x1653 | 2050 |

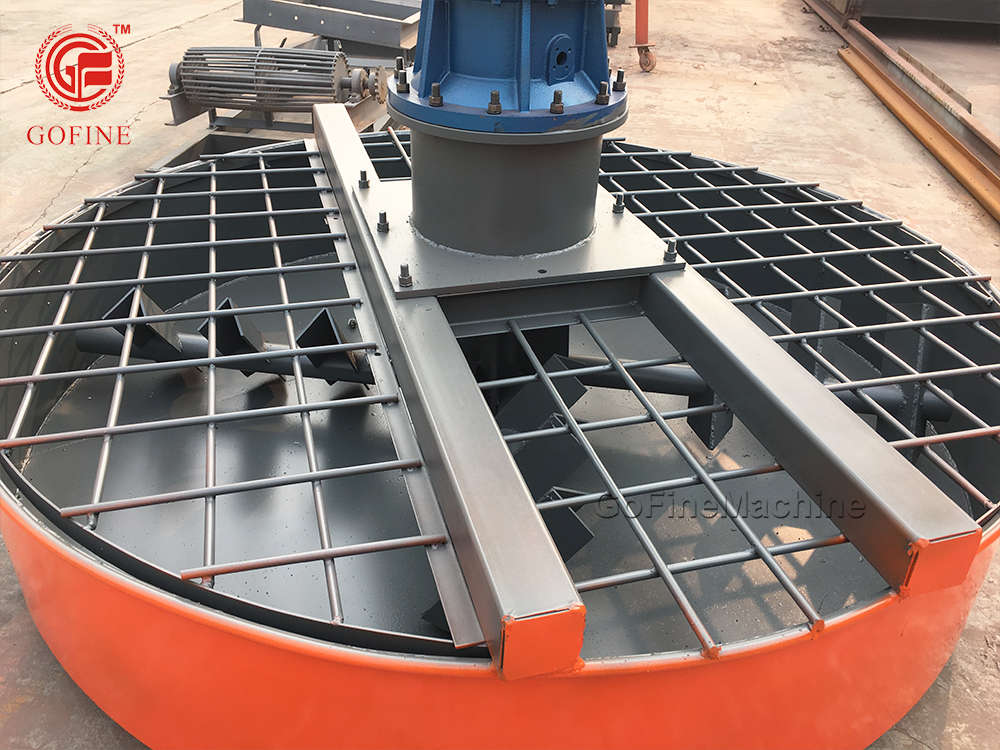

Product Details of Disc Mix Feeder Fertilizer Making Machine
