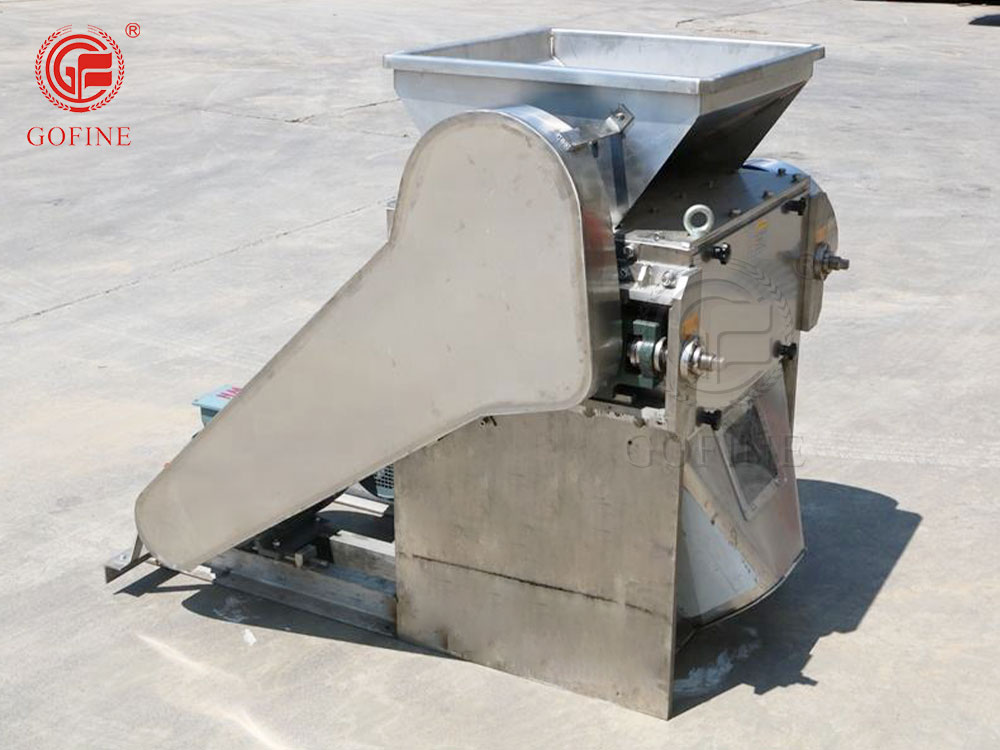

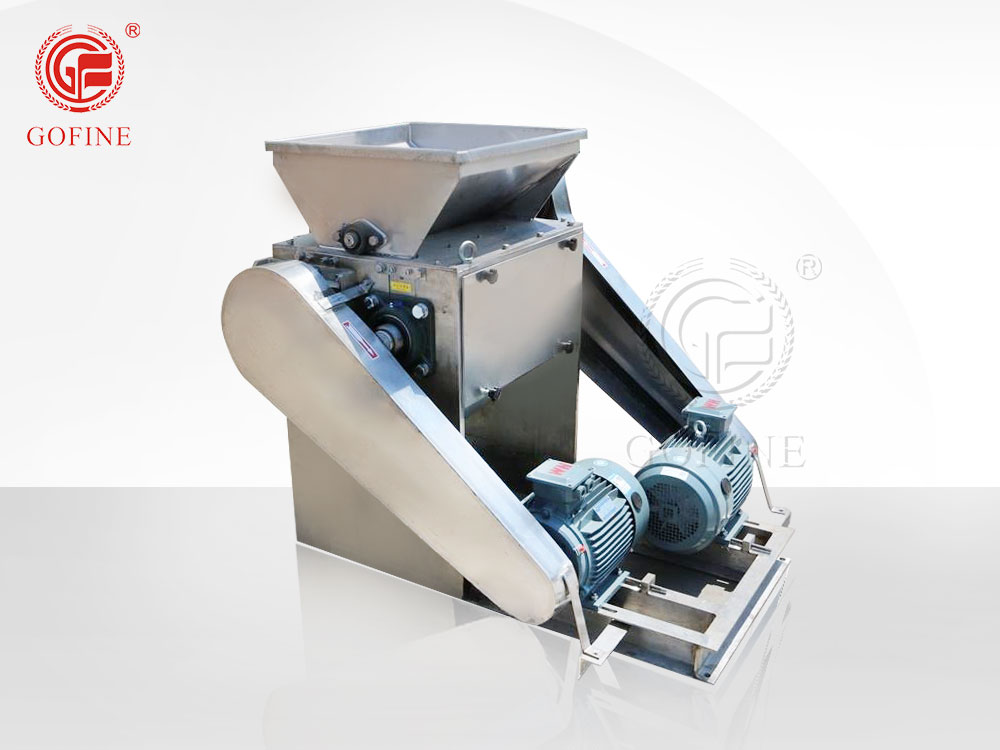

Heavy-Duty Double Roller Urea Crusher Machine

Product Overview

In modern NPK compound fertilizer, bulk blending (BB) fertilizer, and water-soluble fertilizer (WSF) production lines, urea stands as a primary nitrogen source. However, fertilizer manufacturers constantly face a dual processing challenge: stored granular urea easily absorbs moisture and forms massive hard lumps, while even free-flowing standard prills must often be ground into a fine, consistent powder before mixing. Traditional cage mills or hammer mills generate high-speed friction, which creates heat, melts the material, and leads to severe equipment clogging.

Our industrial Double Roller Urea Crusher Machine is specifically engineered to solve these operational bottlenecks. Functioning as a high-efficiency anti-clogging compound fertilizer crusher, this unit utilizes a high-torque, relative-rotation dual roller mechanism. It delivers continuous, high-throughput reduction of both large hardened urea lumps and standard granular urea prills. By replacing high-speed impact with low-speed mechanical shearing, this specialized fertilizer roller mill ensures zero material melting, ultra-low dust generation, and a consistent powder output perfectly optimized for uniform blending and granulation.

Technical Features & Engineering Advantages

1. Anti-Stick & Clogging-Free Operation: As a premier non-melting chemical fertilizer crushing machine, it applies low-speed, high-torque shearing rather than high-speed friction. This eliminates thermal heat build-up, making it the ultimate urea lump breaker for highly sticky, moisture-absorbent chemical inputs.

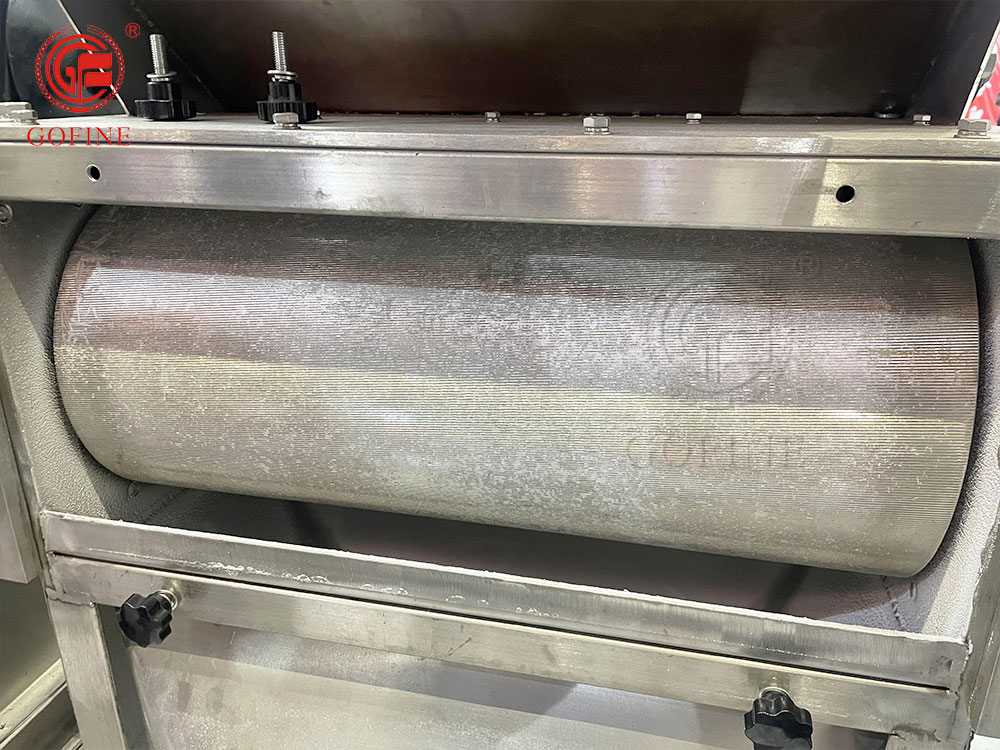

2. Precision Needle-Tooth or Grooved Roller Design: The rollers are precision-machined with alternating high-strength teeth or specialized micro-grooves. This advanced geometry ensures positive material intake, grabbing massive hardened clusters as well as slippery, small urea granules, fracturing them effortlessly without slippage or bypass.

3. Adjustable Discharge Granularity (Fine Powder Output): Equipped with a dual-wedge or spring-loaded roller gap adjustment system, this urea prill pulverizer allows operators to narrow the roller clearance to a precise minimum. This ensures standard urea granules are ground directly into a uniform fine powder to match strict NPK or BB fertilizer recipe specifications.

4. Corrosion-Resistant Material Upgrades: Because chemical fertilizer dust is highly corrosive, all contact zones of this industrial urea grinding machine—including the feeding hopper, internal crushing chamber, and roller faces—can be constructed from premium SUS304 or SUS316L stainless steel, drastically extending the equipment's lifecycle.

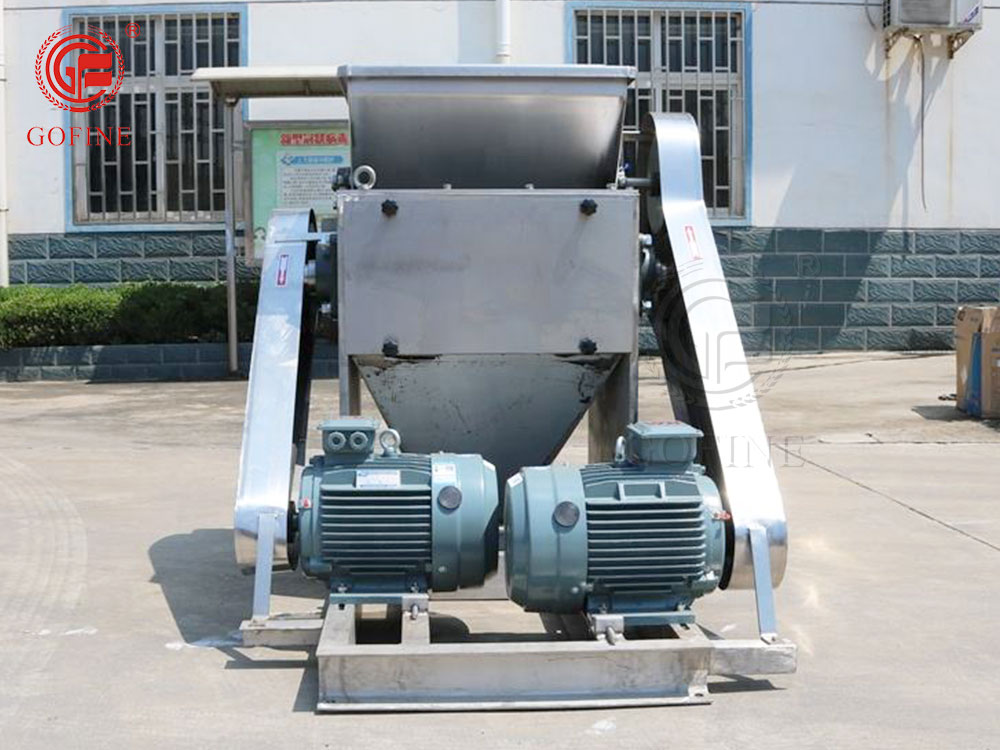

5. Dual-Motor Synchronous Drive: Powered by two independent, highly efficient national-standard copper motors coupled with heavy-duty gear reducers, this heavy-duty fertilizer mill guarantees perfectly synchronized roller speeds, preventing slippage and providing the continuous torque needed to handle sudden surges in bulk material feeding.

Technical parameters of double-roll urea pulverizer

Industrial & Fertilizer Applications

This versatile roller-type compound fertilizer crusher is a vital asset for primary material preparation across multiple agricultural sectors:

NPK & Compound Fertilizer Plants: Serves as a reliable NPK raw material crusher for rapid reduction of bulk granulated urea, ammonium sulfate, or potassium chloride cakes before raw material dosing and mixing.

BB (Bulk Blending) Fertilizer Production: Functions as a high-capacity urea granule crushing machine to pulverize both oversized agglomerates and standard urea granules into an optimized size profile, protecting downline rotary blenders from mechanical stress and ensuring accurate, un-segregated nutrient blending ratios.

Water-Soluble Fertilizer (WSF) Lines: Acts as a specialized urea fine powder grinder, pre-crushing standard granular and crystalline inputs into micro-fine powders to drastically accelerate downstream liquid dissolution and blending rates.

How It Works: The Mechanical Crushing Process

This automated urea crushing machine utilizes an elegant, low-wear mechanical cycle:

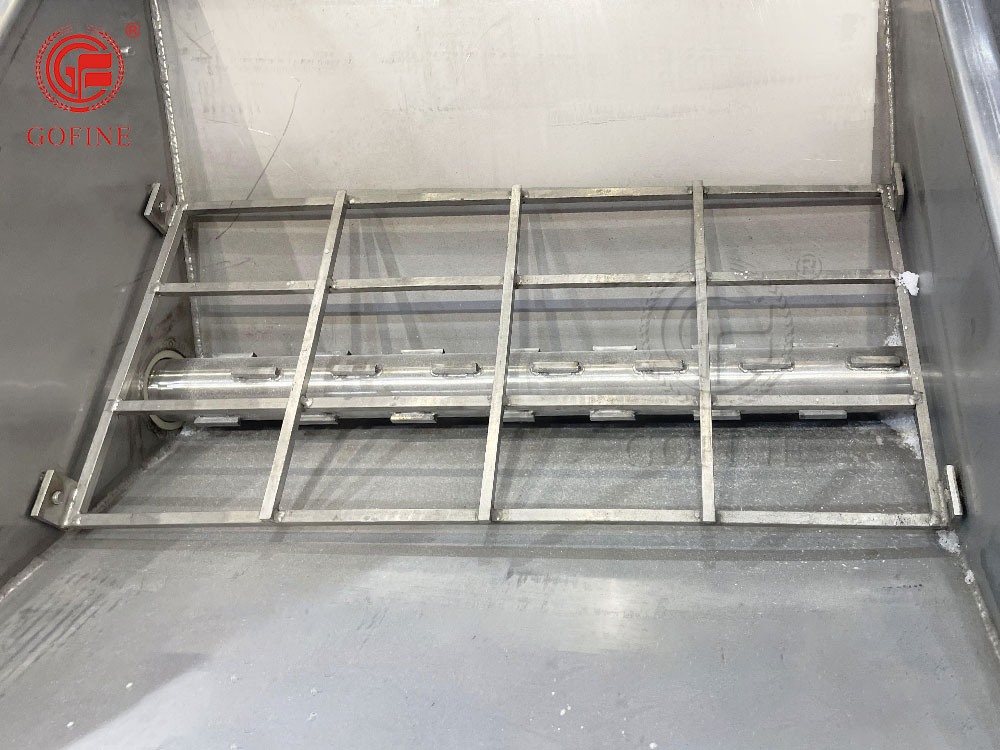

Step 1: Gravity Feeding & Distribution: Hardened bulk urea clusters or standard urea prills are discharged into the top hopper. An internal distribution baffle ensures the material drops evenly across the full axial length of the rollers, preventing uneven component wear.

Step 2: Dual Roller Counter-Rotation: Driven by the dual synchronous motors, the two parallel crushing rollers of this fertilizer roller mill rotate inward toward each other at controlled, low speeds.

Step 3: High-Torque Compression & Shearing: As the caked lumps or granular prills enter the narrowing nip area of the urea crusher, the specialized teeth grab the material. The combined forces of linear compression and mechanical shearing instantly fracture the structural bonds of the urea particles.

Step 4: Continuous Powder Discharge: The pulverized, free-flowing urea powder falls straight through the bottom discharge port under its own gravity, moving smoothly via belt conveyor directly to your next automated batching, mixing, or granulation station.

Flexible Equipment Configurations: Single Roller Options Available

To meet varying budget requirements and production scales, Gofine Machine also manufactures and supplies the Single Roller Urea Crusher Machine. This compact alternative utilizes a single high-speed rotary roller operating against a heavy-duty adjustable breaker plate, making it an excellent cost-effective choice for smaller automated batching systems and dedicated BB fertilizer blending lines.

To guarantee maximum durability across different operational environments, both our single roller fertilizer mills are available in multiple material configurations:

• Heavy-Duty Carbon Steel: Economical and highly rugged, ideal for dry environments and standard non-corrosive material processing.

• Premium Stainless Steel: Offers ultimate corrosion and acid resistance, specifically engineered for high-humidity areas and highly corrosive chemical fertilizer processing to ensure an extended machine service life.

Contact our engineering team today to get a customized equipment quotation and find the perfect compound fertilizer crusher configuration for your plant!
