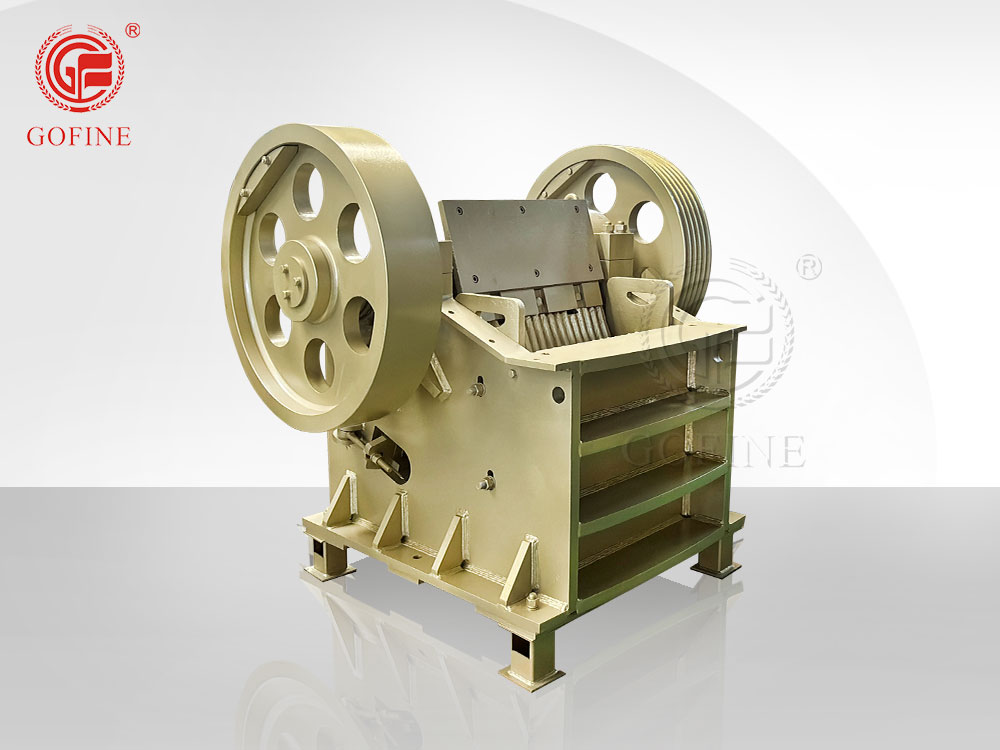

Heavy-Duty Industrial Jaw Crusher: Primary Crushing Solution

Product Overview

The Jaw Crusher serves as the indispensable primary crushing equipment in mineral processing, aggregate production, and fertilizer raw material preparation. It is engineered to handle exceptionally hard, abrasive, and large-scale bulk materials, reducing them to manageable sizes for secondary crushing stages.

Built for heavy industrial operation, our jaw crushers feature an optimized deep-v crushing cavity, premium forged steel components, and advanced toggle-plate mechanisms. This ensures maximum throughput, structural integrity under extreme load, and low operating costs in continuous $24/7$ production environments.

Technical Highlights & Engineering Advantages

1. Deep-V Cavity for Maximum Throughput: The crushing chamber is engineered with a deep, non-choking V-shape design and an optimized nip angle. This maximizes feeding capacity, prevents material bridging, and increases crushing efficiency by 15–20%.

2. Heavy-Duty Forged Steel Eccentric Shaft: The main shaft is precision-machined from high-strength forged steel, supported by heavy-duty, dual-row self-aligning roller bearings. This heavy-duty assembly absorbs extreme radial loads without physical deformation.

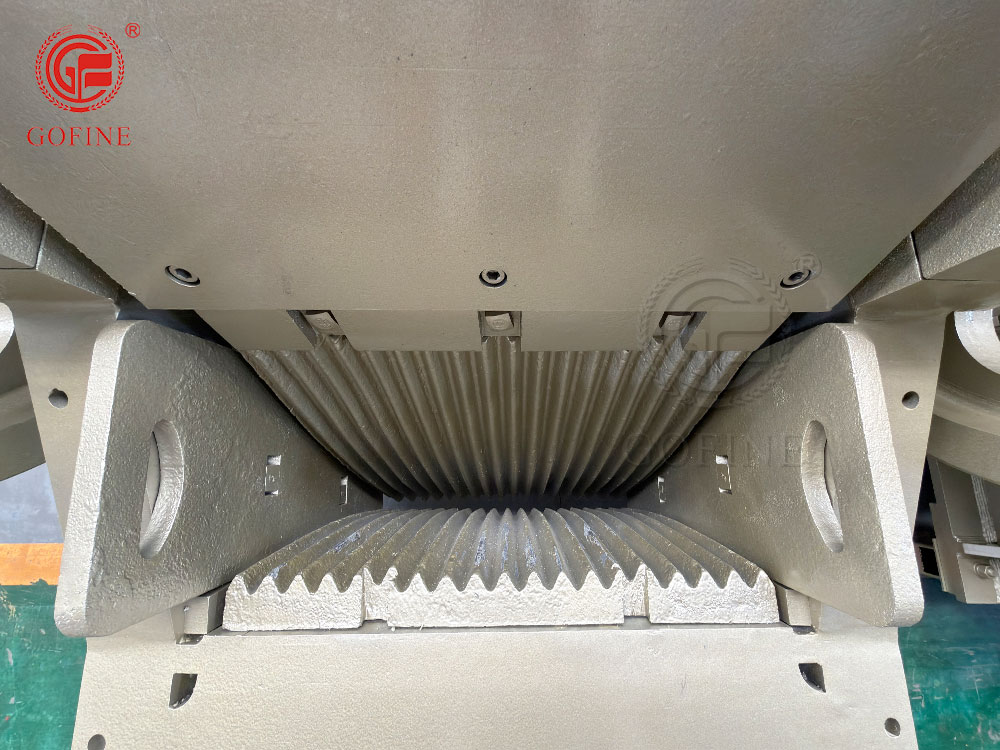

3. High-Manganese Wear Alloys: Both the fixed and movable jaw plates are cast from premium high-manganese steel. This self-hardening alloy resists intense abrasive wear and extends component service life by 30–50%.

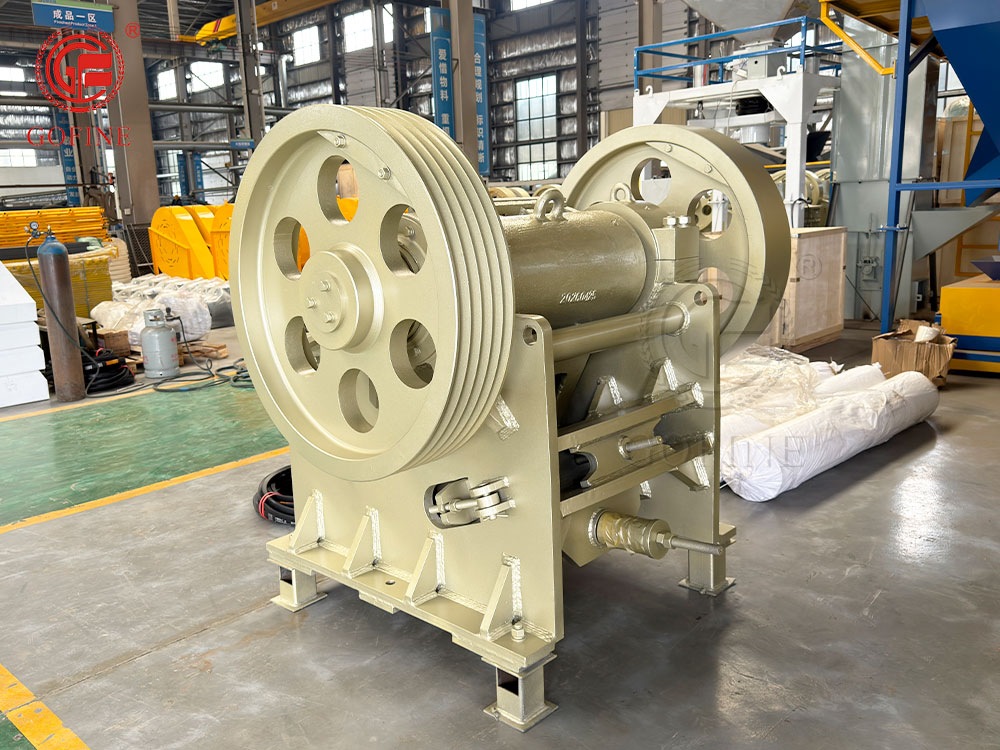

4. Dynamically Balanced Flywheels: Dual heavy-duty, cast-iron flywheels are precisely balanced to store rotational energy. This design smooths out load spikes during crushing cycles, reducing vibration transfer to foundations and cutting energy consumption.

Industrial Applications & Material Range

Our jaw crushers are engineered to process materials with a compressive strength up to 320 MPa, making them highly versatile across multiple global industries:

• Mining & Quarrying: Crushing exceptionally hard ores including granite, basalt, quartz, iron ore, gold ore, and copper ore.

• Infrastructure & Aggregate: Processing limestone, river pebbles, and concrete waste for high-grade roadbase and construction aggregate.

• Fertilizer & Chemical Raw Materials: Pre-crushing large, dense mineral inputs such as phosphate rock, sulfur blocks, and potassium ore before fine pulverization.

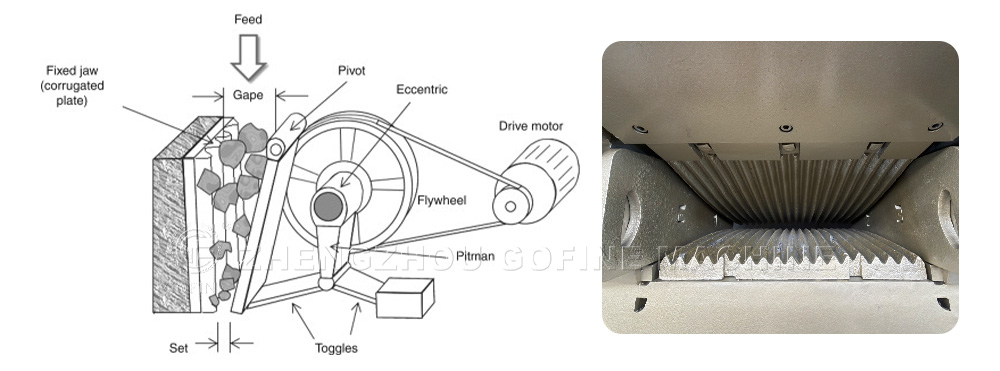

Step-by-Step Working Principle

The jaw crusher operates on a "jaw-chewing" compression principle powered by a reliable mechanical drive loop:

• Power Transmission: The electric motor drives the V-belts, spinning the heavy flywheel and the eccentric shaft at a calculated, constant speed.

• Movable Jaw Dynamics: The rotation of the eccentric shaft causes the movable jaw to move in a precise, elliptical pendulum path relative to the fixed jaw.

• Compression Crushing: As the movable jaw moves toward the fixed jaw, the bulk material inside the cavity is subjected to immense compressive, splitting, and bending forces until it fractures.

• Gravity Discharge: As the movable jaw swings backward away from the fixed jaw, the crushed material falls by gravity through the bottom discharge opening (CSS), clearing the cavity for the next batch of raw material.

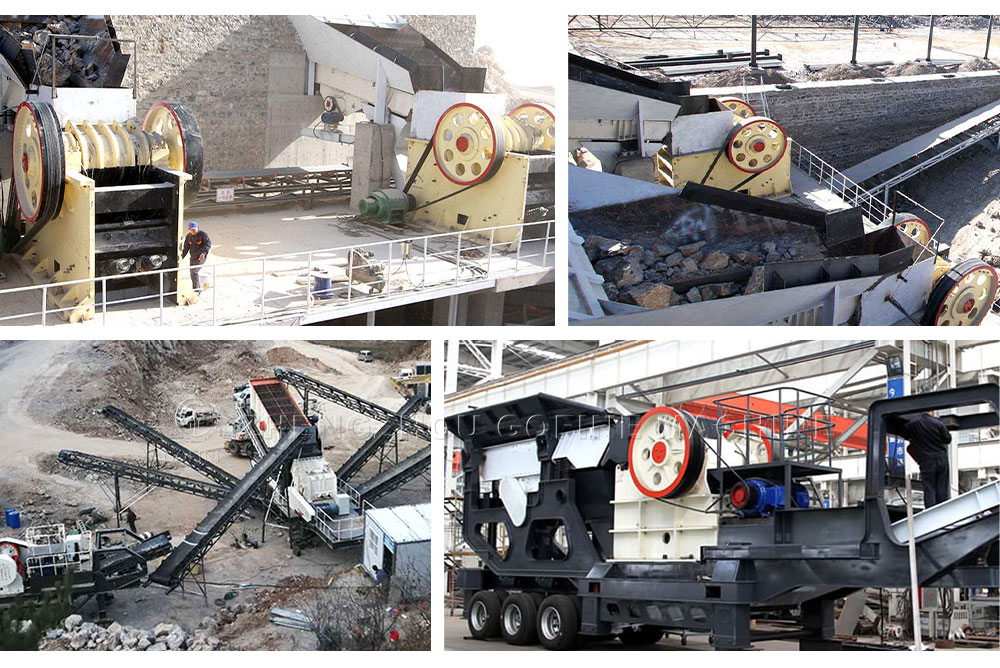

Integrated Systems: Complete Mineral Processing & Mobile Stations

As a premier crushing machinery manufacturer, we don't just supply standalone equipment; we engineer Complete Mineral Processing Production Lines tailored to your specific mineralogy. Our jaw crushers integrate seamlessly as the primary reduction stage, followed by our high-efficiency cone crushers, impact crushers, ball mills, vibrating screens, and magnetic or flotation separators to deliver a high-yield, turnkey extraction solution. Furthermore, for project sites requiring rapid deployment and high mobility across multiple locations, we offer the Mobile Jaw Crushing Station. This track-mounted or wheel-mounted mobile unit integrates the heavy-duty jaw crusher, a feeder, and a discharge conveyor onto a single rugged chassis, eliminating the need for concrete foundations and drastically reducing material transportation costs.
