10 Ton Per Hour Pan Granulation Fertilizer Plant | High-Efficiency Fertilizer Manufacturing Solution

Introduction to 10 Ton Per Hour Pan Granulation Fertilizer Plant

The 10 ton per hour pan granulation fertilizer plant is a medium-capacity, fully automatic fertilizer production system tailored for mid-sized fertilizer manufacturers, large-scale agricultural cooperatives, and waste resource recycling enterprises. As a mature and popular granulation production solution, this plant takes the pan granulator as the core equipment to achieve continuous and standardized production of granular fertilizer. With a stable processing capacity of 10 tons per hour, it can support a daily output of 150-200 tons of qualified fertilizer granules, perfectly balancing production efficiency, investment cost, and product quality.

Different from small 3t/h production lines and ultra-large industrial fertilizer plants, the 10 ton per hour pan granulation fertilizer plant features moderate scale, high operational flexibility and wide material adaptability. It can steadily produce organic fertilizer, compound fertilizer, bio-organic fertilizer and other granular fertilizer products. Thanks to its reliable performance and high return on investment, it has become the mainstream choice for medium-scale fertilizer factory construction and production upgrading in the global agricultural industry.

Working Principle of Pan Granulation Fertilizer Plant

The entire production process of the 10 ton per hour pan granulation fertilizer plant adopts physical rolling granulation technology, no high-temperature chemical reaction, no damage to fertilizer active nutrients. The core pan granulation equipment relies on inclined rotating disc mechanical motion to complete material granulation molding.

During formal operation, evenly proportioned and mixed powdery raw materials are quantitatively fed into the granulation pan. With the help of atomized water or organic binder spraying, the materials produce continuous rolling, collision, extrusion and agglomeration under the action of disc centrifugal force and gravity. Fine powder materials gradually nucleate and grow into uniform spherical particles. After reaching the standard particle size, qualified granules are automatically discharged from the pan. The whole granulation process is intuitive and controllable, with a granulation rate of over 90%, far higher than traditional granulation equipment.

Complete Production Process of 10T/H Pan Granulation Fertilizer Plant

The 10 ton per hour pan granulation fertilizer plant supports a complete one-stop production process from raw material processing to finished product packaging. All supporting equipment is precisely matched with the hourly output standard, ensuring smooth connection of each process link and no production bottlenecks. The detailed production flow is as follows:

1. Raw Material Crushing and Screening

Organic and inorganic raw materials such as livestock manure, crop straw, peat soil, nitrogen phosphorus potassium powder and industrial waste residues are sent to the crusher for fine crushing. Large agglomerated materials are fully pulverized, and impurities and oversized particles are removed through screening equipment to ensure consistent raw material fineness, which is the key foundation for uniform granulation and high-quality finished products.

2. Automatic Batching and Mixing

According to different fertilizer production formulas, the automatic batching system accurately measures various raw materials in proportion. The double-shaft stirring mixer conducts full and uniform stirring to balance material moisture and nutrient distribution. This process avoids uneven fertilizer nutrition and inconsistent particle quality, ensuring stable product quality in batch production.

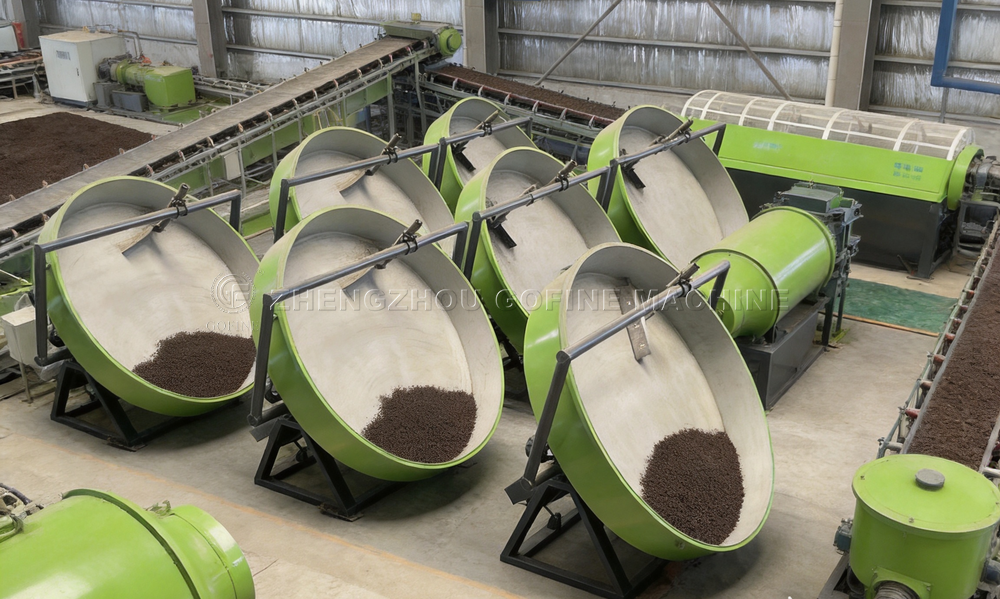

3. Core Pan Granulation Molding

As the core procedure of the 10 ton per hour pan granulation fertilizer plant, pan granulation determines the finished particle quality. The system adjusts the disc inclination angle and rotating speed according to material characteristics and customer particle requirements. Raw materials form round, smooth and solid spherical particles through continuous rolling and agglomeration. The particle size can be freely adjusted between 2-8mm to meet different national and industry fertilizer standards.

4. Drying and Cooling Treatment

The newly formed fertilizer granules contain high moisture and are prone to adhesion and mildew. The high-efficiency drying equipment removes excess water at a constant low temperature, locking fertilizer nutrients effectively. Then the cooling machine reduces the material temperature rapidly to enhance particle hardness and firmness, preventing particle breakage and agglomeration during storage and transportation.

5. Particle Screening and Recycle Processing

The cooled fertilizer particles are sent to the rotary screening machine for classification screening. Standard qualified granules are transported to the packaging process, while unqualified fine powder and oversized particles are automatically returned to the mixing and granulation system for reprocessing. This closed-loop processing mode realizes zero waste of raw materials and improves production utilization rate.

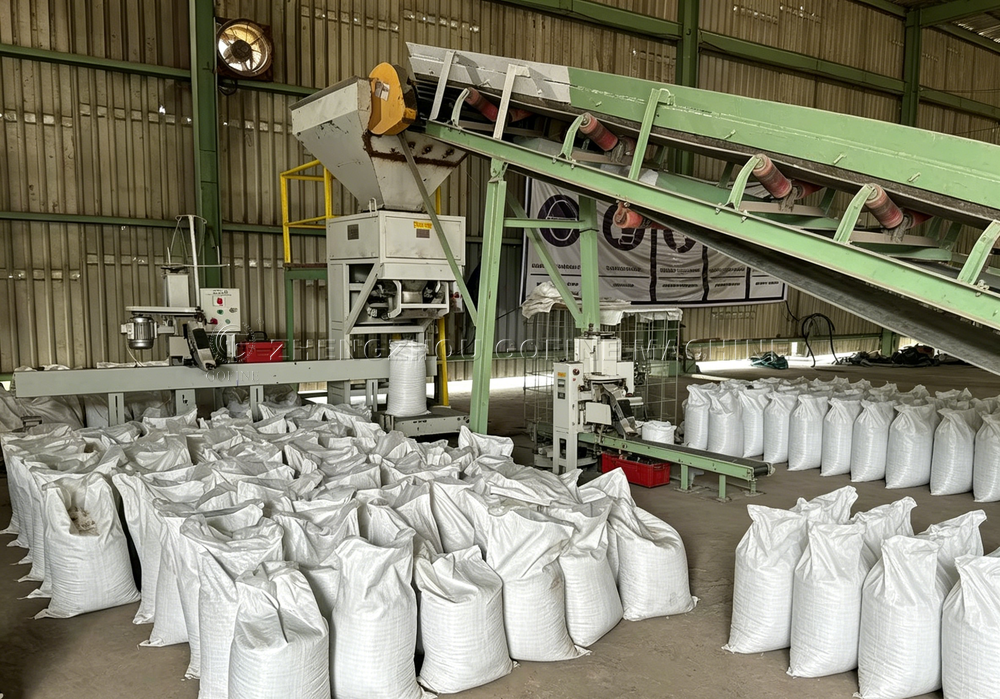

6. Automatic Quantitative Packaging

Qualified finished fertilizer products are automatically weighed, bagged, sealed and coded by the intelligent packaging machine. The whole process is efficient and labor-saving, with accurate weighing and neat packaging, which is convenient for warehouse storage, long-distance transportation and market sales, meeting the standardized packaging requirements of commercial fertilizer.

Key Advantages of 10 Ton Per Hour Pan Granulation Fertilizer Plant

1. Stable Medium Output and High Production Efficiency

Designed for a standard hourly output of 10 tons, this pan granulation fertilizer plant can operate continuously for 24 hours with stable performance, no frequent failures or material blockage. The optimized large-diameter pan granulation structure increases the effective granulation area, greatly improving granulation efficiency and finished product qualification rate. It fills the market gap between small low-output lines and super-large high-investment fertilizer plants, and is the most cost-effective medium-scale production solution.

2. Ultra-Wide Material and Product Adaptability

The 10 ton per hour pan granulation fertilizer plant supports diversified raw material processing. It can process agricultural wastes such as straw and manure, industrial organic wastes, and various inorganic chemical raw materials. It can independently produce organic fertilizer, compound fertilizer, microbial fertilizer, water-soluble fertilizer particles and other products, helping manufacturers enrich product lines and expand market coverage.

3. High Finished Product Quality and Competitive Edge

Fertilizer granules produced by the pan granulation process have smooth surface, uniform size, high hardness and good roundness. The particles are not easy to break or agglomerate, with slow fertilizer release and long-term soil fertilization effect. The high-quality granular fertilizer is suitable for mechanical sowing and large-scale farm planting, which is more popular in the agricultural market and has stronger market competitiveness than ordinary powdery fertilizer.

4. High Automation and Low Operating Cost

The whole plant adopts integrated PLC automatic control, realizing intelligent management of batching, feeding, granulation and packaging. Only 2-3 workers can complete the entire production operation, greatly saving labor costs. The matched equipment adopts energy-saving design, with low power consumption and low daily maintenance cost. Compared with roller granulation and other processes, pan granulation has lower failure rate and longer service life, reducing long-term operation investment for enterprises.

5. Flexible Layout and Low Site Requirements

The 10 ton per hour pan granulation fertilizer plant has a modular and compact overall structure, covering a small area and convenient for factory layout and installation. It does not need ultra-large factory buildings and super supporting power conditions. It can be quickly put into production after simple equipment debugging and installation, with short construction cycle and fast investment return.

Main Technical Parameters

To ensure stable and standardized production, the 10 ton per hour pan granulation fertilizer plant adopts unified industrial configuration. The core parameters are as follows: Rated hourly output: 10 tons; Matching pan granulator diameter: 2.8m-3m; Disc rotating speed: adjustable 8-25r/min; Disc inclination angle: 30°-60° adjustable; Finished particle size: 2-8mm optional; Granulation forming rate: ≥90%; Total supporting power: energy-saving configuration; Applicable fertilizer types: organic fertilizer, compound fertilizer, bio-fertilizer.

Application Fields of 10T/H Pan Granulation Fertilizer Plant

The 10 ton per hour pan granulation fertilizer plant is widely applicable to medium-sized fertilizer production factories, agricultural waste resource utilization projects, livestock and poultry breeding ecological treatment projects, and local agricultural material processing enterprises. It can effectively realize the resource recycling of agricultural and breeding wastes, turn waste into green organic fertilizer, and provide high-quality fertilizer products for grain crops, vegetables, fruits, flowers and cash crop planting. It is an ideal environmental protection and profitable equipment for modern circular agriculture.

Conclusion

The 10 ton per hour pan granulation fertilizer plant is a mature, efficient and cost-effective medium-scale fertilizer production line in the fertilizer machinery industry. It integrates stable output, wide adaptability, high automation and excellent finished product quality, perfectly solving the problems of insufficient capacity of small production lines and high investment threshold of large plants. For investors and manufacturers who want to carry out standardized and large-scale fertilizer production, this pan granulation fertilizer plant is a reliable, high-return and low-risk investment choice, which can effectively help enterprises improve production efficiency and occupy more market share.
