Polymer Coated Urea Line: Controlled Release Fertilizer Coating Machine Guide

As global agriculture shifts toward high-efficiency nutrient management, Polymer Coated Urea (PCU) has emerged as a premier controlled-release fertilizer (CRF). Traditional urea suffers from rapid nitrogen volatilization and leaching, often wasting up to 50% of applied nutrients.

A specialized polymer coated urea production line solves this problem by encapsulating granular urea within a microscopic polymer membrane. Utilizing an advanced rotary controlled release fertilizer coating machine, fertilizer manufacturers can apply ultra-thin, uniform polymer layers that regulate nutrient release according to crop uptake cycles—boosting nitrogen use efficiency by 30% to 50%.

Why Invest in a Polymer Coated Urea (PCU) Production Line?

Producing PCU offers substantial environmental and commercial advantages for modern fertilizer processing facilities:

• Superior Nitrogen Efficiency: Controlled nutrient release minimizes nitrogen leaching into groundwater and reduces ammonia volatilization, aligning with global sustainable farming standards.

• Single-Application Efficiency: A single application of PCU supplies steady nitrogen throughout the crop's entire growing season, significantly lowering field labor and application costs for large-scale farm operators.

• High Market Premium: As a high-value specialty fertilizer, PCU commands premium market prices, offering manufacturers fast investment returns and strong profit margins.

Core Technology: Continuous Rotary Drum Coating System

The performance of controlled-release fertilizer depends entirely on membrane uniformity. The continuous controlled release fertilizer coating machine engineered by Gofine utilizes a heavy-duty rotary drum mechanism to ensure flawless polymer application:

• Uniform Membrane Formation: The internal drum geometry and adjustable lifter blades create a fluid-like rolling bed of urea granules, ensuring every particle receives equal exposure to the coating spray.

• Precision Resin Atomization: High-pressure pneumatic spray nozzles atomize liquid polymer resin into ultra-fine droplets, applying ultra-thin, seamless liquid films without causing particle agglomeration.

• Multi-Stage Layering & Curing: The continuous rolling motion enables multi-pass polymer layering, allowing operators to precisely adjust membrane thickness to match targeted nutrient release durations (ranging from 30 to 120 days).

Step-by-Step Polymer Coated Urea Process Workflow

A complete industrial PCU coating line operates on an automated, multi-stage continuous processing workflow:

[Granular Urea Feed] ➔ Precision Screening ➔ Thermal Pre-Heating ➔ Polymer Atomization & Curing ➔ Rotary Cooling ➔ Automated Bagging

1. Urea Screening & Pre-Heating: High-strength 2.0–4.75 mm urea granules are screened to remove fines and dust. The clean granules then pass through a thermal pre-heating drum to reach the optimal temperature for resin adhesion.

2. Polymer Resin Atomization: Pre-heated urea enters the primary controlled release fertilizer coating machine. Liquid polymer resin and curing agents are sprayed via atomizing nozzles, coating the rolling urea bed evenly.

3. Rotary Cooling & Anti-Stick Conditioning: The hot coated urea enters a heavy-duty rotary cooling drum. A small amount of anti-caking agent or talc powder is applied during cooling to prevent granules from sticking during transit and storage.

4. Precision Screening & Automated Bagging: A rotary sizing screen isolates non-conforming particles, while qualified PCU granules proceed directly to automated bagging scales for bulk or retail packing.

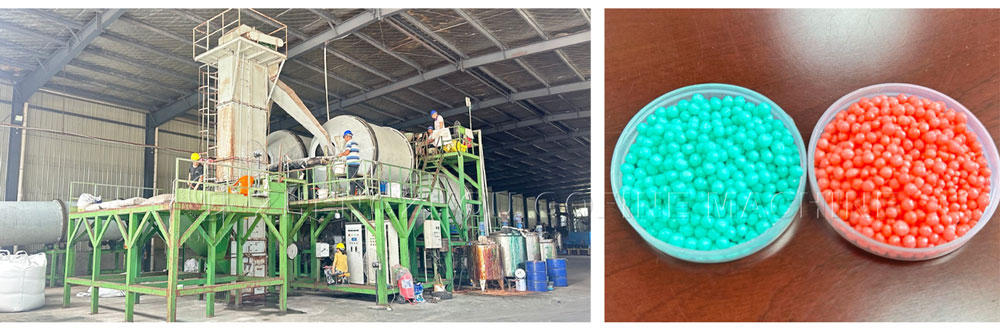

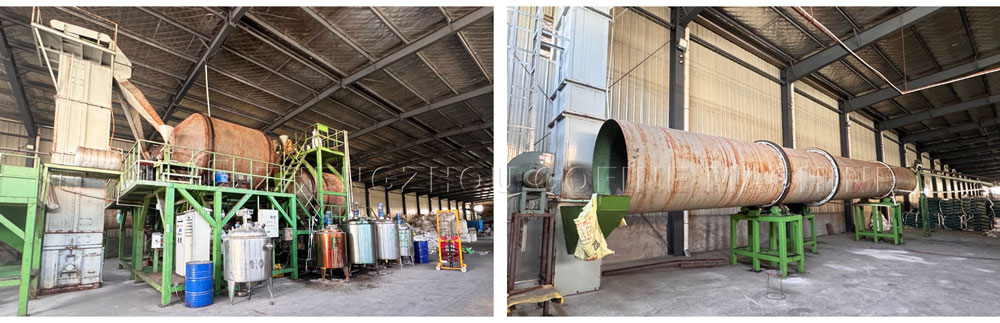

Complete Equipment Configuration for a PCU Coating Line

• Bucket Elevator & Vibrating Screen: High-efficiency vertical elevator paired with a dust-tight screen to ensure uniform urea feedstock size.

• Thermal Pre-Heating Drum: Prepares urea surface temperature for optimal resin bonding.

• Gofine Rotary Controlled Release Fertilizer Coating Machine: Heavy-duty main coating drum with anti-stick internal lining and multi-point atomization spray bars.

• Automated Liquid Resin Dosing & Heating System: Precision liquid pumps and temperature-controlled storage tanks for liquid polymer formulations.

• Rotary Cooling Drum: Enclosed cooling cylinder designed to solidify the polymer membrane rapidly without damaging the coating structure.

• Automated Pneumatic Bagging Scale: High-speed filling unit for 25–50 kg retail sacks or 1-ton bulk bags.

Frequently Asked Questions

Q: How does a controlled release fertilizer coating machine ensure uniform membrane thickness?

A: By controlling drum inclination, rotation speed, and multi-nozzle atomization, the machine keeps urea granules rolling smoothly across a fluidized-like bed. This allows liquid resin to deposit in hundreds of microscopic, seamless layers over each granule.

Q: What raw urea specifications are required for high-quality polymer coated urea?

A: High-quality PCU requires spherical, high-crush-strength granular urea (2.0–4.75 mm) with low moisture content and minimal surface dust, as dust prevents proper polymer adhesion.

Q: What capacity ranges are available for a polymer coated urea production line?

A: Coating line configurations range from 1–2 tons per hour for pilot plants up to 5–10+ tons per hour for commercial industrial manufacturing lines.

Choosing the Right Controlled Release Fertilizer Coating Equipment Manufacturer

Partnering with an experienced controlled release fertilizer coating equipment manufacturer ensures proper thermal management, precise resin atomization, and durable machinery design. Installing an engineered polymer coated urea production line enables fertilizer producers to deliver premium polymer coated urea that meets the highest international agricultural standards.

Request Your PCU Coating Line Blueprint

Ready to establish a new polymer coated urea facility or upgrade your existing coating system? Contact the Gofine technical engineering team for custom plant layout drawings, utility calculations, and direct factory equipment pricing.

Inquire today to receive direct manufacturer pricing on our controlled release fertilizer coating machine series!
