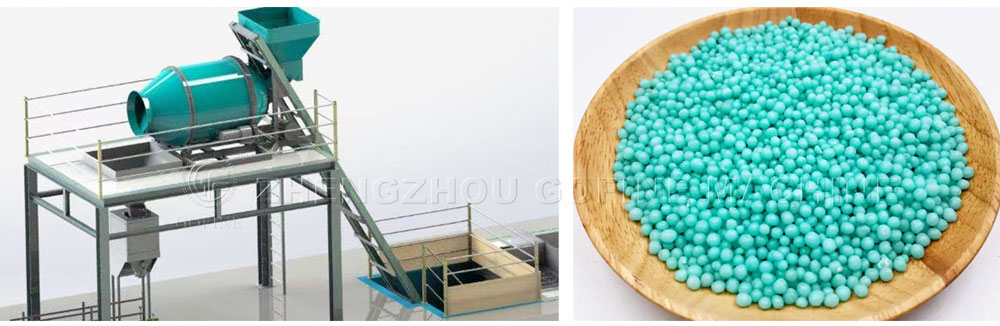

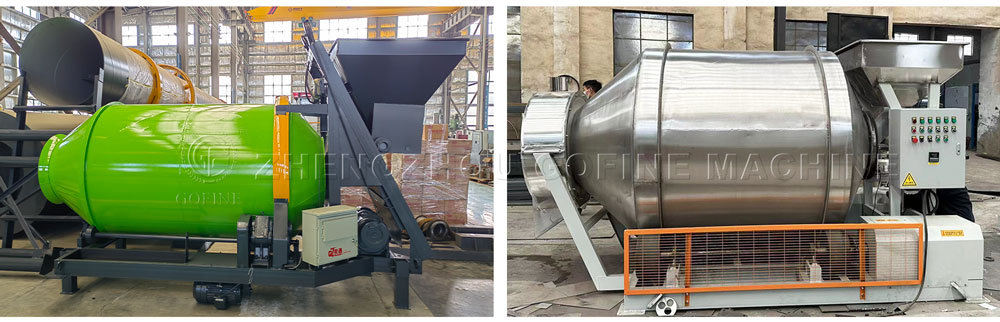

Multi-Spray Slow Release Fertilizer Coating Machine (90 to 180 Days)

Achieving precise controlled-release performance in slow-release fertilizers (SRF) relies directly on fluid spray distribution and layer thickness. Single-pass liquid application often results in uneven liquid pooling, surface cracks, or incomplete membrane coverage.

Utilizing a continuous multi-pass spray coating drum, fertilizer manufacturers can apply 2 to 8 sequential spray cycles within a single rotating drum. This multi-layer liquid atomization process builds a uniform, crack-free protective barrier that precisely regulates nutrient dissolution from 90 up to 180 days.

Layer-to-Days Matrix: Controlling Release Duration via Spray Cycles

Instead of relying on complex thermal curing systems, a multi-stage slow release fertilizer coating machine regulates nutrient release duration by increasing or decreasing liquid spray passes. Each atomized layer acts as a microscopic fluid barrier:

(Note: Increasing liquid spray passes from 2 to 8 allows operators to customize nutrient release profiles on the same production line without stopping the drum.)

Engineering Performance: Why Multi-Pass Spraying Outperforms Single-Pass Systems

• Zero Liquid Pooling & Drip Loss:

  Applying liquid coating agents in 2 to 8 light, continuous mists prevents liquid buildup on granule surfaces, ensuring immediate drying between rolling passes.

• Seamless Micro-Layering:

  Rather than forming a thick, brittle single coat, multi-pass spraying creates a laminated coating structure. This flexible layer resists mechanical cracking during transport and automated handling.

• Flexible Liquid Adaptability:

  The high-atomization nozzle array handles various liquid coating formulas, including modified bio-oils, liquid polymers, and slow-release resin solutions.

Operational Checklist: Calibrating Your 2 to 8 Pass Coating Drum

To consistently maintain 90 to 180-day slow-release performance during continuous operation, technical operators should follow three core calibration rules:

1. Granule Temperature Management: Maintain incoming dry fertilizer granules at 35°C–45°C inside the drum to ensure instant liquid spreading without burning or premature drying.

2. Multi-Nozzle Pressure Alignment: Calibrate pneumatic spray nozzles across the drum length, ensuring spray zone 1 through zone 8 deliver equal atomization micron sizes (20–50 μm).

3. Internal Flight Tumbling Speed: Adjust drum rotation speed to maintain a smooth, sliding bed of granules, preventing excessive drop impact that could break newly applied wet film layers.

Frequently Asked Questions

Q: Can I adjust the slow-release duration between 90 and 180 days on the same machine?

A: Yes. By controlling the number of active spray nozzles (activating 2 to 8 spray zones) and adjusting liquid pump flow rates, you can easily switch production between 90-day and 180-day slow-release formulations without changing machinery.

Q: Why is spraying liquid 2 to 8 times better than applying one thick layer?

A: Applying one thick liquid pass causes granules to stick together and leads to uneven film thickness. Spraying 2 to 8 thin layers builds a seamless, laminated shell that dries instantly and prevents nutrient leakage.

Upgrade Your Plant for 90-180 Day Slow Release Fertilizer Manufacturing

Integrating a multi-pass slow release fertilizer coating machine gives your plant complete control over nutrient release profiles. By mastering 2 to 8 pass liquid spray application, fertilizer producers can supply high-value 90 to 180-day slow-release fertilizers tailored to global agricultural demands.

Contact our technical engineering team today for multi-spray nozzle layout drawings, liquid pump calculations, and direct factory pricing!
