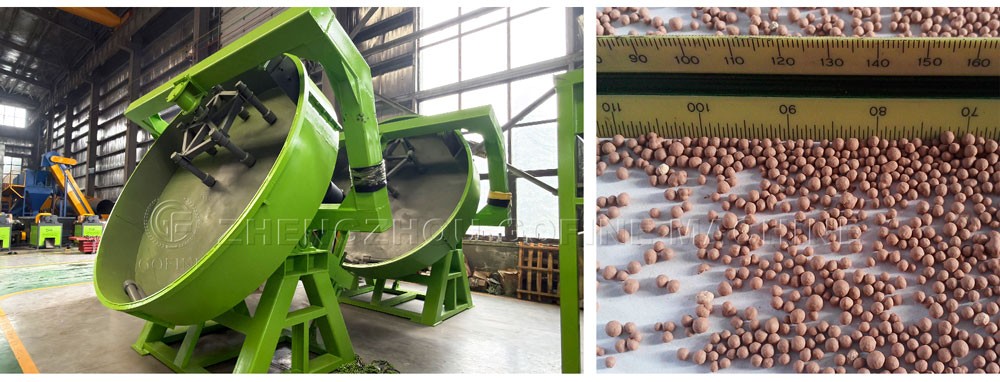

Heavy-Duty Pan Granulator: Unique Rotary Scraper Design for Maximum Disc Area Utilization

In organic fertilizer production, compound fertilizer processing, and mineral powder pelletizing, disc granulators (also known as pan granulators or disc pelletizers) are widely favored for their visible, continuous, and highly uniform balling performance.

However, standard pan granulators with static, fixed scrapers often face a major operational flaw: material caking on the disc bottom. Static scrapers only clean narrow fixed tracks, allowing damp, sticky materials to build up across the primary rolling zone. This uncleaned buildup drastically reduces the effective granulating surface, causes uneven granule sizes, and creates unbalancing loads that strain drive bearings.

As a direct fertilizer machinery manufacturer, we engineered our heavy-duty disc granulator with an innovative motorized rotary scraper system. This specialized design actively clears material buildup in the core tumbling zone, maximizes active disc surface utilization, and ensures a consistently high balling rate (≥ 90%).

How the Unique Rotary Scraper Design Maximizes Disc Utilization

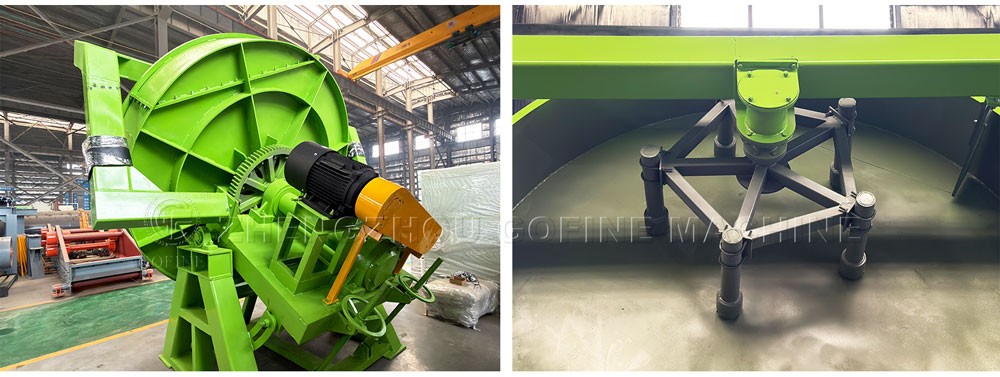

Unlike traditional static scrapers that merely drag against moving powder, our rotary scraper device actively rotates across the inclined disc surface while the main pan turns:

• Optimized Contact Zone Coverage: The motorized rotary scraper actively sweeps the primary material contact area on the pan bottom, continuously lifting wet material crusts and preventing localized sticky patches.

• Expanded Active Granulation Surface: By preventing material caking on the disc bottom, a significantly larger surface area remains free and active for powder tumbling, seed nucleation, and pellet formation.

• Improved Powder-to-Liquid Contact: The active turning motion of the rotary scraper lifts fine dust back into the liquid binder spray zone, ensuring uniform moisture absorption and preventing oversized, wet lump formation.

• Balanced Mechanical Loading: Eliminates heavy localized material buildup that causes eccentric rotational wobble, protecting the main drive shaft, heavy-duty reducer, and frame structure from mechanical fatigue.

Core Engineering Features of Our Heavy-Duty Disc Granulators

Our pan granulator machines are built for demanding, continuous industrial environments:

1. Heavy Structural Carbon Steel Framing

Reinforced Steel Chassis: Built with thick channel steel triangular bases and heavy structural plates to absorb rotational vibration and maintain alignment under full load.

Radial Disc Reinforcing Ribs: The underside of the granulation pan is welded with heavy radial steel gussets, preventing pan flexing or dish warping when loading dense organic manure or mineral powders.

2. Heavy-Duty Transmission & Smooth Angle Adjustment

Forged Steel Gear Drive: Driven by a heavy-duty electric motor through a hardened gearbox and high-precision cast gear rim, ensuring smooth start-ups under load.

Adjustable Pan Inclination Angle: The disc tilt angle is easily adjusted (35°--55°) via heavy-duty jack screws or hydraulic lifts, allowing operators to fine-tune residence time, granule diameter (2.0--5.0 mm), and discharge speed.

3. Optional Corrosion & Wear-Resistant Linings

Polymeric Anti-Sticking Liners (UHMW-PE): Provides a super-slick, acid-resistant surface that prevents sticky organic compounds from adhering.

High-Strength Rubber Liners: Flexible rubber backing flexes slightly during rotation, naturally shedding damp crusts.

Stainless Steel Liners (SUS304/SUS316): Ideal for corrosive chemical fertilizers or abrasive mineral slurries.

Pan Granulator Production Line Workflow

1. Continuous Material Infeed: Pre-conditioned, homogenized powder enters the upper zone of the tilted rotating pan.

2. Liquid Atomization & Nucleation: Liquid binder or water spray atomizes over the tumbling powder bed, forming initial seed nuclei.

3. Active Rotary Scraping & Rolling: The motorized rotary scraper continuously clears the core contact zone, lifting stuck powder back into the main tumbling mass to build round, high-density granules.

4. Gravitational Overflow: As granules reach target size (2.0--5.0 mm), they spill over the low edge of the disc rim, heading directly to drying, screening, and packaging operations.

Why Source Pan Granulators Directly from Our Workshop?

Direct Machinery Manufacturer Pricing: Source heavy-duty equipment straight from our manufacturing facility with zero trading company markups.

Custom Engineering Flexibility: Choose custom pan depths, liquid spray manifolds, variable frequency drive (VFD) speed controllers, and specialized scraper blade materials.

Complete Turnkey Line Integration: We provide full CAD/3D plant layouts, foundation specifications, and electrical control panels for complete organic and mineral fertilizer plants.

Frequently Asked Questions

Q1: Why is a rotary scraper superior to a fixed static scraper?

A: Fixed scrapers only scrape a thin static line along the bottom of the pan, leaving large areas uncleaned and allowing sticky materials to cake on the disc. A motorized rotary scraper actively sweeps the main material contact zone, maximizing active surface utilization, preventing localized caking, and raising the overall balling rate to ≥90%.

Q2: What types of materials can be granulated in a heavy-duty pan granulator?

A: Our disc granulators process a wide range of materials, including fermented poultry/cattle manure compost, mineral powders (limestone, rock phosphate, gypsum, bentonite), bio-organic formulations, NPK fertilizer blends, and cat litter clay formulations.

Q3: How do operators control granule size on a disc granulator?

A: Granule size is controlled by adjusting three parameters:

1. Pan Inclination Angle: Steeper angles reduce residence time, creating smaller granules; shallower angles increase granule size.

2. Disc Rotation Speed: Variable frequency drives adjust tumbling speed.

3. Liquid Spray Volume: Adjusting binder flow rate controls seed nucleation speed and final pellet density.

Request Your Custom Pan Granulator Quote & Workshop Video

Looking for a heavy-duty disc granulator with an active rotary scraper system to maximize throughput and eliminate sticky material caking?
