Mobile Lab Mini Briquette Press: 5mm Explosion-Proof Roll Compactor for Chemical & Fertilizer R&

In chemical synthesis, mineral processing, and fertilizer formulation R&D, evaluating the dry compaction behavior of new powder blends is critical before committing to large-scale production runs.

Testing small-batch recipes on industrial-scale equipment often leads to severe raw material waste, unpredictable downtime, and high safety hazards when handling fine, reactive, or volatile powders.

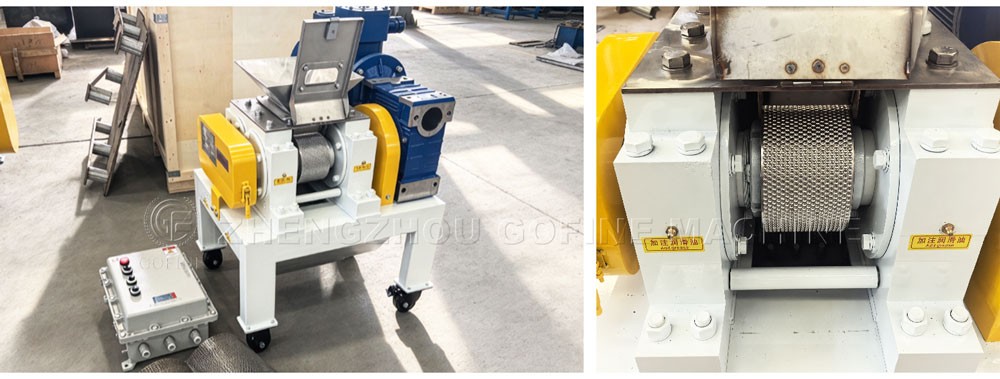

Specially engineered for laboratory testing and pilot-scale trials, our mobile lab mini briquette press delivers industrial-grade compaction performance in a compact, highly versatile footprint. Built with heavy-duty carbon steel framing, precision-milled $5 ext{mm}$ micro-ball alloy rollers, an ATEX/IECEx-compliant explosion-proof electrical control cabinet, and heavy-duty swivel casters, this explosion proof roll compactor brings precise, safe dry granulation directly to your laboratory bench.

Main equipment features and engineering advantages

1. Explosion-proof control cabinet

Hazardous Environment Safety: Features explosion-proof control cabinet, allowing research teams to safely process reactive chemical powders, solvent-damp formulations, and fine dusty additives without risk of electrical sparking.

2. Precision 5mm Micro Briquette Press Alloy Rollers

High-Density Micro-Sockets: The counter-rotating alloy steel rollers are surface-milled with high-density 5mm spherical sockets, pressing micro-pellets with high dimensional uniformity.

Hardened Tool-Steel Construction: Forged from high-chromium wear-resistant alloy steel to withstand high mechanical press loads and resist abrasion from harsh mineral salts and fertilizer formulations.

3. Mobile Laboratory Pellet Machine Frame

360° Lockable Swivel Casters: Mounted on a heavy structural carbon steel frame with industrial locking foot brakes, allowing a single technician to easily move this mobile laboratory pellet machine between testing bays, fume hoods, and storage areas.

High Rigidity Base: Solid carbon steel mounting plates minimize drive vibration and maintain precise roller gap alignment during high-pressure compaction testing.

Primary Application Scenarios in Chemical & Fertilizer R&D

1. Chemical Powder Compaction & Catalyst R&D

Evaluating compaction pressure, dry binder requirements, and pellet density for active catalysts, specialty polymer additives, inorganic salts, and fine chemical powders under safe, explosion-proof conditions.

2. Fertilizer Formula Development & Feasibility Testing

Testing dry roll compaction feasibility for custom NPK fertilizer blends, micronutrient additives, potassium salts, urea compounds, and humic acid powders without wasting bulk raw materials.

3. Specialty Mineral & Energy Material Studies

Granulating micro-samples of graphite dust, lithium battery precursor powders, rare earth minerals, and coal dust for crushing strength and friability analysis.

Step-by-Step Operating Guide for Laboratory Technicians

1. Pre-Check & Placement: Roll the laboratory compaction press to your designated testing area and engage the foot brakes on the swivel casters. Verify that drive guards are secured.

2. Electrical Connection: Connect the explosion-proof control box to your lab's hazardous-rated power outlet. Power on the main panel switches.

3. Sample Feeding: Pour pre-mixed dry powder (1--5 kg test batch or continuous small-scale feed) into the top feed hopper.

4. Compaction & Pellet Recovery: Powder is drawn into the counter-rotating 5mm alloy rollers under mechanical pressure. Formed micro-pellets drop directly into the collection tray.

5. Post-Test Cleaning: Disconnect power and brush/vacuum the roller surface to prepare for the next chemical recipe test.

Frequently Asked Questions

Q1: Why is an explosion proof roll compactor necessary for chemical lab testing?

A: Fine chemical powders, organic additives, or solvent-damp formulations generate ambient dust or volatile vapors that can ignite from standard electric motor sparks. An explosion proof roll compactor isolates electrical components, ensuring total safety in hazardous lab environments.

Q2: What is the minimum sample size needed for a test on this small laboratory briquette press?

A: Unlike commercial roll compactors that require hundreds of kilograms to prime, this small laboratory briquette press can produce formed 5mm pellets from test batches as small as 1--2 kg, dramatically reducing raw material waste during early-stage R&D.

Q3: Can the roller speed be adjusted for different powder compaction densities?

A: Yes. The drive system can be equipped with an integrated Variable Frequency Drive (VFD) inside the explosion-proof enclosure, allowing technicians to adjust roller RPM and fine-tune pressure dwell times for varying chemical or fertilizer formulations.

Request Your Lab Press Quotation & Workshop Video

Ready to accelerate your chemical and fertilizer compaction research with industrial-grade safety?
