Stainless Steel Disc Granulator for Bentonite Cat Litter Production Line

In the rapidly growing pet supplies market, bentonite cat litter remains the global industry standard due to its superior clumping capability, high liquid absorption rate, and natural odor control properties.

However, manufacturing premium-grade, low-dust, uniform spherical cat litter beads presents unique processing challenges. Raw bentonite clay powder is highly sticky, abrasive, and prone to severe machine corrosion when mixed with moisture and odor-neutralizing liquids.

As a leading equipment manufacturer, we design and build heavy-duty stainless steel disc granulators (also known as stainless steel pan granulators) engineered specifically for bentonite cat litter production lines. Built with full SUS304/SUS316 stainless steel contact surfaces and anti-sticking features, our machines deliver continuous 2.0--4.0 mm high-density, low-dust spherical cat litter pellets.

Why Choose a Stainless Steel Disc Granulator for Cat Litter Processing?

When processing damp bentonite clay, traditional carbon steel granulators rapidly corrode, producing rust flakes that discolor white or grey cat litter beads and ruin product purity.

Upgrading to a stainless steel cat litter granulator provides distinct operational and commercial advantages:

• 100% Rust-Free & Material Purity: Full SUS304/SUS316 stainless steel construction on the pan dish, rim, spray manifolds, and discharge chutes prevents rust contamination, preserving the clean, natural color of premium bentonite.

• Corrosion & Acid Resistance: Resists chemical corrosion from liquid fragrance sprays, de-dusting agents, and antibacterial additives injected during granulation.

• Smooth Anti-Sticking Surface: Mirror-polished stainless steel reduces wet clay friction, preventing heavy material caking on the disc bottom and ensuring smooth tumbling.

• Extended Equipment Lifespan: Offers 3--5x longer service life compared to painted carbon steel pans under continuous wet clay operations.

How Our Bentonite Granulator Works

Our bentonite granulator utilizes continuous inclined tumbling combined with precision atomized liquid spraying to transform fine clay powder into uniform round pellets:

• Continuous Clay Powder Feeding: Dry, ground bentonite clay powder feeds into the upper section of the inclined rotating dish.

• Atomized Moisture Injection: Fine liquid spray nozzles atomize water, dust binders, and fragrance onto the rolling clay bed, creating seed nuclei.

• Controlled Tumbling & Layering: As the pan rotates (35°--55° adjustable angle), seed nuclei continually roll, accumulate fine clay dust, and compact into dense spherical beads.

• Gravitational Overflow: Once granules reach the targeted 2.0--4.0 mm size, they naturally spill over the disc rim onto the discharge conveyor heading to the dryer.

Key Features of Our Cat Litter Manufacturing Machine

Our pan granulator for cat litter is built with high-precision mechanical features tailored for clay processing:

• Motorized Scraper Device: Equipped with an active rotary or adjustable scraper system that clears sticky clay crusts from the pan bottom, maximizing the effective granulating area.

• Adjustable Pan Tilt & Speed: Features heavy-duty jack screws and a Variable Frequency Drive (VFD) to allow operators to fine-tune disc angle and rotational speed for perfect pellet sizing.

• Reinforced Heavy Structural Chassis: Thick carbon steel base frame with radial dish reinforcing ribs prevents pan dish flexing or drive wobble under full clay loads.

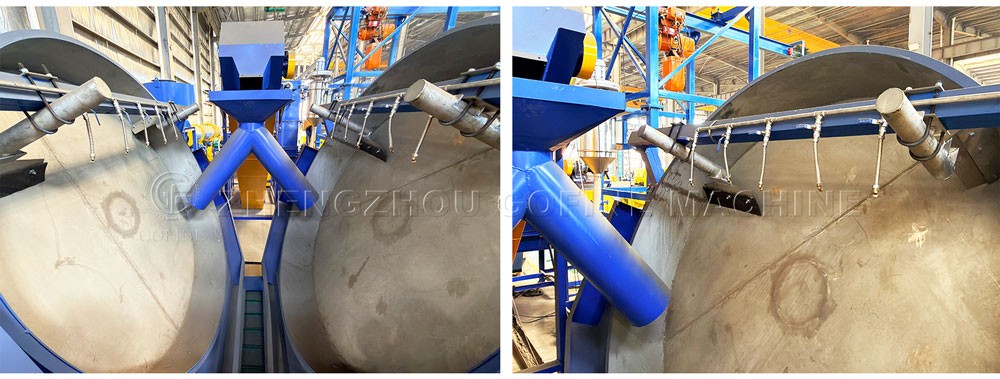

• Integrated Atomization Spray System: Stainless steel spray bars with anti-clogging nozzles ensure even moisture distribution across the rolling clay mass.

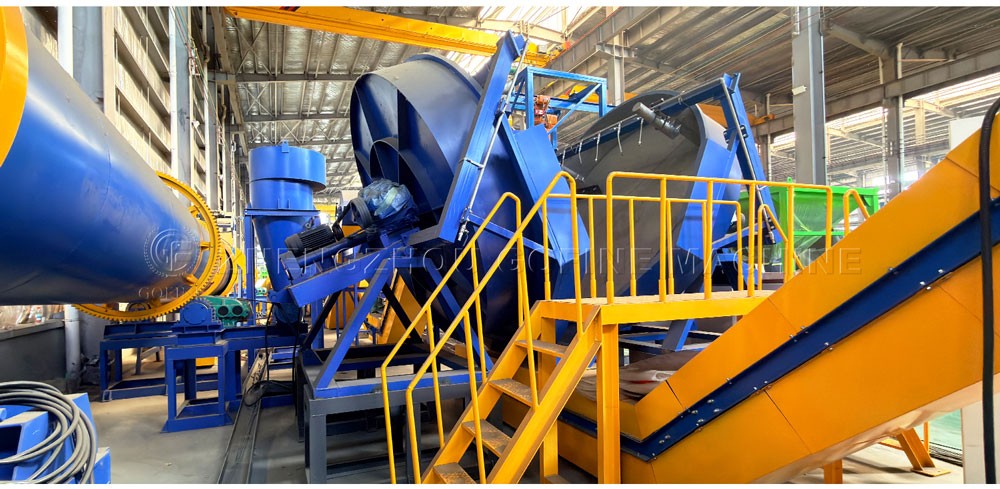

Complete Bentonite Cat Litter Production Line Integration

A stainless steel disc granulator is the central component of a turnkey cat litter manufacturing plant:

1. Clay Drying & Milling System: Reduces raw bentonite moisture and grinds clay rocks into 200--300 mesh powder.

2. Dosing & Mixing Unit: Blends bentonite powder with optional activated carbon, silica gel, or color indicator granules.

3. Stainless Steel Disc Granulation: Converts powder into 2.0--4.0 mm spherical beads.

4. Rotary Drum Dryer & Cooler: Removes moisture, hardening pellets to prevent crushing during transit.

5. Vibrating Screen Machine: Classifies granules, recycling fine dust and oversized lumps back to the mill.

6. Fragrance Spraying & Packaging: Applies liquid scent or antibacterial oil before automated bag sealing.

Why Buy Directly from Our Equipment Factory?

Direct Manufacturer Pricing: Source heavy-duty machinery directly from our manufacturing workshop with zero middleman markups.

Custom Alloy Engineering: Choose between SUS304 or SUS316 stainless steel grades based on your formula’s chemical aggressiveness.

Turnkey Line Design: We provide complete CAD/3D factory layout drawings, foundation specs, and electrical PLC integration for full cat litter processing facilities.

Global Field Installation & Spare Parts: Overseas commissioning supervision, operator training, and fast global dispatch of wearing parts.

Frequently Asked Questions

Q1: Why is a disc granulator better than an extrusion granulator for bentonite cat litter?

A: Disc granulators produce naturally spherical, smooth beads with high crushing strength and low dust. Extrusion granulators produce cylindrical columns that require extra rounding machinery (spheronizers), adding capital equipment and energy costs.

Q2: What size granules can be produced on a cat litter granulator?

A: Granule size is easily controlled between 1.5 mm and 5.0 mm (typically 2.0--4.0 mm for premium cat litter) by adjusting the pan tilt angle, rotation speed, and liquid spray volume.

Q3: Can this machine handle other types of cat litter?

A: Yes. Beyond bentonite clay, our stainless steel pan granulators successfully process tofu cat litter dust, mineral clay blends, attapulgite, and recycled paper fiber sludge.

Request Your Custom Quote & Workshop Video Today

Looking to upgrade your bentonite cat litter production line with a heavy-duty stainless steel disc granulator? Partner directly with an experienced machinery manufacturer to secure durable equipment, custom engineering, and direct pricing.

Contact our engineering team today with your target hourly capacity (t/h) and raw material specs to receive a custom CAD layout, factory trial video, and direct price quote within 24 hours!
