Case Study: Chicken Manure Fertilizer Line with Drum & Pan Granulation in Russia

Establishing a high-capacity organic fertilizer processing facility in cold climates requires robust machinery and continuous, steady wet agglomeration technology. A leading agricultural producer in Russia recently partnered with Gofine to install a custom bio-organic fertilizer production line capable of converting wet poultry litter into high-density, uniform spherical pellets.

To solve the dual challenges of high moisture variability in raw chicken manure and high particle strength requirements for long-distance transit across Eurasia, Gofine engineered a hybrid rotary drum granulator + pan granulator combination processing system.

Project Overview & Russia Plant Requirements

• Raw Material Feedstock: Fresh Chicken Manure + Peat (as a moisture absorber) + Straw Dust

• Target Output Capacity: 5–8 Tons per Hour (TPH) finished fertilizer granules

• Finished Product Specification: 2–4 mm highly spherical bio-organic fertilizer pellets (95%+ sphericity rate)

• Core Technological Challenge: Raw chicken manure contains sticky fibers and variable moisture. Standard single-stage extrusion often leads to uneven sizing or high dust formation during harsh Russian winters.

The Dual-Granulation Solution: Rotary Drum + Disc Granulator Synergy

The standout engineering feature of this Russian plant is the sequential integration of a rotary drum granulator for primary agglomeration, followed by a disc granulator (pan granulator) for micro-shaping and sizing control.

[Fermented Chicken Manure] ➔ Fine Crusher ➔ Rotary Drum Granulator (Primary Micro-Pelletizing) ➔ Pan Granulator (Spherical Finishing) ➔ Rotary Dryer ➔ Cooler ➔ Screening ➔ Bagging

Phase 1: Primary Agglomeration in the Rotary Drum Granulator

The conditioned chicken manure compost feeds into a heavy-duty continuous rotary drum fertilizer granulator. As the drum rotates, high-pressure liquid mist (or bio-liquid) sprays over the rolling material bed. The gentle continuous tumbling action aggregates fine organic powders into initial, wet micro-pellet seeds without mechanical crushing.

Phase 2: Fine Spherical Finishing in the Pan Granulator

The pre-formed micro-pellets transfer directly into a specialized wet granulator pan granulator. The inclined rotating disc acts as a physical sizing classifier:

Micro-seeds roll continuously over the pan, gathering fine powder and building strong concentric layers.

The tilt angle (35°–55°) and variable drum speed ensure that only fully formed, dense 2–4 mm organic fertilizer spheres overflow the rim.

This two-stage setup increases total pelletization efficiency to over 95%, drastically reducing material recycling ratios.

Core Machinery List for the Russian Bio-Organic Fertilizer Line

To withstand sub-zero ambient factory conditions and heavy material abrasiveness, the complete line utilizes fortified, corrosion-resistant equipment:

• In-Vessel Compost Turner / Chain Plate Turner: Ensures rapid aerobic fermentation and odor control of wet chicken manure.

• Semi-Wet Material Crusher: High-speed twin-rotor crusher designed to break sticky, high-moisture compost lumps without clogging.

• Dynamic Horizontal Batching System: Precision multi-hopper dosing unit for mixing organic compost with trace minerals or NPK additives.

• Rotary Drum Granulator & Disc Granulator Combination: Dual-stage agglomeration section for maximum granule density.

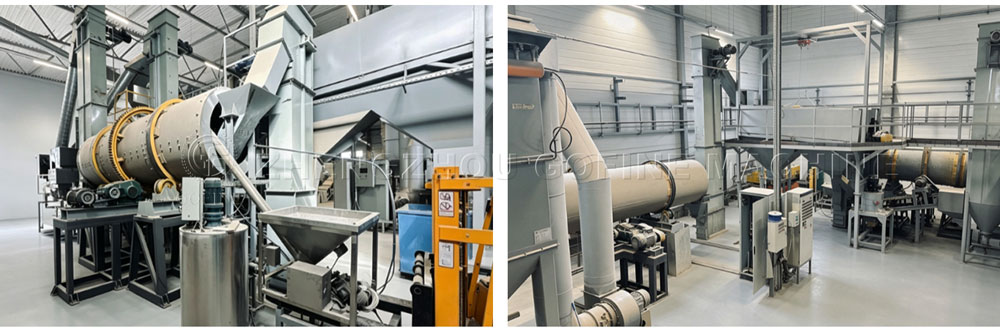

• Rotary Drying Drum & Cooling Drum System: Heavy-duty thermal dryers equipped with stainless steel lifting flights to prevent internal sticking.

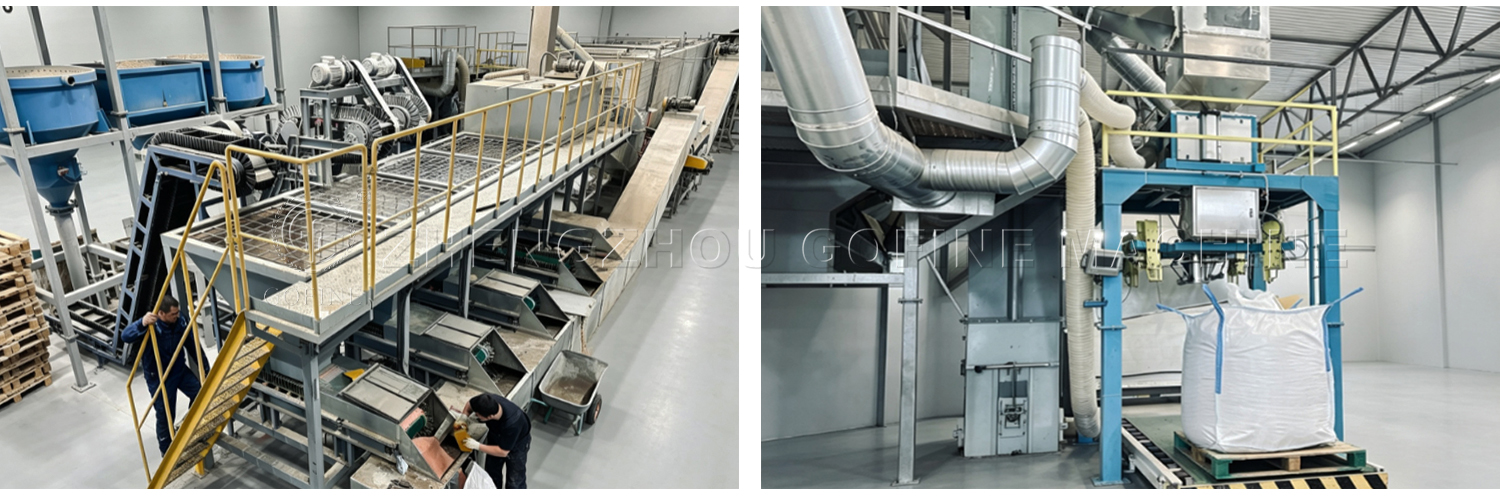

• Rotary Sizing Screen & Automatic Bagging Scale: Separates off-spec granules and seals finished pellets into moisture-proof 25–50 kg bags or 1-ton bulk sacks.

Operational Results & Client Feedback

Since commissioning in Russia, the plant has operated at full commercial capacity:

• Particle Durability: Pellets exhibit high crush strength (>25 N), resisting powdering during bulk rail transport across Russian distribution networks.

• Energy Savings: The high pelletization rate of the dual drum-and-pan setup reduces wet material recycling by 40%, lowering rotary dryer fuel consumption.

• Low Maintenance: Engineered stainless steel and rubber anti-stick drum liners eliminate internal buildup despite cold ambient operating environments.

Frequently Asked Questions

Q: Why combine a rotary drum granulator with a pan granulator for chicken manure?

A: A rotary drum granulator excels at high-throughput continuous mixing and initial seed formation, while a disc granulator provides precise size classification and rounding. Combining both yields high hourly capacity with smooth, dense spherical pellets.

Q: Can this chicken manure organic fertilizer line operate in low-temperature climates?

A: Yes. Gofine equips thermal insulation around drying drums, installs cold-weather synthetic lubricants in gearboxes, and uses anti-stick internal liners to maintain smooth material flow in winter environments.
