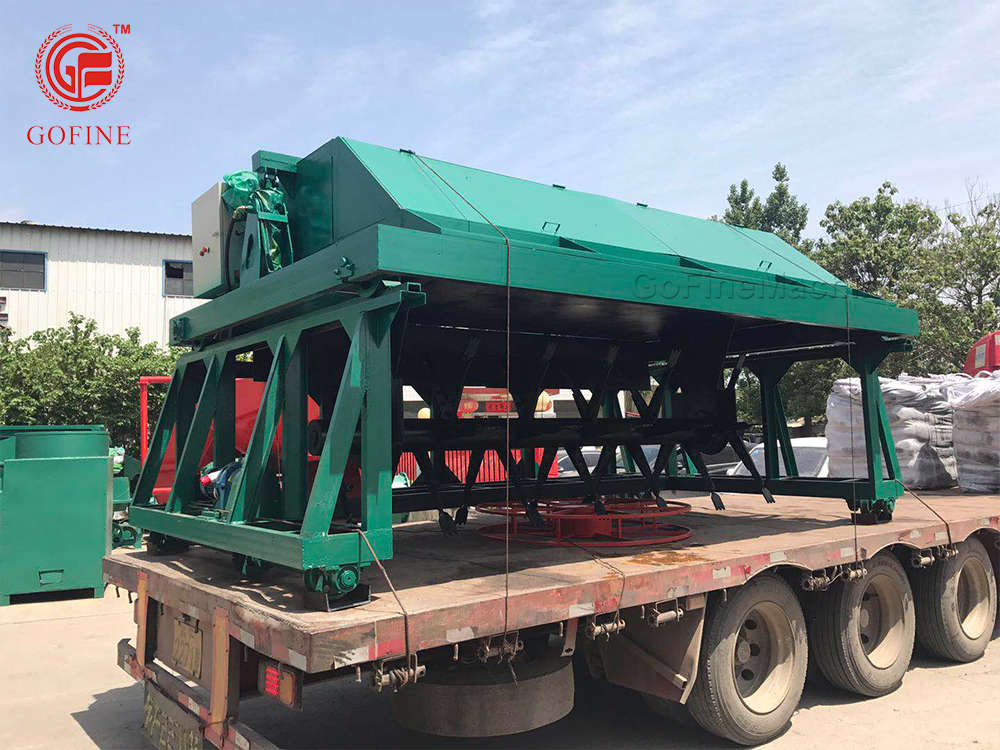

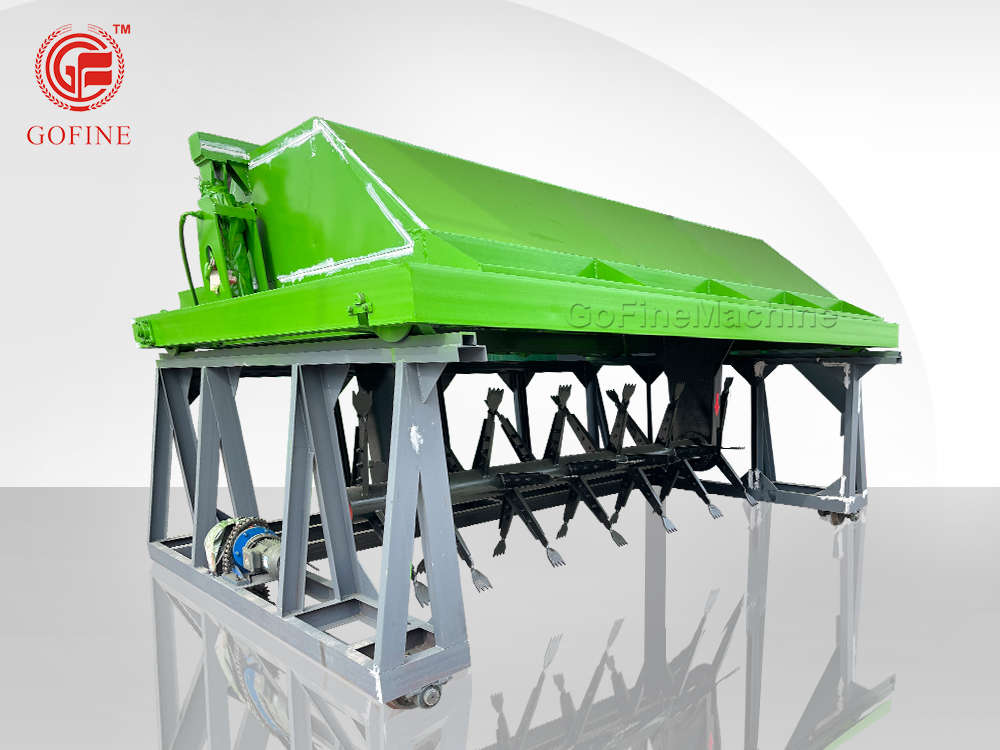

Introduction of Hydraulic Lift type Compost Turner Fermentation Fertilizer Making Machine

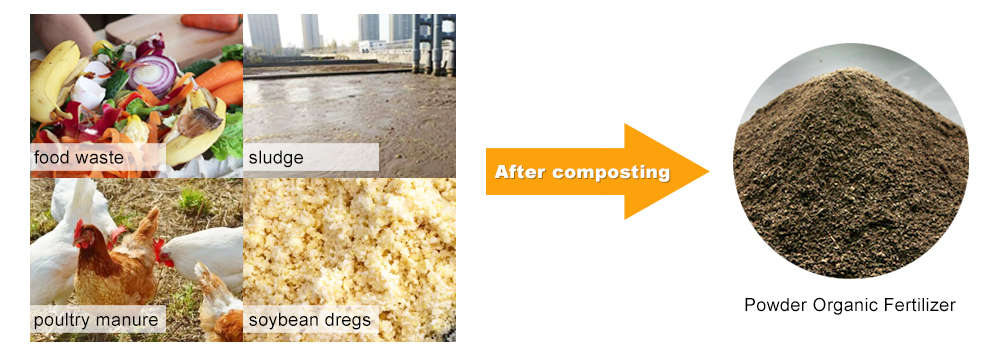

The hydraulic lift type compost turner is a kind of equipment specially used for turning materials. It has the advantages of high accumulation of fermentation materials, large turning output, and no dead angle for material turning. It is widely used in the fermentation and decomposing of organic waste such as organic fertilizer and compound fertilizer plant, sludge waste plant, poultry manure and so on. The unique track design has changed the shortcoming of low output of traditional fermentation compost turner. It can be equipped with a hydraulic lifting system, and the compost turner height adjustment is more flexible. The equipment has low investment, high efficiency, and is equipped with an automatic control system to realize continuous production.


Feature of Hydraulic Lift type Compost Turner Fermentation Fertilizer Making Machine

1. The turning span is between 3-30m

2. The turning depth can reach between 0.8-1.8m

3. Even turning and throwing without dead angle, high work efficiency

4. Easy to operate and reduce labor costs

5. Equipped with multiple safety protection devices to ensure the safety of operators and equipment


Working Process of Hydraulic Lift type Compost Turner Fermentation Fertilizer Making Machine

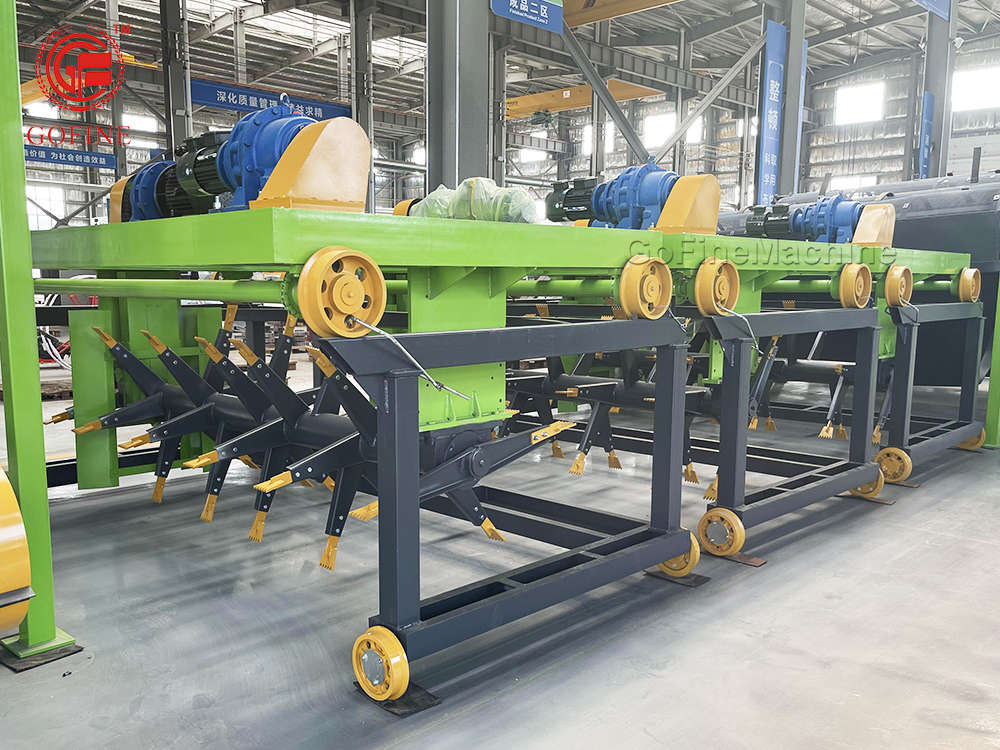

The hydraulic lift type compost turner consists of a frame, a track wheel, a knife roller, a lifting device, a transmission system and an electric motor.

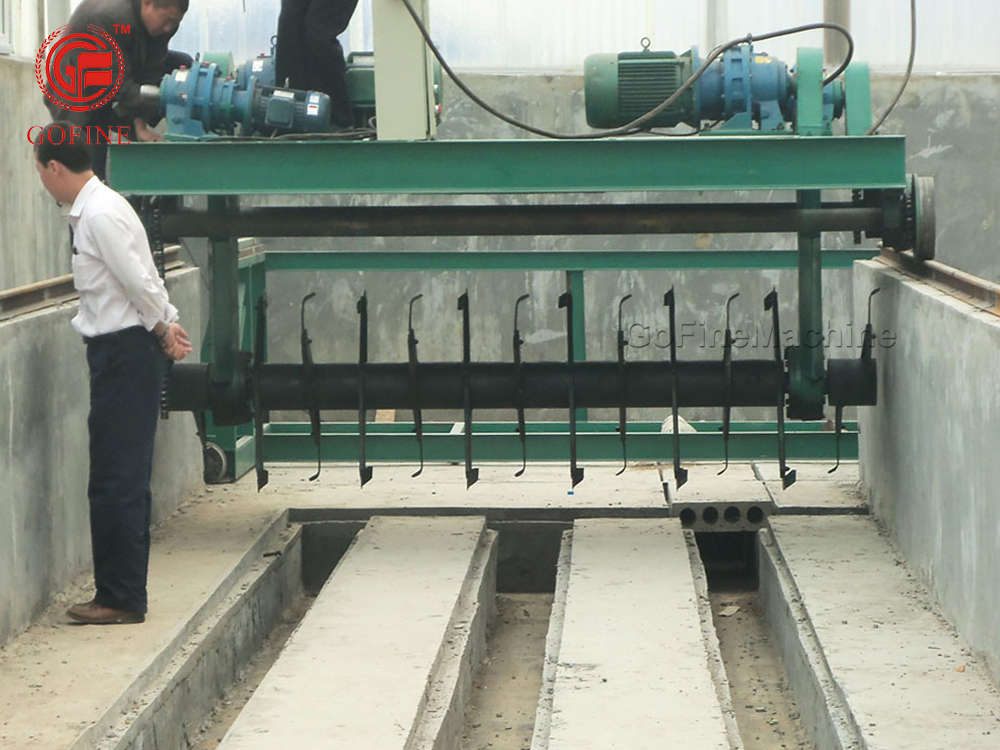

A compost turning trough is built on the ground, and the materials are piled in, and the compost turning machine walks on the groove of the composting and turns over.

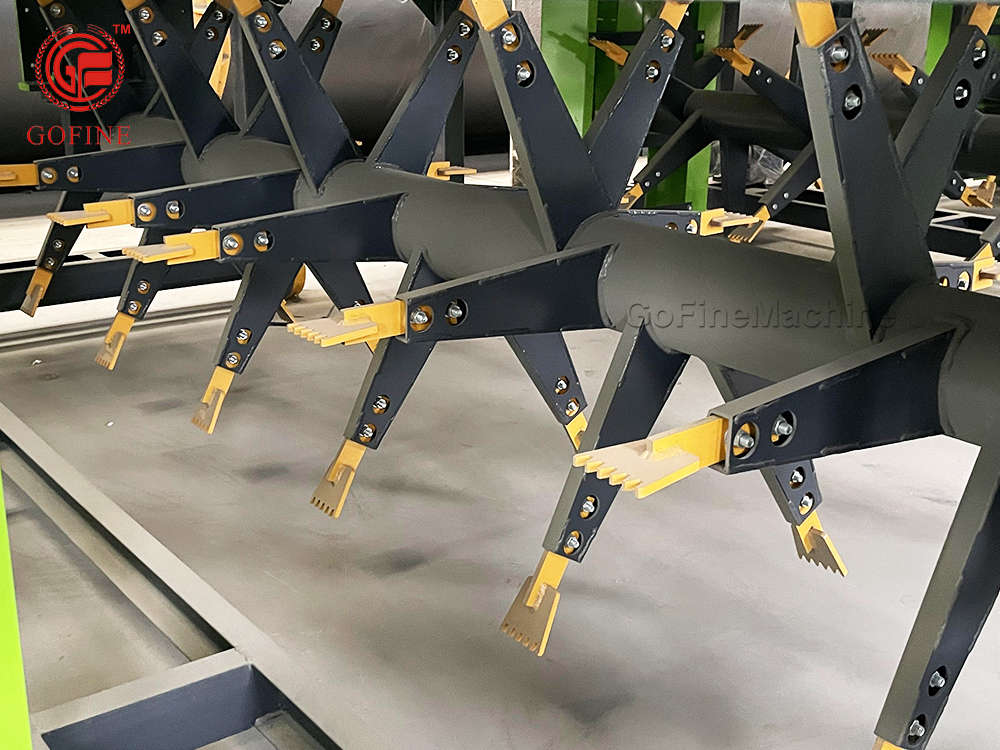

A number of throwing knives are fixed on the equipment, driven by the power, the fermented material is crushed, turned, and thrown backwards. Mix fertilizers with air, control the temperature of the compost pile, and evaporate excess moisture. The hydraulic transmission part can realize the adjustment of the working speed without variable speed, and the working process is stable.


Technical Parameter of Hydraulic Lift Type Compost Turner Fermentation Fertilizer Making Machine

ModelMain motor (kw)Walking motor (kw)Shift motor (kw)Hydraulic pump motor (kw)
FP4m150.75//
FP5m150.75//
FP6m
18.51.1//
FPY4m7.5x20.751.14
FPY5m11x20.751.54
FPY6m15x21.11.54


Product Details of Hydraulic Lift Type Compost Turner Fermentation Fertilizer Making Machine
