Chain Plate Compost Turner Fermentation Fertilizer Making Machine
- Product Details
Introduction of Chain Plate Compost Turner Fermentation Fertilizer Making Machine
Chain plate type compost turner is a kind of fertilizer equipment used for compost turning and fermentation. The chain drive device is adopted, the material stays on the pallet for a long time, and is scattered at a high position, so that the material can fully contact with the air, which has the characteristics of reducing moisture. The chain plate type compost turner has a groove depth of 1.8-3 meters, which is especially suitable for deep groove operations, has good applicability to different materials, and has a high degree of automation. It is widely used in aerobic composting of organic solid waste such as poultry manure, sludge and garbage.
Feature of Chain Plate Compost Turner Fermentation Fertilizer Making Machine
1.Efficiency: It has efficient stacking and flipping functions, which can effectively improve the utilization rate and work efficiency of materials
2.Diversity: It can adapt to different specifications and types of materials, and adjust and change according to actual needs
3.Flexibility: Horizontal and vertical displacement can realize turning and throwing operation at any position
4.Stability: Adopt advanced control system and safety system to achieve precise operation
Working Process of Chain Plate Compost Turner Fermentation Fertilizer Making Machine

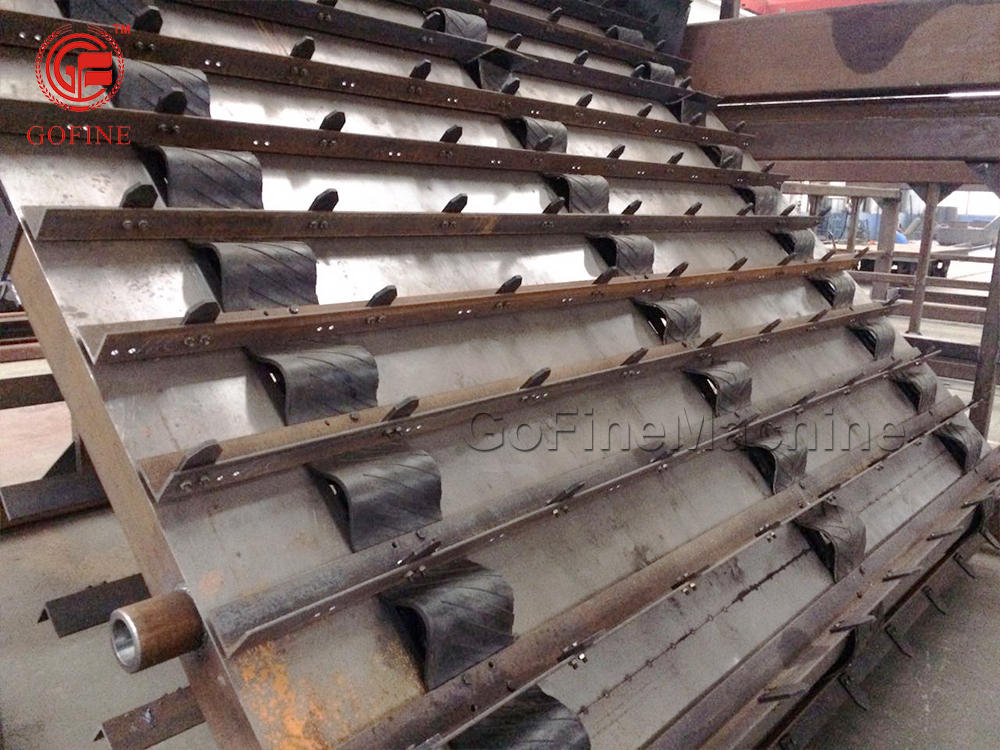

The chain plate type compost turner adopts chain drive, and the material is moved to a high place for scattering through multiple material grooves on the chain plate. Make the material fully contact with the air to reduce moisture. It can move horizontally and vertically, without dead ends. Equipped with slot changing equipment, it can realize the working mode of one machine with multiple slots, which is suitable for deep slot operations.
Technical Parameter of Chain Plate Compost Turner Fermentation Fertilizer Making Machine
| Equipment type | VTS-2 | VTS-4 | Remarks |
| Power (kw) | 13-27 | 30-45 | Low power consumption, sufficient power. |
| Flip width (m) | 2 | 3.7 | The width of the tank stack is the effective width in the tank. |
| Walking speed (m/mirl) | 0-6.3 | 0-6.3 | Traveling speed is adjusted according to the running load of the equipment. |
| Throwing/turning distance of compost (m) | 3.1-3.5 | 3.5-3.8 | Distance determination based on site quantity and time. |
| Remote control distance (m) | ≤100 | ≤100 | Determine according to workahop enbironment. |

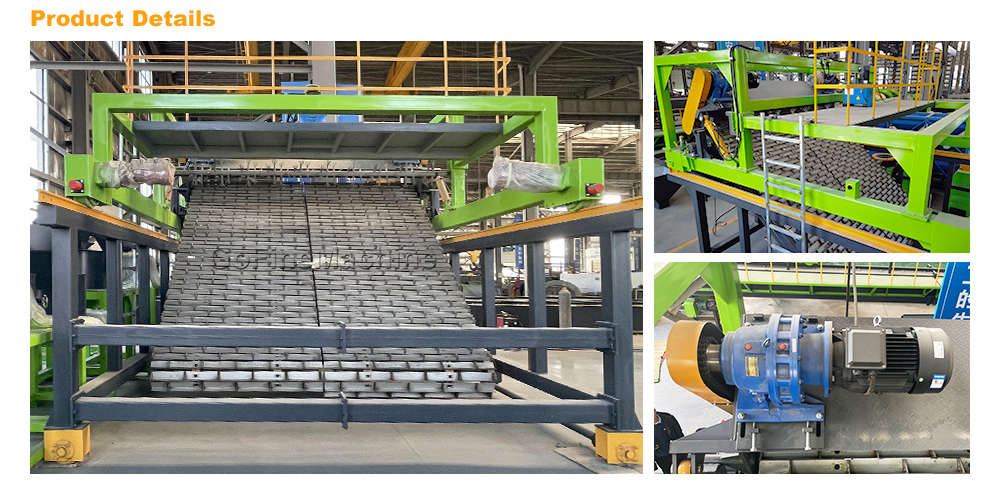

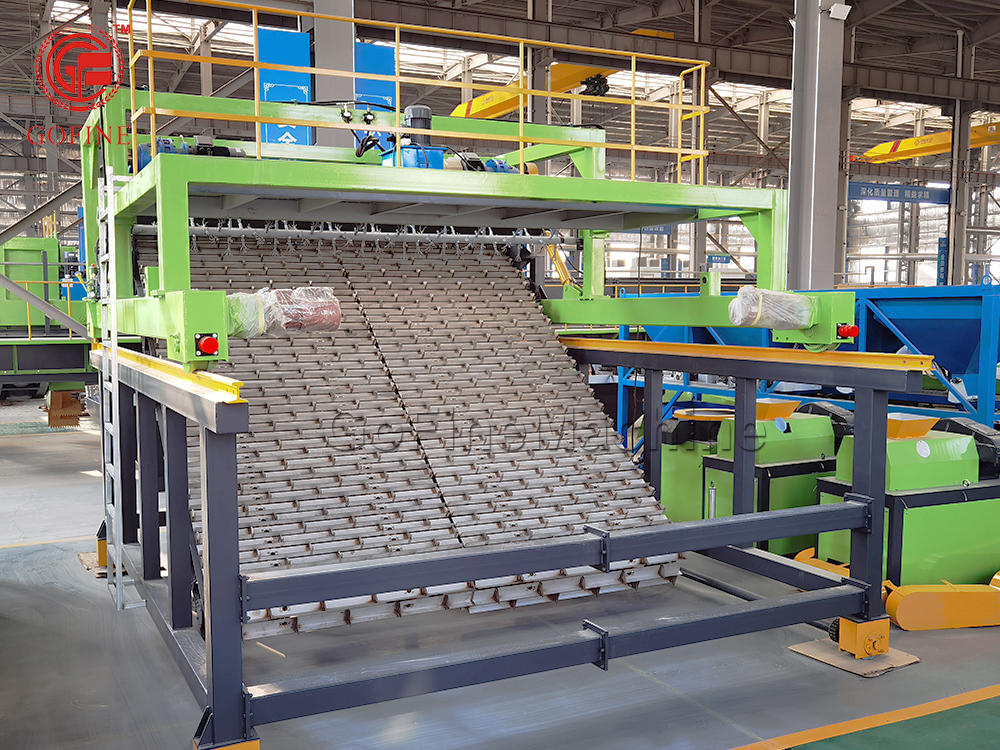

Product Details of Chain Plate Compost Turner Fermentation Fertilizer Making Machine
