Rotary Drum Screen with Inspection Dust Cover | Fertilizer Line

Executive Summary & Key Takeaways

Zero Screen Plugging: Features an internal motorized auto-cleaning brush and hammering system that prevents wet, sticky fertilizer particles from blinding the mesh.

Dust-Tight Operation: Equipped with a heavy-duty enclosed casing featuring a transparent inspection dust cover for safe, clean, and dust-free workshop operations.

High Sieve Efficiency: Designed for organic, compound, NPK, and mineral fertilizer granulation lines to achieve high-precision pellet classification (2.0--4.0 mm).

Overcoming Screening Challenges in Fertilizer Granulation Lines

In organic fertilizer, NPK compound fertilizer, and bio-organic pellet manufacturing, screening and particle classification is a critical process that determines final product uniformity and controls recycle ratios.

However, traditional open vibrating screens or standard drum sieves face two major operational bottlenecks when processing moist, sticky fertilizer granules (such as fermented poultry manure, urea-based compounds, or humic acid pellets):

1. Severe Mesh Blinding & Clogging: Fine dust and damp particles quickly adhere to sieve apertures, drastically lowering screening efficiency and capacity.

2. Dust Pollution & Environment Hazards: High-speed tumbling releases fine dust into the air, causing material waste and violating environmental safety standards.

To solve these industry challenges, our engineering team developed the heavy-duty rotary drum screen with an inspection dust cover and internal auto-cleaning mechanism, offering a dust-free, non-clogging, and continuous screening solution for commercial fertilizer granulation lines.

Core Engineering Advantages & Machine Features

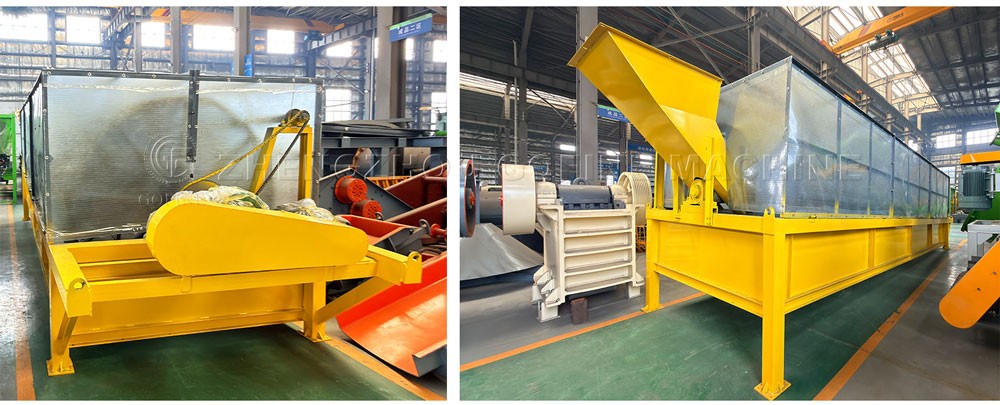

1. Sealed Dust Housing with Transparent Inspection Cover

100% Dust Containment: The fully enclosed outer casing isolates airborne dust generated during high-speed rotation, satisfying strict eco-friendly workplace regulations.

Real-Time Visual Monitoring: Built-in transparent inspection windows allow operators to observe material flow, bed depth, and screen wear without stopping the machine or removing heavy covers.

Acid & Alkali Resistant Seals: Corrosion-resistant rubber gaskets line all access doors and joints, preventing acidic or basic fertilizer vapors from escaping.

2. Internal Auto-Cleaning & Anti-Plugging Mechanism

Continuous Self-Cleaning Action: Heavy-duty, high-elasticity nylon cleaning brushes or polymer hammering paddles continuously sweep across the rotating screen surface.

Over 95% Open Mesh Area: As the drum rotates, the cleaning device physically dislodges trapped wet powder and sticky granules, maintaining continuous mesh open-area throughput.

3. Modular High-Strength Drum Structure

Segmented Replaceable Screens: The screening mesh is built with bolt-on modular sections. If localized wear occurs, technicians only need to replace the damaged panel rather than the entire drum assembly.

Custom Alloy Selection: Available in high-manganese steel, SUS304/SUS316 stainless steel, or wear-resistant polyurethane screens depending on material corrosiveness.

Integration in a Fertilizer Granulation Line Workflow

1. Uniform Infeed: Dried and cooled fertilizer pellets are continuously fed into the upper inlet of the inclined rotary drum.

2. Tumbling & Classification: The drum rotates at a 3°--6° incline. Pellets tumble downward while fine dust, target-size granules, and oversized lumps are separated across different mesh sizes.

3. Active Anti-Clogging: The integrated cleaning brushes continuously sweep the screen mesh while the dust cover traps all airborne particles.

4. Three-Way Discharge Output:

• Undersize Fines: Dropped into the bottom hopper and conveyed back to the granulator as recycle material.

• Standard Pellets (2.0--4.0 mm): Discharged directly to the anti-caking coating machine or automated bagging scale.

• Oversize Granules: Exit the tail end into a chain crusher for regrinding before re-granulation.

Why Source Rotary Drum Screens Directly from Our Factory?

Direct Manufacturer Pricing: Sourced directly from our heavy machinery workshop with zero trading company markups.

Custom Engineering Options: Tailor screen mesh materials (SUS304/316L), variable frequency drives (VFD), multi-deck screen divisions, and custom dust ports.

Full Plant Integration: We provide complete CAD/3D factory layout drawings, foundation specifications, and electrical PLC control integration for complete fertilizer production lines.

Frequently Asked Questions

Q1: Why choose a rotary drum screen over a vibrating screen for fertilizer processing?

A: Rotary drum screens run smoother with significantly lower noise and zero structural floor vibration. More importantly, drum screens are much easier to enclose completely (dust cover) and, when paired with an active auto-cleaning brush, perform far better than vibrating screens when handling damp, sticky organic or NPK fertilizer materials.

Q2: What is the lifespan of the auto-cleaning brushes, and how easy are they to replace?

A: Our brushes use high-wear-resistant nylon fibers with a typical service life of 1--2 years. The brush holders feature quick-release mounting bolts, allowing maintenance personnel to inspect and replace brushes through the inspection window within 15--20 minutes.

Request Your Equipment Recommendation & Factory Quote

Upgrading your fertilizer granulation production line with a heavy-duty rotary drum screen featuring an inspection cover and auto-cleaning system?

Contact our engineering team today with your raw material type and capacity requirements to receive a custom CAD layout, operational video, and direct factory price quote within 24 hours!
