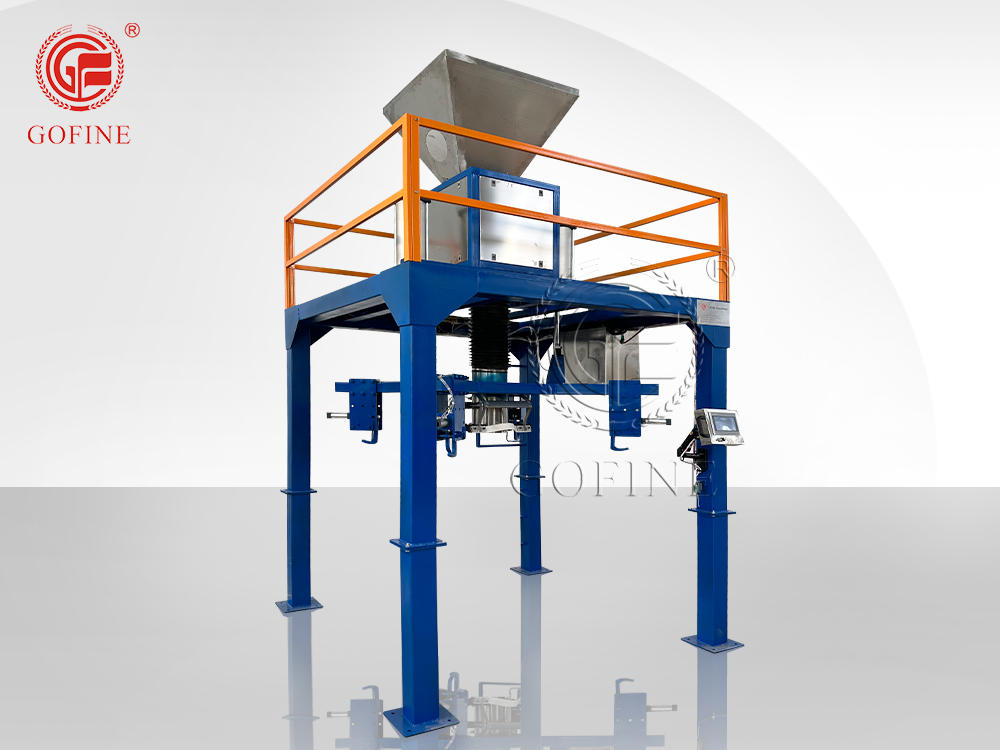

Ton Bag Packaging Machine

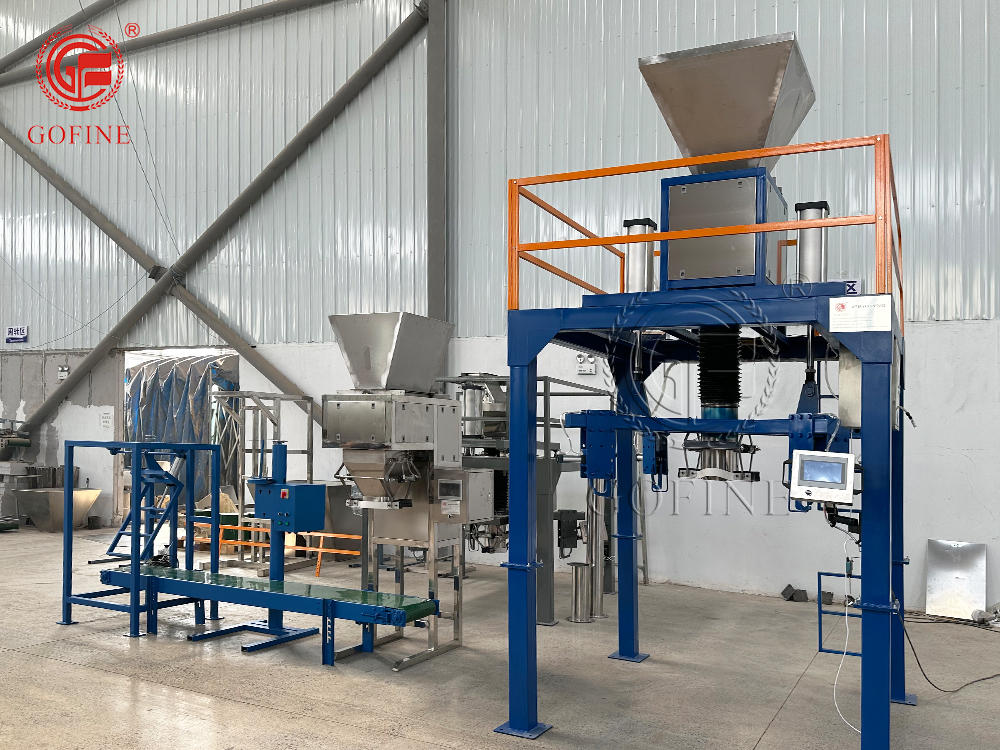

Introduction of Ton Bag Packaging Machine

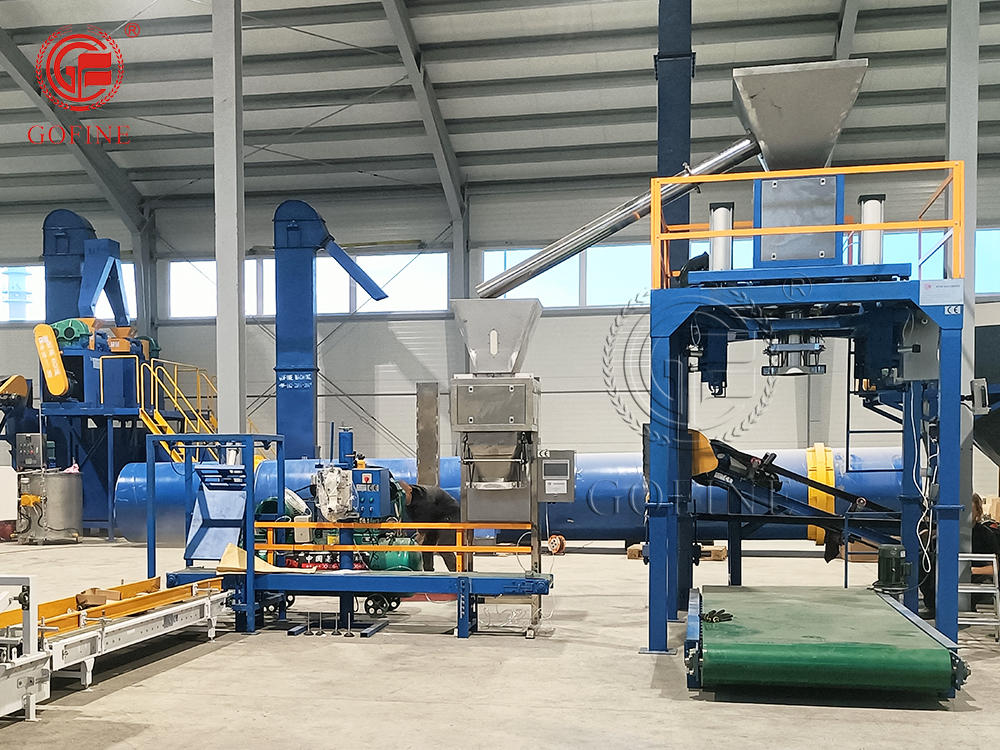

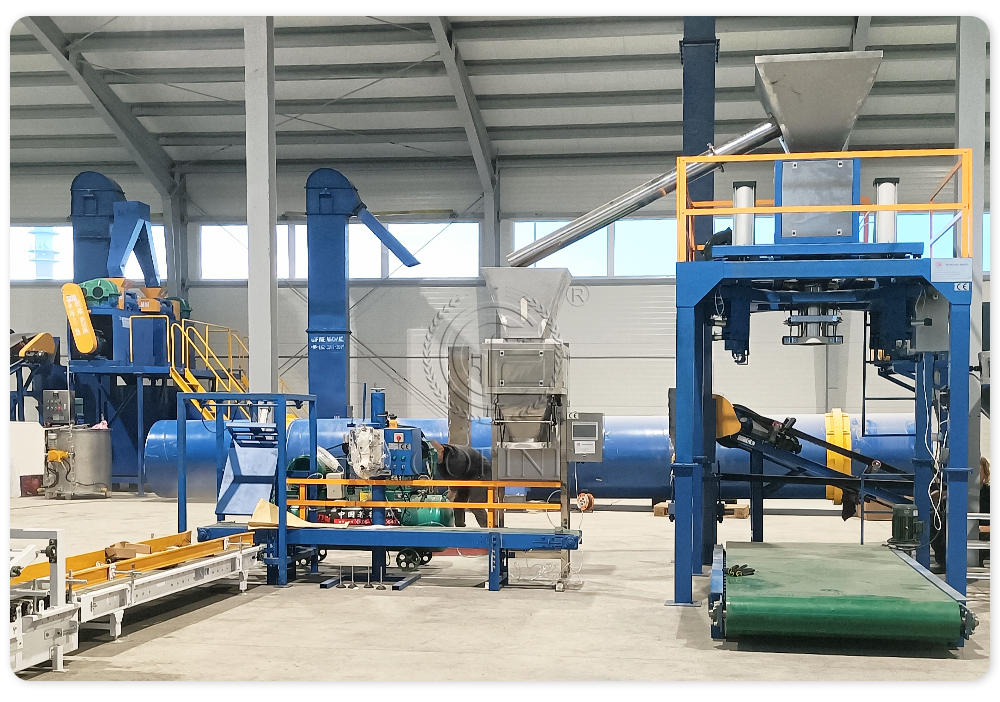

The ton bag packaging machine is a large packaging equipment that integrates weighing, packaging and dust removal. It is usually used for packaging and transporting bulk materials of more than one ton, such as feed, fertilizer, seeds, compost, gypsum, cement, sand and gravel, etc. It adopts stepless speed regulation and can take off the bag by itself after packaging is completed. Equipped with high-precision weighing sensor, automatic tare weighing and drop correction. The ton bag packaging machine can be used in conjunction with other related equipment to form a complete automated fertilizer production line.

Feature of Ton Bag Packaging Machine

1. High degree of automation: It integrates automatic weighing, filling, and sealing, which improves production efficiency.

2. Accurate weighing: High-precision weighing sensor, automatic taring, automatic error compensation.

3. Digital display: intelligent control system, easy to operate.

4. Versatility: able to adapt to different types and specifications of material packaging, and supports customization.

5. Stainless steel material: The material contact part can be made of 304 stainless steel, which has a long service life.

Working Process of Ton Bag Packaging Machine

First, the materials are transported to the feed port of the ton bagging machine through the conveying system. The hanging bag is hung manually, and the pneumatic device automatically tightens the bag mouth. After the equipment is running, the weighing device automatically rises. The fan is responsible for holding up the bag to facilitate subsequent filling of materials. After rising to the position, it will automatically tare and start measuring. The weighing process starts fast and then slows down. Automatic speed adjustment can improve the measurement speed and measurement accuracy. After the material is loaded to the set amount, the sling automatically descends and decouples, and is transported through the conveyor.

Technical Parameter of Ton Bag Packaging Machine

Product Details of Ton Bag Packaging Machine

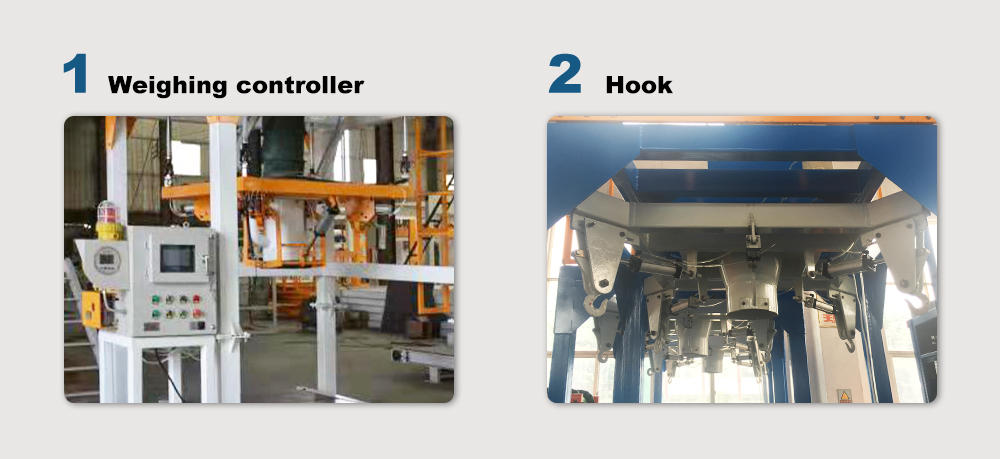

Weighing controller : LCD, automatic zero tracking function, automatic error correction.

Hooks : Special structural design, suitable for a variety of bag types, automatically opens after filling.

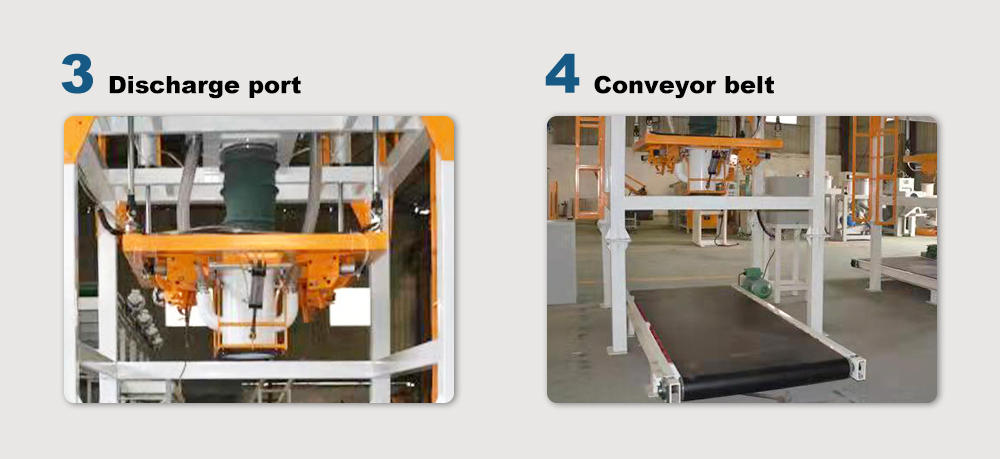

Discharge port : The annular bag clamp design makes the ton bag tightly sealed at the feed port and reduces dust pollution.

Conveyor : The belt is made of PVC material and has good wear resistance. Infinitely variable speed, automatic conveying after packaging is completed.
