High Efficiency Pan Granulator Machine For Fertilizer Making

A high efficiency pan granulator machine is one of the most widely used granulation equipment in modern fertilizer production lines. Designed for both organic and inorganic fertilizer processing, this disc granulator delivers uniform round pellets, high balling rate, and low operation cost for small to medium fertilizer plants. Whether you produce NPK compound fertilizer, organic compost pellets, or mixed trace-element fertilizer, a pan granulator ensures stable continuous production with excellent pellet molding performance. This article covers working principles, key advantages, technical parameters, application scope, selection tips.

What Is a Pan Granulator Machine in Fertilizer Production?

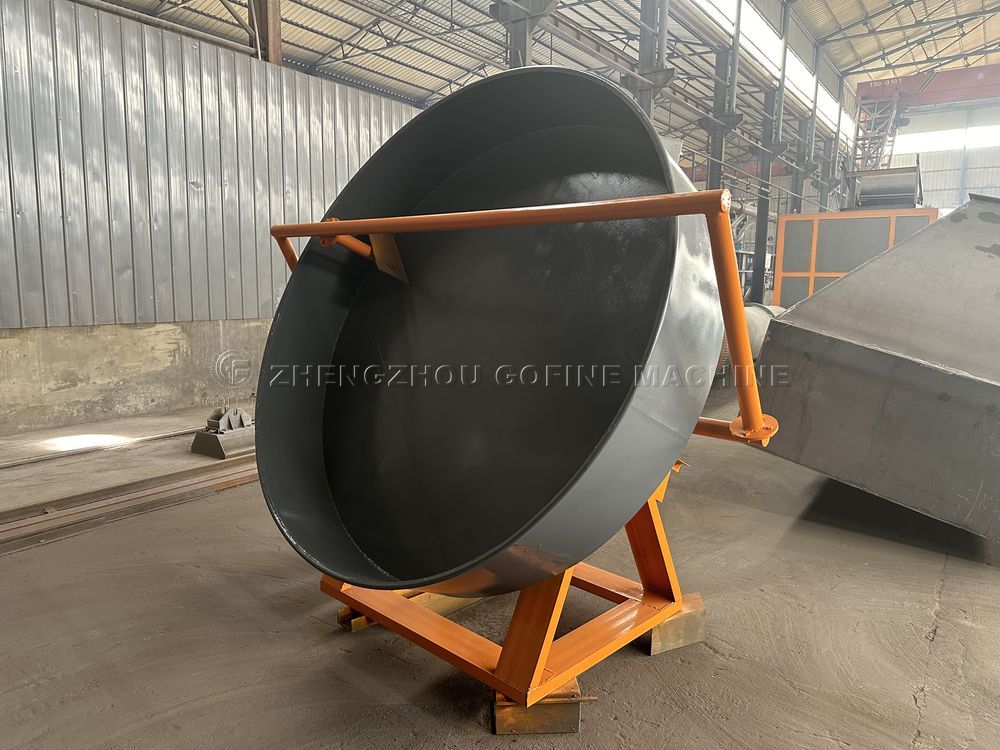

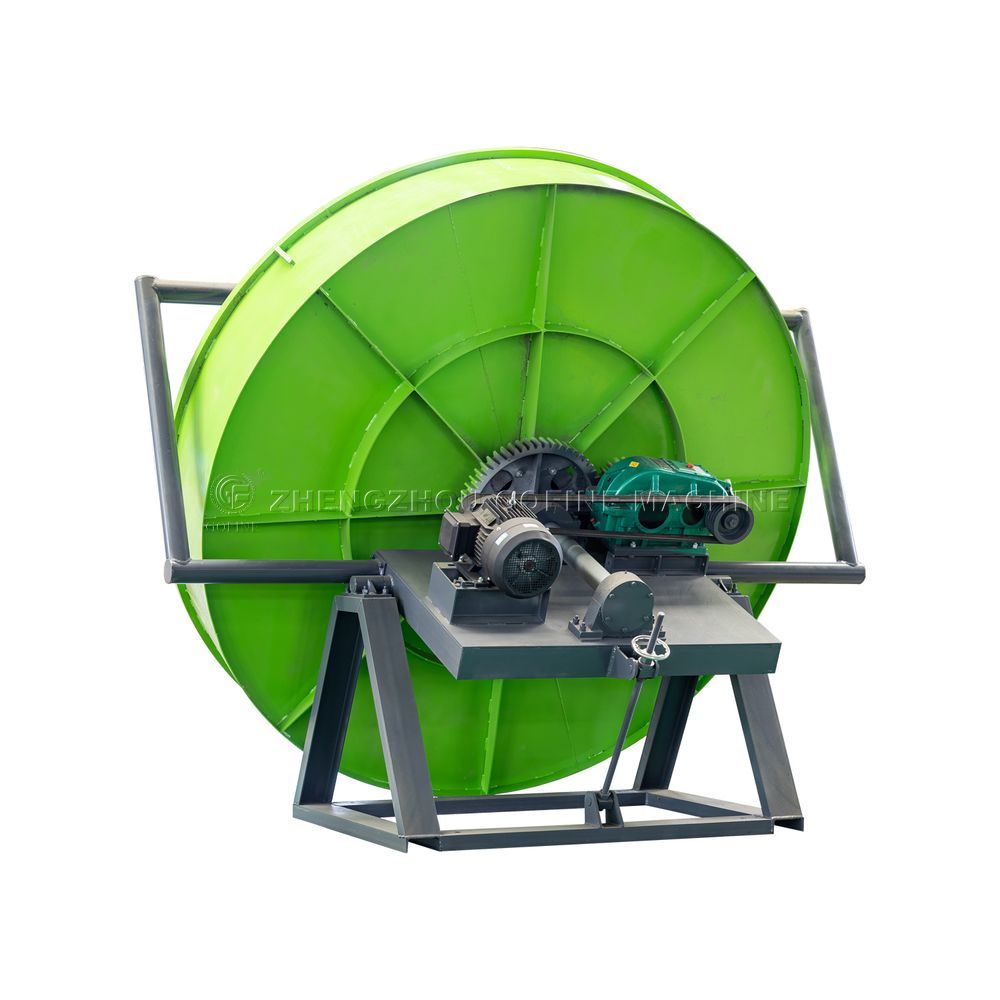

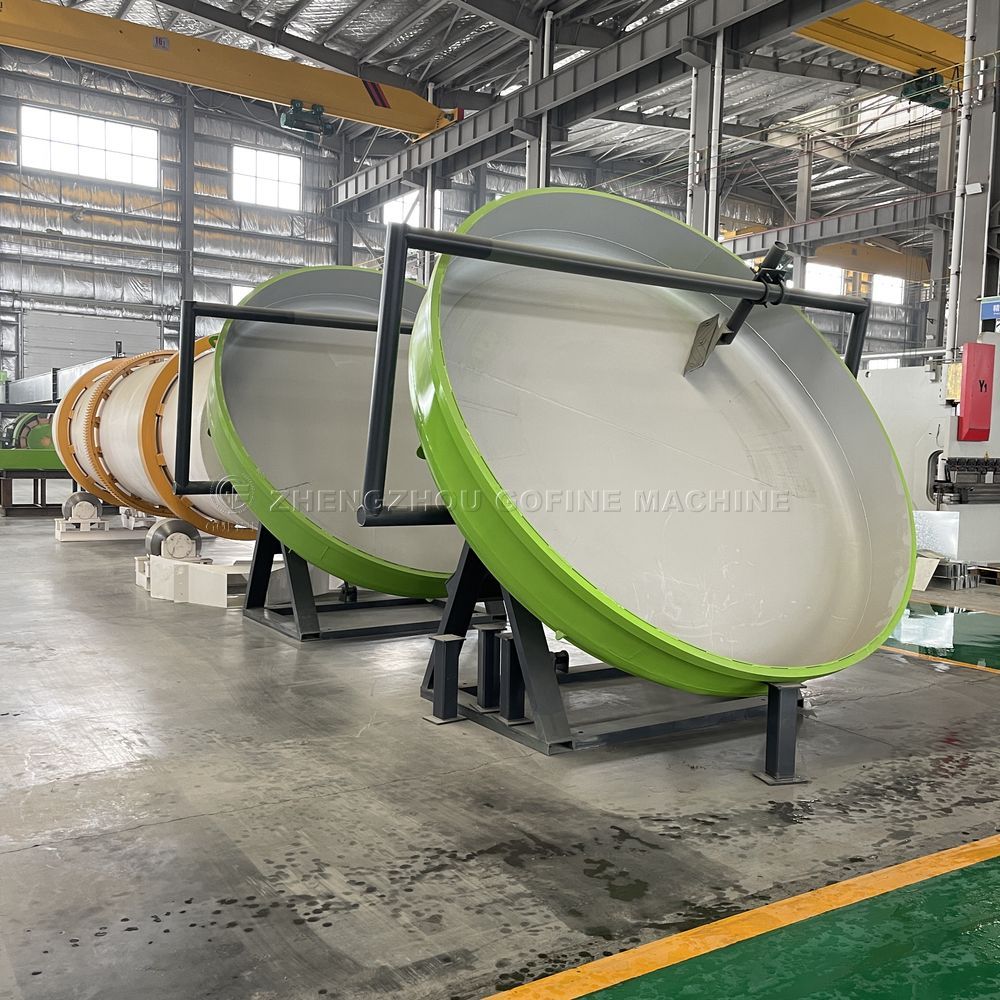

A pan granulator machine, also known as a disc granulator, is a physical granulation device that turns powdered fertilizer raw materials into smooth spherical pellets. It adopts an inclined circular disc structure and relies on mechanical rotation and liquid atomization bonding to complete particle agglomeration. Compared with extrusion granulators and drum granulators, the high efficiency pan granulator features simpler structure, lower investment cost, and better pellet appearance.

This fertilizer granulation machine is universally compatible with diverse raw materials, including chicken manure compost, crop straw powder, urea, ammonium phosphate, potassium chloride, and mineral powder. It is commonly applied in small-scale organic fertilizer production and medium-sized compound fertilizer industrial lines, becoming a mainstream granulation device for global fertilizer manufacturers.

Core Working Principle of High Efficiency Pan Granulator

Understanding the working process helps users maximize the utilization rate of the pan granulator machine. The granulation workflow is simple, stable, and easy to control without complex chemical reactions.

Raw Material Feeding and Mixing

Crushed and evenly mixed fertilizer powder is continuously transported into the rotating granulation disc. The raw material moisture is strictly controlled between 25% and 35% to ensure optimal bonding performance, which is the key to improving pellet forming rate.

Rotational Agglomeration Molding

Driven by the motor, the disc rotates at an adjustable speed. Under centrifugal force and gravity, materials roll cyclically inside the disc. Meanwhile, the atomizing nozzle evenly sprays water or adhesive liquid to bond fine powder into small seed pellets.

Particle Gradation and Discharging

With continuous rotation, small pellets gradually grow into standard-sized fertilizer particles. Qualified spherical pellets automatically overflow from the disc edge due to gravity difference, while unqualified fine powder stays inside for secondary granulation, realizing automatic circulation production.

Key Advantages of High Efficiency Pan Granulator Machine for Fertilizer Making

The popularity of disc granulators in the fertilizer industry stems from their unique advantages in production efficiency, product quality, and operation cost. Below are the core benefits for industrial fertilizer production:

Excellent Granulation Efficiency and High Balling Rate

A high efficiency pan granulator achieves a pellet forming rate above 90%, far higher than ordinary simple granulation equipment. The adjustable disc inclination angle and rotation speed ensure continuous and stable discharging. The hourly output ranges from 1 ton to 10 tons, fully meeting the production demand of small and medium fertilizer factories.

Uniform and Beautiful Fertilizer Pellets

Finished pellets produced by the pan granulator are smooth, round, and evenly sized with high compression strength. The particle diameter can be freely adjusted from 2mm to 8mm according to user requirements. These premium pellets are not easy to break or agglomerate during transportation and storage, greatly improving the commercial value of fertilizer products.

Wide Raw Material Compatibility

This fertilizer granulator is suitable for both organic and inorganic raw materials. It can process livestock manure compost, sludge, humic acid powder, and various inorganic chemical powders. One machine supports multiple fertilizer formulas, helping manufacturers diversify product categories and expand market share.

Low Investment and Simple Operation

Compared with large-scale drum granulation lines, the pan granulator has a lower equipment price and fewer supporting auxiliary machines. It adopts an integrated structure with small floor space. The fully visual granulation process allows workers to observe and adjust parameters in real time. One or two workers can complete the whole production operation, greatly saving labor costs.

Durable Structure and Easy Maintenance

The inner wall of the granulation disc is paved with high wear-resistant rubber lining to prevent material adhesion and reduce equipment corrosion. All core transmission parts are made of high-strength alloy steel. The simple mechanical structure reduces failure rate, and daily maintenance only requires regular lubrication and dust cleaning, lowering long-term use costs.

Main Technical Parameters of Industrial Pan Granulator

For fertilizer plant investors, clear technical parameters are essential for equipment selection. The following mainstream specifications cover common industrial models for reference:

• Disc Diameter: 1500mm - 3200mm (customizable)

• Production Capacity: 1-10 t/h

• Disc Inclination Angle: 35°-55° (adjustable)

• Rotation Speed: 15-30 r/min

• Motor Power: 5.5kw - 30kw

• Granulation Rate: ≥90%

• Finished Pellet Moisture: ≤35%

Common Application Scenarios of Pan Granulator Machine

The versatile high efficiency pan granulator is widely used in multiple agricultural and environmental protection industries, covering most small and medium fertilizer production projects:

Organic Fertilizer Production Plants

Process fermented cow manure, chicken manure, sheep manure, and agricultural waste into organic fertilizer pellets. It improves fertilizer appearance and nutrient utilization rate, meeting the production standards of commercial organic fertilizer.

NPK Compound Fertilizer Factories

Mix nitrogen, phosphorus, potassium raw materials in proportion to produce uniform compound fertilizer pellets. It is suitable for medium-concentration compound fertilizer production and matches simple drying and cooling lines.

Agricultural Waste Recycling Projects

Treat crop straw, mushroom residue, and biogas residue to make recycled fertilizer pellets, realizing harmless treatment and resource reuse of agricultural waste.

Horticulture and Landscape Fertilizer Processing

Produce special slow-release fertilizer pellets for flowers, fruits, and seedlings. The smooth pellet surface is convenient for mechanical fertilization and manual spreading.

How to Choose a Qualified High Efficiency Pan Granulator?

To avoid investment losses and ensure long-term stable production, global buyers need to focus on the following key points when purchasing a pan granulator machine:

Match Production Capacity with Actual Demand

Determine the required hourly output according to factory scale. Small farms are suitable for 1-3t/h mini pan granulators, while medium-sized fertilizer plants can choose 5-10t/h large-disc models to meet mass production needs.

Check Equipment Material and Workmanship

Prioritize granulators with thickened steel plates and high wear-resistant rubber lining. Inferior lining is easy to fall off and cause material adhesion, which will reduce granulation efficiency and increase maintenance frequency.

Confirm Adjustable Performance

Qualified industrial pan granulators support stepless speed regulation and angle adjustment. Flexible parameter adjustment can adapt to raw materials with different humidity and viscosity, ensuring stable granulation effect all year round.

Choose Manufacturers with Complete After-Sales Service

Select professional fertilizer machinery manufacturers with overseas installation, debugging, and after-sales support. Complete spare parts supply and technical guidance can effectively avoid production stagnation caused by equipment failure.

Daily Maintenance Tips to Extend Service Life

Scientific maintenance can keep the high efficiency pan granulator in optimal working condition and extend its service life to more than 8 years. Here are practical maintenance suggestions:

• Clean residual materials inside the disc after daily shutdown to prevent raw material caking from affecting next granulation.

• Add lubricating oil to bearings and transmission gears regularly to reduce mechanical friction loss.

• Check the tightness of belts and bolts every week to avoid loose parts causing vibration and noise.

• Replace worn rubber lining every 1-2 years to ensure anti-adhesion performance.

• Keep the motor and control box dry to prevent short circuit damage in humid working environment.

Pan Granulator VS Other Fertilizer Granulation Machines

To help buyers make clearer comparisons, we sort out the differences between pan granulator, extrusion granulator, and drum granulator:

Conclusion

The high efficiency pan granulator machine for fertilizer making remains a cost-effective and reliable granulation solution for global fertilizer manufacturers. With high granulation rate, beautiful pellet appearance, wide raw material adaptability, low operation cost, and easy maintenance, it perfectly matches the production demands of small and medium organic and compound fertilizer factories.

Whether you are planning a new fertilizer production line or upgrading old granulation equipment, a high-quality pan granulator can effectively improve product competitiveness and create stable economic benefits. If you need customized models, technical parameters, or factory layout solutions, please contact our professional engineering team to get one-stop fertilizer production equipment support.
