High Output Disc Granulator NPK Compound Fertilizer Line

In the modern fertilizer industry, the demand for efficient, high-yield, and high-quality NPK compound fertilizer production equipment is growing rapidly. The high output disc granulator NPK compound fertilizer line has become the core choice for medium and large fertilizer manufacturers worldwide, thanks to its stable performance, high granulation efficiency, and cost-effectiveness. This article will comprehensively introduce the working principle, core advantages, complete configuration, application scenarios, and selection tips of this production line.

What Is a High Output Disc Granulator NPK Compound Fertilizer Line?

A high output disc granulator NPK compound fertilizer line is an integrated production system that takes nitrogen (N), phosphorus (P), and potassium (K) raw materials as the core, with the disc granulator as the key equipment, and completes the entire process from raw material pretreatment to finished product packaging. Unlike traditional low-output granulation lines, this system is designed for large-scale production, with a production capacity ranging from 10 tph to 50 tph, and can even be customized according to enterprise needs, fully meeting the production requirements of medium and large fertilizer plants, agricultural companies, and chemical enterprises.

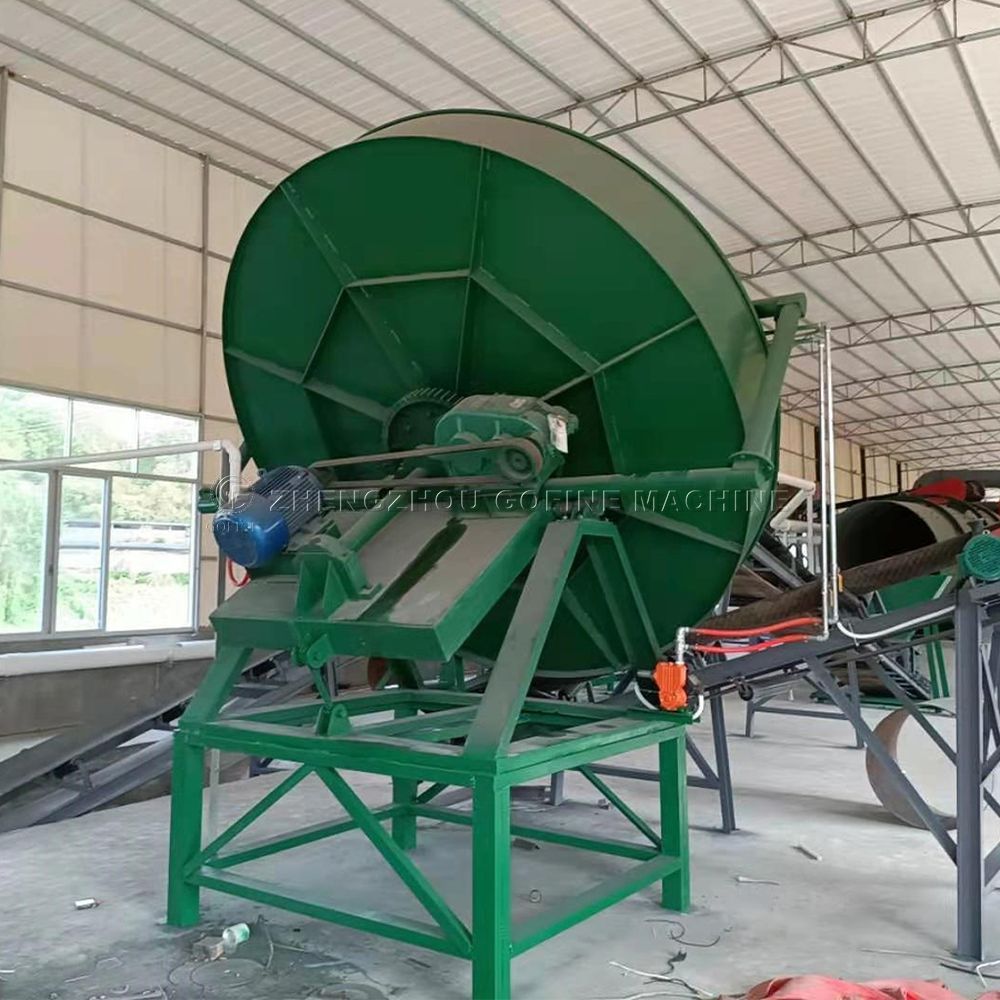

The core of the line is the high output disc granulator, which uses the combined action of centrifugal force, gravity, and friction to agglomerate powdered raw materials into uniform spherical granules through rolling. The entire production line integrates advanced technologies such as automatic batching, precise granulation, energy-saving drying, and intelligent control, realizing continuous, automated, and environmentally friendly production, and becoming an important driving force for the upgrading of the fertilizer industry.

Core Working Principle of High Output Disc Granulator NPK Line

The high output disc granulator NPK compound fertilizer line follows a scientific and efficient production process, which can be divided into 6 key stages, each of which is closely linked to ensure the quality and output of NPK compound fertilizer:

1. Raw Material Pretreatment

First, the raw materials (such as urea, ammonium chloride, monoammonium phosphate, potassium chloride, etc.) are crushed and screened to remove impurities and ensure that the particle size meets the granulation requirements (usually ≤ 1mm). Key equipment in this stage includes chain crushers, rotary screening machines, and conveyor systems, which lay the foundation for uniform granulation later.

2. Precise Batching and Mixing

According to the target formula of NPK compound fertilizer, the pretreated raw materials are precisely proportioned using electronic belt scales or loss-in-weight feeders, with an error range controlled within ±0.5%. Then, the materials are fed into a double-axis mixer for uniform blending, ensuring that the nutrient content of each part of the mixed material is consistent. Modern production lines are usually equipped with DCS or PLC automatic control systems to realize intelligent batching and reduce manual errors.

3. High-Efficiency Disc Granulation

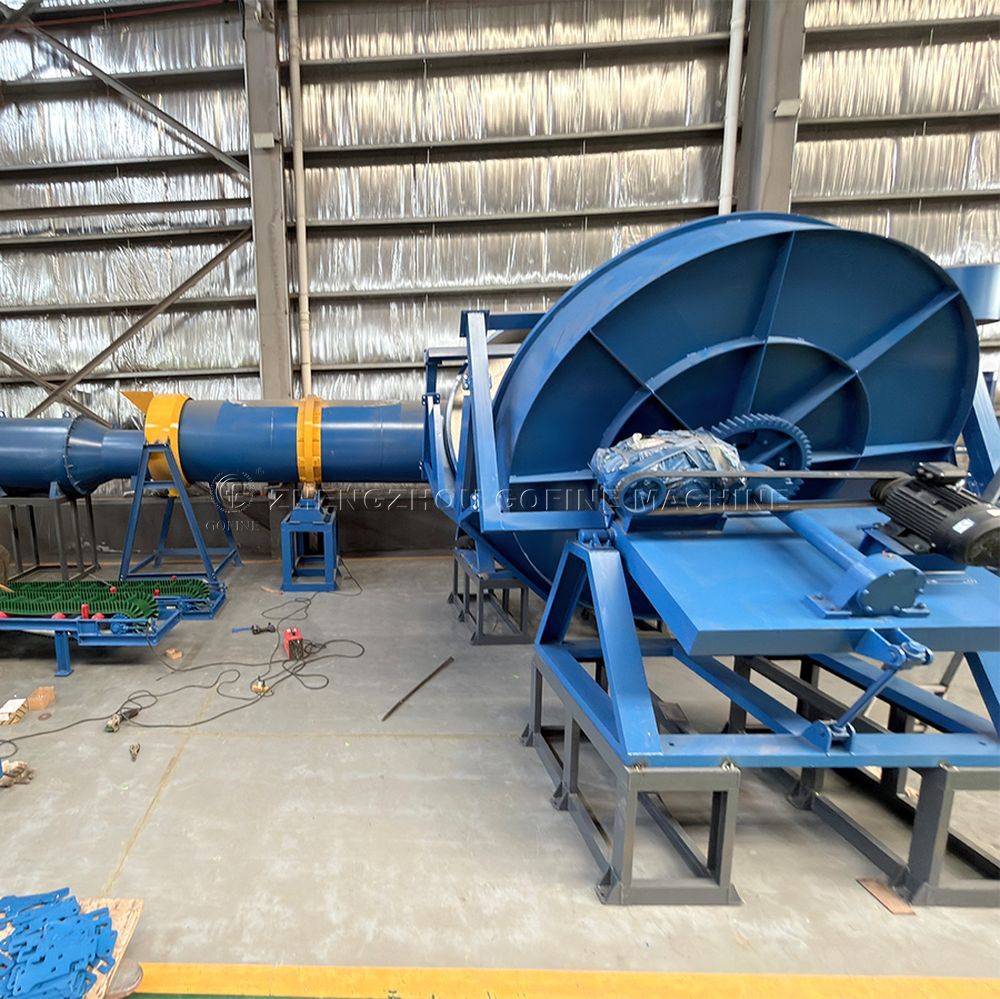

The mixed materials are fed into the high output disc granulator. The inclined rotating disc drives the materials to roll continuously. With the assistance of atomized water spray or binders, the powdered materials gradually agglomerate into spherical granules. The disc's inclination angle (35°-65° stepless adjustment), rotation speed (5-30 rpm), and edge height can be precisely adjusted according to the material characteristics and granule size requirements, ensuring a granulation rate of 80%-95% and uniform granule size (1-10mm customizable).

4. Drying and Cooling

The wet granules produced by granulation enter a rotary dryer, where they contact high-temperature flue gas (250-400°C) from a hot air furnace to remove moisture, reducing the moisture content to below 1% to prevent caking. Then, the dried granules are sent to a rotary cooler to cool down to around 40°C, ensuring the stability of the finished product and facilitating subsequent storage and transportation. The combination of three-layer rotary dryer and counter-flow cooler can reduce energy consumption by 40% compared with traditional equipment.

5. Screening and Coating

After cooling, the granules pass through a multi-layer vibrating screen for grading. Qualified granules (meeting the required size) are sent to a coating machine to spray anti-caking agents, improving the fluidity and storage performance of the finished product. Unqualified granules are returned to the crusher for reprocessing, realizing zero waste of materials. Exhaust gases generated during the process are treated by cyclone dust collectors and wet scrubbers to meet environmental emission standards.

6. Automatic Packaging and Storage

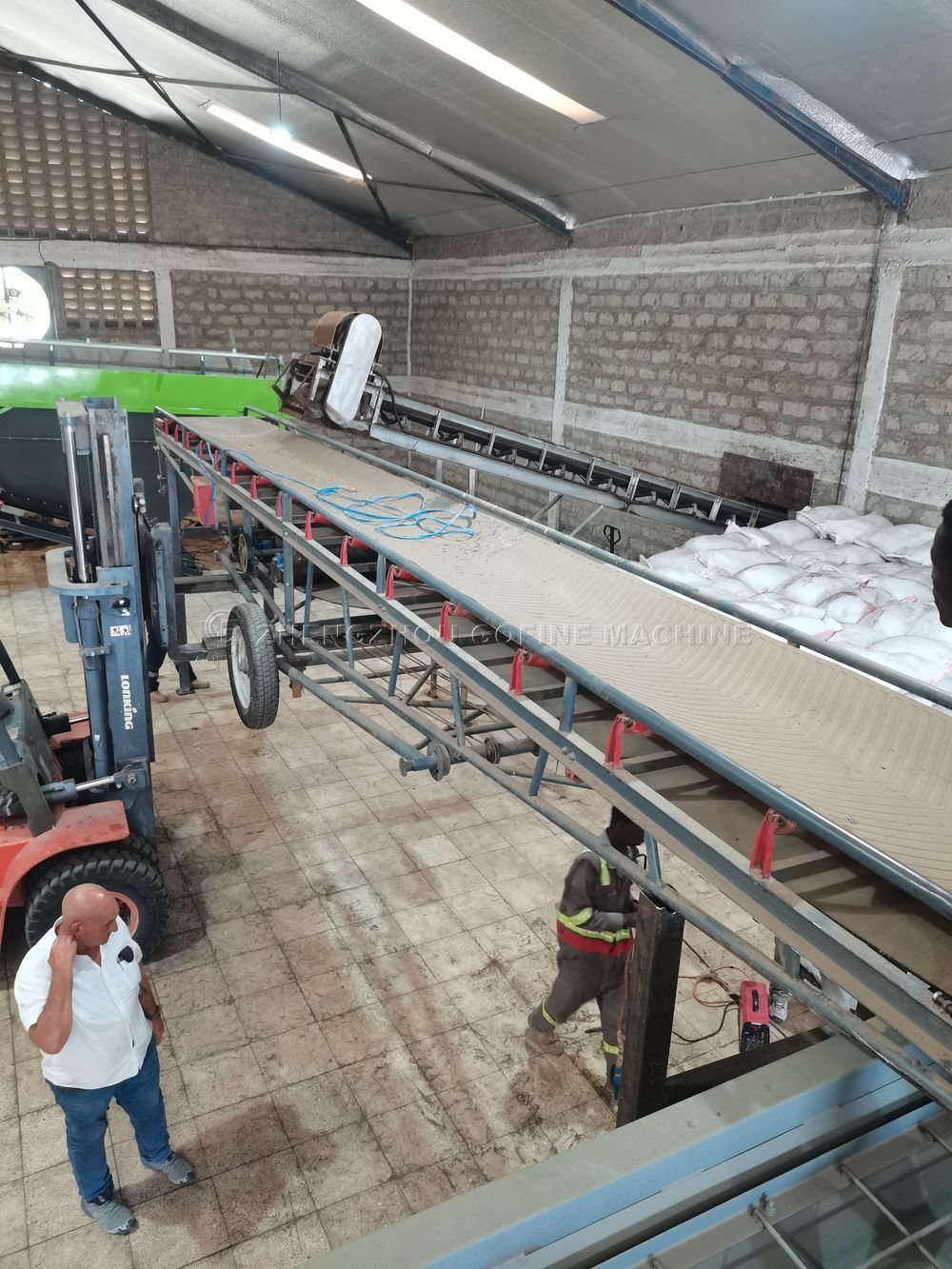

The qualified coated granules are sent to the automatic packaging line, where they are quantitatively packaged by automatic packaging machines, sewn, and palletized by robots, greatly improving packaging efficiency and reducing labor costs. The finished products are then stored in the finished product warehouse, waiting for delivery. The entire packaging process can be intelligently controlled, with a packaging speed of up to 1000 bags per hour.

Key Advantages of High Output Disc Granulator NPK Compound Fertilizer Line

Compared with other types of NPK compound fertilizer production lines (such as drum granulator lines, double roller granulator lines), the high output disc granulator line has obvious advantages, which is the key reason for its popularity in the market:

1. High Output and Efficient Production

As the core advantage, the line has a high production capacity, with a single-line output of 10-50 tph, which can be customized according to the actual needs of enterprises. The continuous production design avoids the waste of time caused by frequent shutdowns and adjustments, and the overall production efficiency is 30% higher than that of traditional low-output lines. It is especially suitable for medium and large fertilizer manufacturers that need large-scale continuous production.

2. High Granule Quality and Stable Performance

The disc granulator adopts a scientific granulation principle, and the produced NPK granules have high sphericity (exceeding 80%), smooth surface, uniform size, and high compressive strength (20-30N), which are not easy to be crushed during storage and transportation. At the same time, the equipment adopts high-quality steel plates and wear-resistant linings, with a service life of more than 10,000 hours, stable operation, and low failure rate, reducing the cost of equipment maintenance and downtime losses.

3. Energy Saving and Environmental Protection

The entire production line adopts energy-saving design: the dryer is equipped with a waste heat recovery device, which can reuse waste heat, reducing energy consumption by 20%-40%; the dust collector system (bag dust collector, cyclone dust collector) effectively collects dust generated during production, with a dust removal rate of more than 99%, meeting the environmental protection standards of various countries. In addition, the wet granulation process does not produce harmful gases, and the waste water can be recycled after treatment, realizing green production.

4. Flexible Operation and Wide Adaptability

The line is easy to operate, and the PLC automatic control system can realize one-key start and stop, parameter adjustment, and fault alarm, reducing the requirement for operators' professional skills. At the same time, it has strong adaptability to raw materials, and can process various NPK raw materials, as well as produce organic-inorganic compound fertilizers by adding organic materials. It can also be adjusted according to the formula to produce compound fertilizers with different nutrient ratios, meeting the needs of different crops and soil types.

5. Cost-Effective and High Investment Return

The investment cost of the high output disc granulator line is only 1/3 to 1/2 of that of the drum granulator line, and the operation cost (electricity, labor, maintenance) is also lower. For enterprises with limited budgets, they can start with a single granulation line, purchase ready-made NPK powder, and only carry out granulation and packaging, reducing the initial investment cost and space. At the same time, the line has a short payback period (usually 1-2 years), and the high output and high-quality products can bring higher economic benefits to enterprises.

Application Scenarios of High Output Disc Granulator NPK Line

Due to its excellent performance and flexible configuration, the high output disc granulator NPK compound fertilizer line is widely used in various fields related to fertilizer production, mainly including:

1. Medium and Large Fertilizer Plants

It is the core production equipment of medium and large fertilizer plants, used for large-scale production of NPK compound fertilizer, organic-inorganic compound fertilizer, and other products. It can meet the market demand for large batches of high-quality compound fertilizer, and help enterprises expand production scale and improve market competitiveness.

2. Agricultural Enterprises and Cooperatives

For large-scale agricultural enterprises and planting cooperatives, the line can produce customized NPK compound fertilizer according to the soil conditions and crop needs of their own farms, improving the utilization rate of fertilizer, reducing the cost of fertilizer use, and promoting the increase of crop yield and quality.

3. Chemical and Mining Enterprises

Mining and chemical enterprises can use this line to process materials such as phosphate rock powder, ammonium sulfate, potassium salts, limestone, or carbon black into commercial compound fertilizer pellets, realizing the comprehensive utilization of resources and expanding the product range.

4. International Export and Large-Scale Projects

With the advantages of high output, stable quality, and energy saving and environmental protection, the line is widely exported to Southeast Asia, Africa, South America, and other regions, and is suitable for large-scale NPK compound fertilizer production projects in various countries, meeting the local agricultural development needs.

How to Choose a High-Quality High Output Disc Granulator NPK Line?

Choosing a suitable high output disc granulator NPK compound fertilizer line is crucial to the production efficiency and product quality of enterprises. When selecting, you should focus on the following points:

1. Clarify Production Needs

First, determine the expected production capacity (tph), the type of NPK compound fertilizer to be produced (pure NPK, organic-inorganic compound fertilizer, etc.), and the granule size requirements, so as to select the corresponding model and configuration. For example, enterprises with a daily output of less than 50 tons can choose a small and medium-sized line, while those with a daily output of more than 200 tons need a large-scale high-output line.

2. Pay Attention to Equipment Quality and Configuration

Check the quality of key equipment (disc granulator, mixer, dryer, etc.), such as the material of the disc (high-quality steel plate), the wear resistance of the lining, and the stability of the transmission system. At the same time, pay attention to the configuration of auxiliary equipment, such as whether the batching system is precise, whether the dust removal equipment meets environmental standards, and whether the automatic control system is intelligent, so as to ensure the stable operation of the entire line.

3. Consider After-Sales Service

Fertilizer production equipment needs long-term operation, so perfect after-sales service is essential. When choosing a manufacturer, you should check whether it provides installation, commissioning, training, and maintenance services, and whether the after-sales response is timely, so as to solve the problems encountered in the production process in a timely manner and avoid affecting production progress.

4. Focus on Cost-Effectiveness

Do not blindly pursue low prices, but comprehensively consider the investment cost, operation cost, service life, and output benefits of the line. Choose a line with reasonable price, stable performance, and high energy efficiency, so as to maximize the investment return. For example, lines with waste heat recovery devices and intelligent control systems can save a lot of operation costs in the long run.

Conclusion

The high output disc granulator NPK compound fertilizer line is a high-efficiency, energy-saving, and environmentally friendly production equipment that adapts to the development trend of the modern fertilizer industry. It has the advantages of high output, high granule quality, flexible operation, and cost-effectiveness, and is widely used in medium and large fertilizer plants, agricultural enterprises, and chemical enterprises around the world. By understanding its working principle, core advantages, and selection tips, enterprises can choose a suitable production line, improve production efficiency, reduce costs, and gain a competitive edge in the market.

If you are looking for a high-quality high output disc granulator NPK compound fertilizer line, we can provide customized solutions according to your actual needs, ensuring that the equipment meets your production requirements and helps you achieve better economic and social benefits. Contact us today to learn more details!
