Plate and frame filter presses and chamber filter presses are both commonly used types of industrial filtration equipment, mainly used for solid-liquid separation and particle classification of various slurries. Although they both belong to the category of filter presses, they have obvious differences in structure and working principle.

1. Structural features

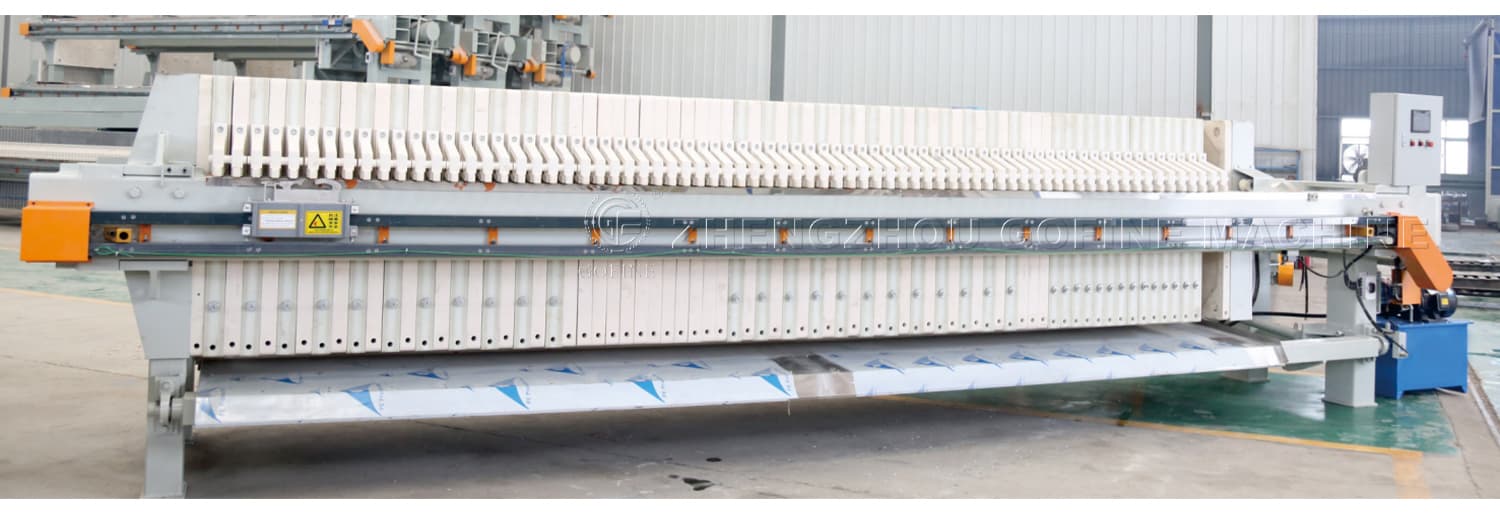

The plate and frame filter press is mainly composed of plate frame, filter cloth, hydraulic system, frame and electronic control system. Among them, the plate frame is the main working part, which is composed of multiple plates and frames, and the filter cloth is filled between the plates and frames to form a filter chamber. The hydraulic system provides a power source for the plate and frame filter press, pushing the plate frame to press the filter cloth so that the filtrate can be discharged smoothly. The frame and electronic control system provide guarantee for the stable operation of the plate and frame filter press.

In contrast, the chamber filter press is mainly composed of a chamber, filter plate, hydraulic system, filter medium and control system. Among them, the chamber is the main working part, which is composed of multiple filter plates and end plates, and the filter medium is filled between the filter plates and end plates. The hydraulic system also provides a power source for the chamber filter press, pushing the filter plate to press the filter medium to make the filtering effect better. The control system provides support for the stable operation of the chamber filter press.

2. Working Principle

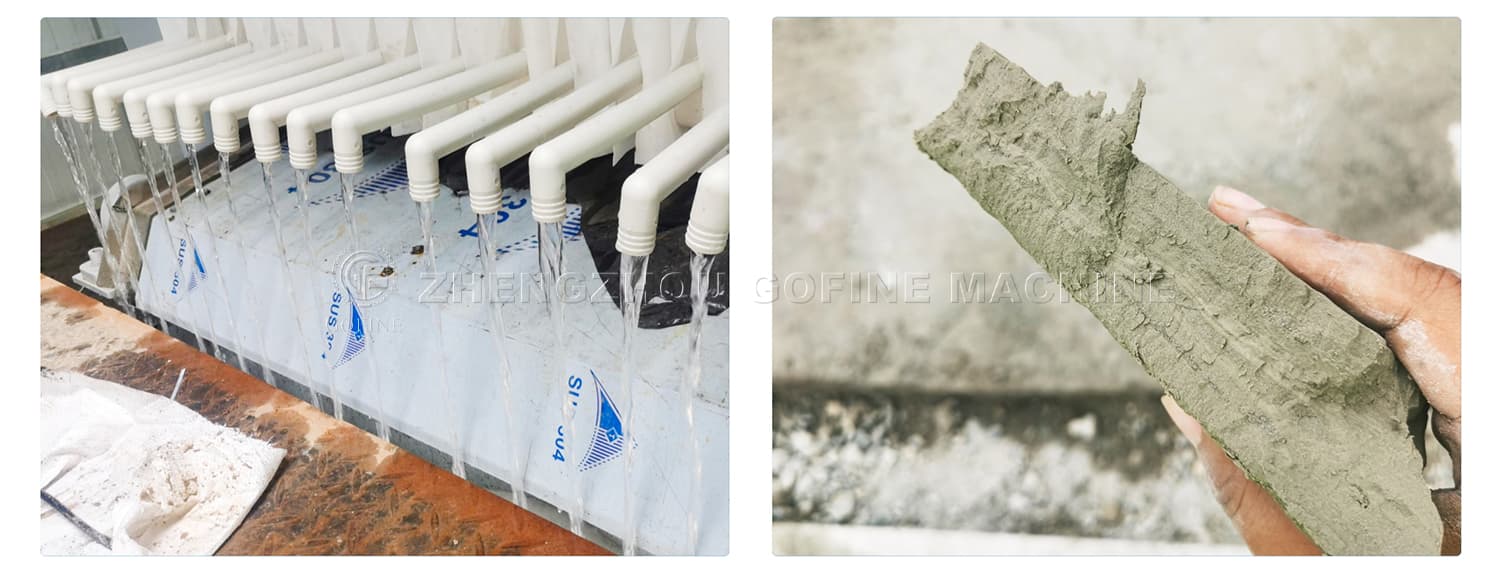

The working principle of the plate and frame filter press is relatively simple. During the filtering operation, the slurry enters the filter chamber from the feed inlet. Under the action of pressure, the liquid in the slurry is discharged from the filtrate port through the filter cloth, while the solids are left in the filter chamber. As the filtering operation proceeds, the solids gradually accumulate at the bottom of the filter chamber to form a filter cake. When the filter cake accumulates to a certain thickness, it can be unloaded from the filter chamber to complete the entire filtering process.

The working principle of the chamber filter press is more complicated. During the filtering operation, the slurry enters the chamber from the feed inlet. Under the action of pressure, the liquid in the slurry is discharged from the filtrate port through the filter medium, while the solids are left inside the chamber. As the filtering operation proceeds, the solids gradually accumulate at the bottom of the chamber to form a filter cake. When the filter cake accumulates to a certain thickness, it can be unloaded from the chamber to complete the entire filtering process.

3. Application Scope

As a commonly used industrial filtration equipment, the plate and frame filter press has a wide range of applications. It is suitable for separation and filtration of various solid and liquid materials, such as ceramics, petroleum, pharmaceuticals, environmental protection and food industries.

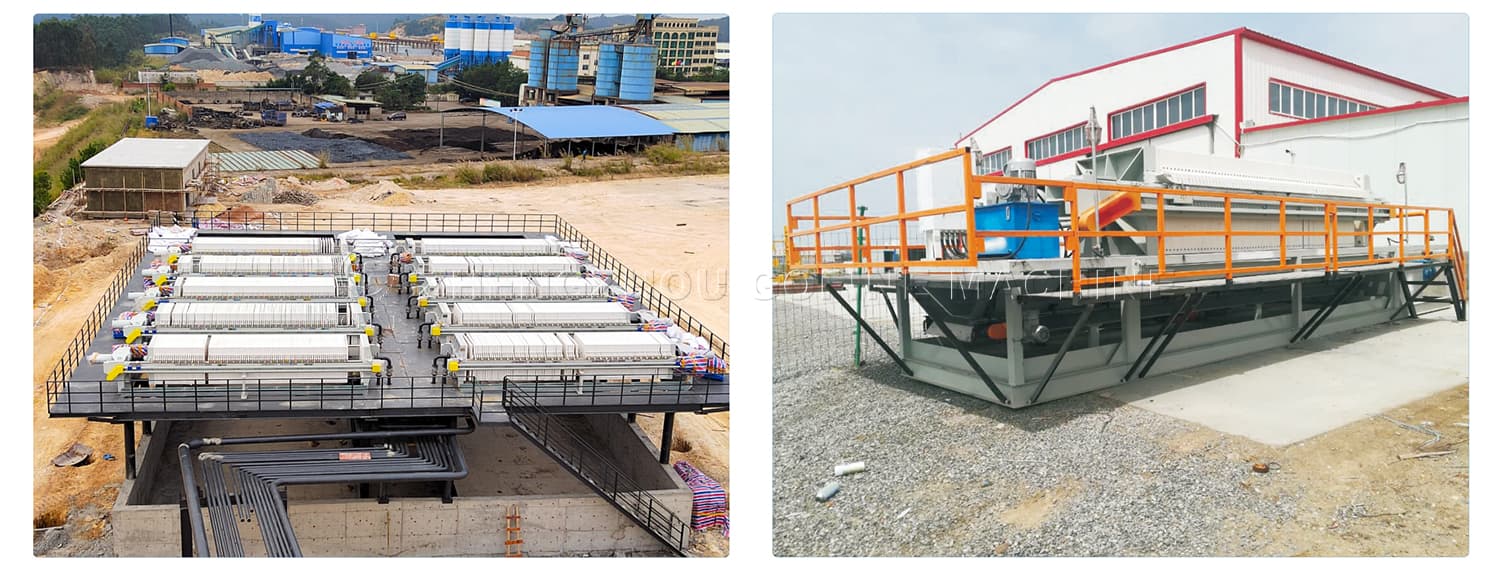

The chamber filter press is mainly used for solid-liquid separation and particle classification of various slurries in industrial production, such as steel, coal, chemical and mineral processing industries.

4. Advantages and Disadvantages

The advantages of the plate and frame filter press are its simple structure, convenient operation, small footprint, low cost and long service life. However, due to its small filtration area, the production capacity of the plate and frame filter press is limited and it is not suitable for large-scale production operations. In addition, due to the use of manual operation, the operation of the plate and frame filter press is not fast and convenient enough.

The advantages of the chamber filter press are its large filtration area, strong production capacity, high degree of automation and large output. This makes the chamber filter press suitable for large-scale production operations. In addition, the chamber filter press also has the characteristics of good sealing performance, energy saving and environmental protection and long service life. However, due to its complex structure, cumbersome operation, difficult maintenance and high cost, its application range is subject to certain restrictions.

In short, as two different industrial filtration equipment, plate and frame filter press and chamber filter press have obvious differences in structural characteristics, working principles, application scope, advantages and disadvantages, etc. When choosing to use, it is necessary to choose the appropriate equipment type according to the actual situation to achieve the best filtration effect and economic effect.
