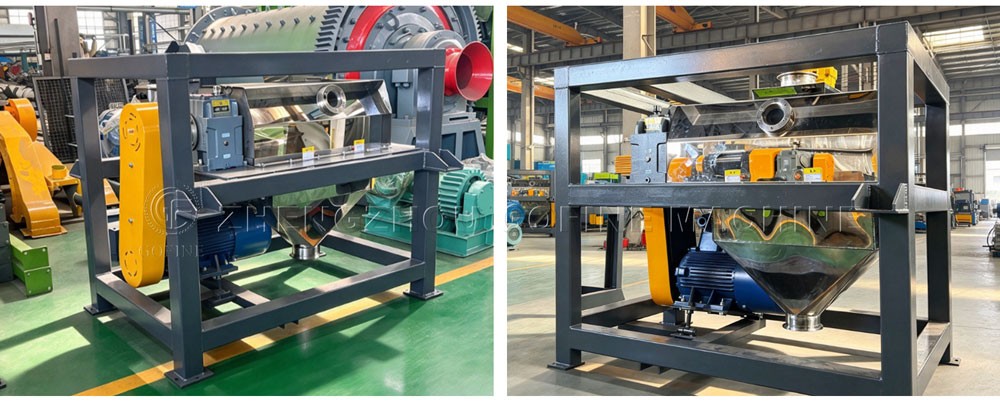

Custom Double Roller Extrusion Granulator | Dust-Free Roller Compactor

In modern chemical and fertilizer processing, dry powder compaction presents a major operational challenge. Granulating materials like ammonium sulfate, potassium chloride, NPK blends, rare earth powders, and fine mineral salts often generates significant fugitive dust. Open feeding chutes and uncovered discharge points compromise worker safety, breach environmental regulations, and result in costly material loss.

To solve these workplace hazards, our machinery workshop manufactures a customized double roller extrusion granulator. Engineered with full stainless steel dust covers at both intake and discharge points, alongside durable transparent inspection windows, this customized granulator machine delivers completely closed-loop, dust-free dry compaction without sacrificing visual operational control.

Engineered for Dust-Free Operation & Real-Time Inspection

Standard roll compactors with open hoppers rely on ambient air extraction hooding, which rarely captures all airborne dust particles during high-pressure roller engagement.

Our custom design incorporates an integrated containment system engineered directly into the granulator body:

1. Sealed Stainless Steel Dust Enclosures (Intake & Discharge)

Zero Ambient Dust Emissions: Heavy-gauge SUS304 or SUS316 stainless steel covers enclose the top feeding hopper and bottom discharge chute.

Corrosion & Wear Resistance: Stainless steel construction resists aggressive chemical corrosion from acidic or alkaline mineral salts, eliminating paint peeling, rust contamination, and liner degradation.

Direct Dust Collection Integration: Dust hoods feature pre-engineered extraction flanged ports, allowing direct connection to plant baghouse systems or pneumatic vacuum conveyors.

2. Impact-Resistant Transparent Inspection Windows

Real-Time Visual Monitoring: Sealed enclosures often leave operators blind to material flow. Our custom dust covers feature high-clarity, shatterproof polycarbonate / tempered glass windows.

Safe Inspection Without Downtime: Operators can visually monitor material distribution across the roller face, inspect roller bite engagement, and track sheet formation without opening guards or interrupting production.

Quick-Release Maintenance Access: Windows are equipped with quick-latch seals, allowing rapid cleaning or internal clearing during recipe changeovers.

The Advantages of Dry Double Roller Extrusion Granulation

Beyond its custom dust containment features, double roller compaction remains the most energy-efficient granulation technology for moisture-sensitive compounds:

• No Binder & No Drying Required: Operates entirely via ambient mechanical compaction (high-pressure rolling). Because no water or liquid binder is added, you save up to 50%+ in energy costs by eliminating rotary dryers and coolers.

• High Single-Pass Yield: Materials are squeezed into dense flat sheets, then gently crushed and classified into hard, uniform spherical or pillow-shaped pellets (2.0--5.0 mm).

• Heavy-Duty Wear Alloys: Counter-rotating rollers are forged from specialized wear-resistant alloy steel, heat-treated for long service life when processing abrasive mineral salts.

Dust-Free Dry Granulation Process Flow

1. Sealed Intake & Inspection: Dry powder feeds into the top stainless steel hopper. Operators verify smooth material flow through the top inspection window.

2. High-Pressure Rolling: The powder is pulled between two synchronized, counter-rotating alloy rollers, forming dense compaction flakes.

3. Crushing & Granule Sizing: Below the rollers, an integrated rotary crusher breaks the compacted flakes, passing them through a sizing screen.

4. Clean Discharge: Finished granules drop through the lower stainless steel discharge chute into storage or packaging lines, with dust pulled cleanly into the extraction manifold.

Why Source Custom Granulators Directly from Our Workshop?

• Direct Manufacturer Pricing: Eliminate middleman trade margins by buying direct from our specialized heavy machinery workshop.

• 100% Custom Engineering: We tailor dust cover dimensions, window placements, intake flange specs, motor drive types (explosion-proof / VFD), and roller pocket shapes to your exact process specs.

• Complete Turnkey Line Integration: We provide full CAD/3D plant layouts, civil foundation specs, and electrical PLC control integration for complete dry fertilizer and chemical packaging lines.

Frequently Asked Questions

Q1: Why is an enclosed dust cover with inspection windows necessary for double roller extruders?

A: Dry powder compaction generates fine airborne particles that disrupt factory air quality and cause material waste. A stainless steel enclosure keeps the line 100% dust-free, while transparent inspection windows allow operators to monitor material flow and compaction quality without opening safety guards or causing dust leaks.

Q2: What materials are ideal for dry double roller extrusion?

A: Double roller extrusion is ideal for low-moisture powders (≤5% water content) that compact under high pressure, including ammonium sulfate, potassium chloride (KCl), urea blends, NPK fertilizers, cat litter clays, sodium cyanurate, and inorganic mineral salts.

Q3: How do you clean and maintain the inspection windows on the dust covers?

A: The inspection windows are constructed from chemical-resistant, non-scratching materials. They feature quick-release latches and smooth interior rubber seals, allowing operators to wipe down or inspect the window pane during routine maintenance in seconds.

Request Your Custom Equipment Proposal & Workshop Video

Ready to eliminate dust emissions and boost compaction efficiency on your granulation line?

Contact our engineering team today with your target material, hourly throughput (t/h), and custom housing requirements to receive a CAD drawing, workshop video, and direct factory price quote within 24 hours!
