Looking to turn compost, animal manure, and organic waste into high-quality fertilizer pellets? The Pan Granulator, also known as the Disc Granulator, is a proven solution for organic fertilizer pellet production. It’s ideal for small to medium-scale fertilizer plants that require cost-effective, uniform, round granules with a high granulation rate.

What Is a Pan Granulator?

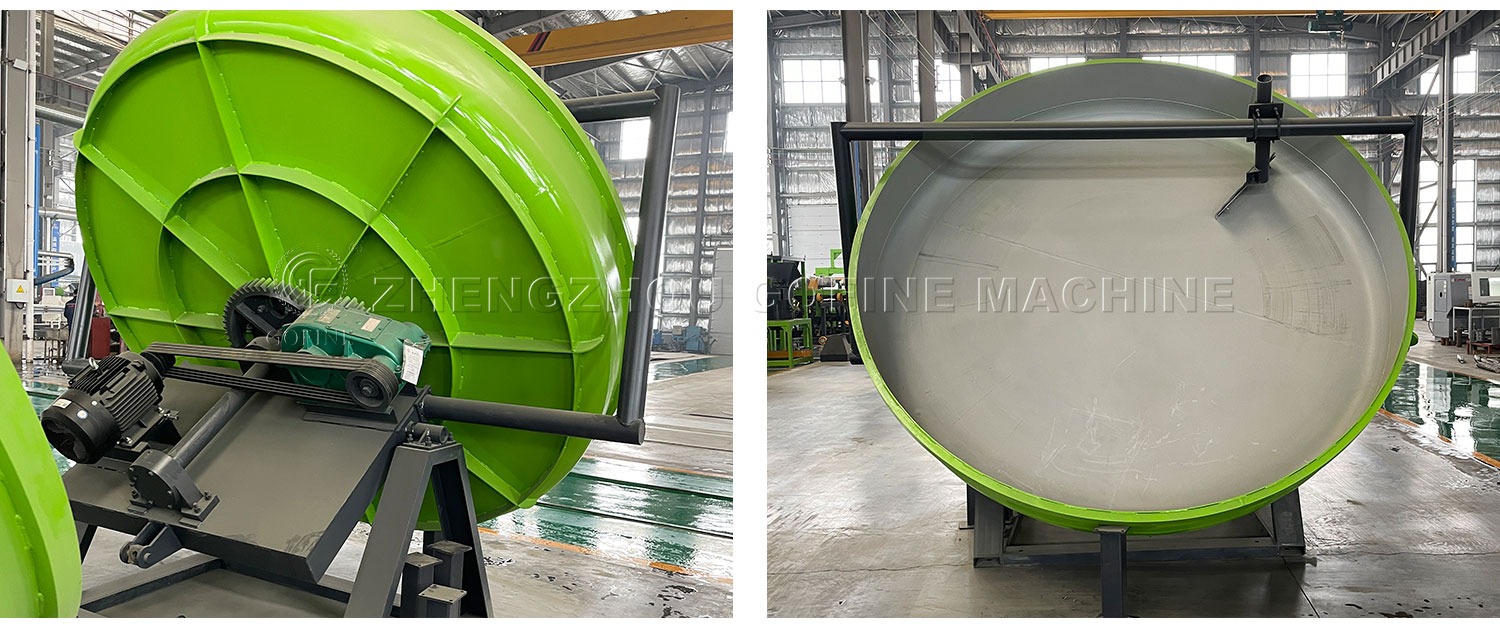

A Pan Granulator is a circular disc-shaped machine equipped with a motor, reducer, spray system, and scraper. It granulates powdery organic materials into semi-spherical pellets by centrifugal force and moisture adhesion. The angle of the disc and the speed of rotation can be adjusted to control granule size and shape.

At Gofine Machine, we manufacture and supply durable, high-performance pan granulators specifically designed for manure composting, bio-organic fertilizer, and humic acid-based fertilizers.

Key Features of Our Pan Granulator Machine

Granule shape: Round or semi-round (2–6 mm)

Moisture requirement: 25%–35%

Granulation rate: ≥90%

Adjustable disc angle: 35°–55° for better balling effect

Stainless steel lining: Anti-corrosion and long life

Capacity range: 0.5 – 6 tons/hour

Compact design: Easy to install and operate

Working Process

Material Feeding: Powdered material is fed onto the rotating disc.

Binder Spraying: A spraying system evenly distributes a binder (such as water or a liquid solution) onto the material.

Granule Formation: The rotating disc, combined with the binder, causes the material to roll and collide, gradually forming spherical particles.

Discharge: As the granules reach the desired size, they are discharged from the edge of the disc.

Continuous Operation: The process is continuous, with constant feeding and discharge.

The resulting granules offer improved handling, storage, and application properties.

Suitable Raw Materials for Pan Granulation

Optional Equipment for a Complete Organic Fertilizer Production Line

To maximize efficiency, we can provide a full organic fertilizer production line configuration:

Step Equipment

Fermentation Compost Turner

Crushing Chain Crusher

Mixing Horizontal Mixer

Granulation Pan Granulator

Drying (optional) Rotary Dryer

Screening Rotary Screener

PackingAutomatic Bagging Machine

Why Choose Gofine Machine?

10+ years of experience in fertilizer production machinery

Exported to 60+ countries: India, Indonesia, Nigeria, Egypt, Brazil, etc.

Support for custom plant layout and capacity design

CE & ISO certified manufacturing

On-site installation & training available

Multilingual support and responsive after-sales service

Get a Free Quote for Your Organic Fertilizer Granulation Project

Looking to start a manure compost pellet plant or upgrade your current system with a reliable pan granulator machine?

We’re here to help you build a complete, profitable organic fertilizer production line.
