Bio-Organic Fertilizer Flat Die Pellet Mill Production Line

Product Overview

Converting raw, fermented biomass into high-density agricultural inputs requires dedicated machinery that can handle high moisture and fibrous structures. Our heavy-duty bio-organic fertilizer flat die pellet mill production line provides a turnkey, automated solution for modern waste-to-fertilizer processing plants.

Designed specifically to bypass the high-heat limitations of traditional ring die mills, this specialized system compresses organic mass with minimal friction. This specific processing layout safeguards beneficial soil microbes while establishing a continuous, clog-free loop from raw compost input to precisely weighed, packaged bags.

Technical Features & Engineering Focus

• High-Moisture Extrusion: Unlike standard pelletizers, this flat die fertilizer granulator easily processes dense organic compost with a high moisture content of 20% to 40%, eliminating the need for extensive pre-drying loops.

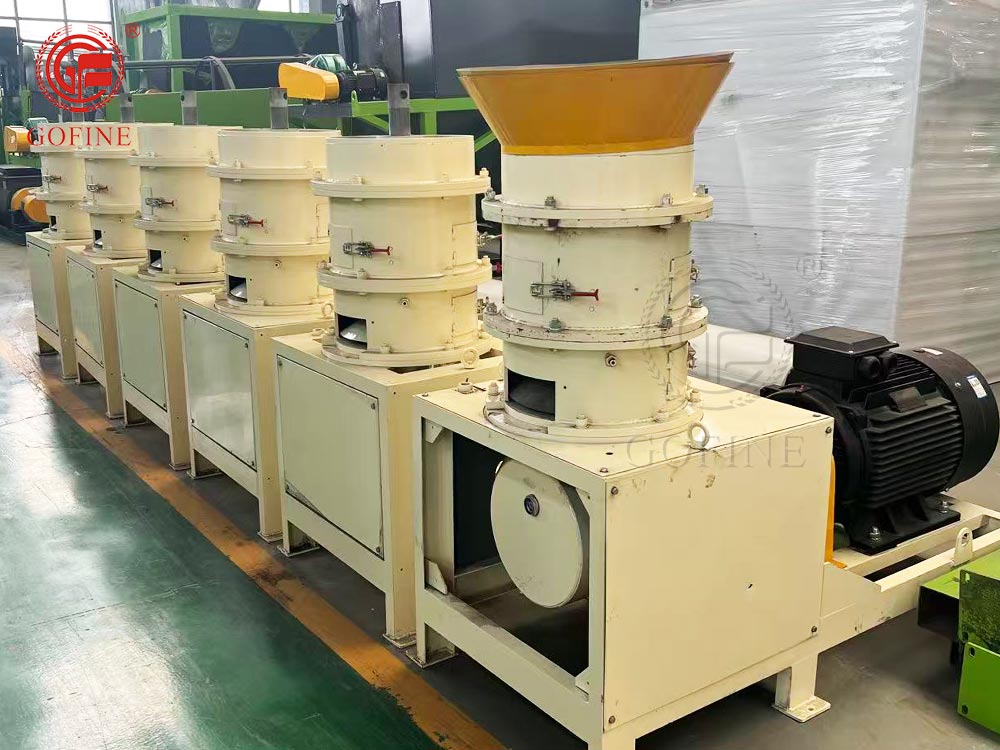

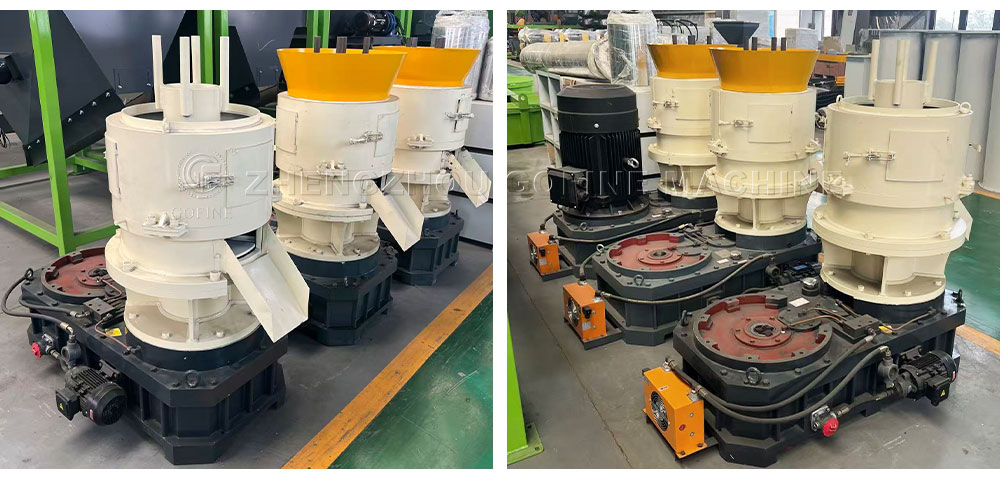

• Low-Speed, High-Torque Gearbox: Driven by a heavy-duty industrial reduction gear, the lower operational speed prevents heat degradation, ensuring that essential biological bacteria and humic acids remain active.

• Heavy-Duty Alloy Steel Configuration: The flat die plates and heavy compression rollers are forged from premium, wear-resistant alloy steel and undergo proprietary vacuum heat treatment to triple their operational lifespan when grinding abrasive organic fibers.

• Variable Pellet Parameters: Operators can easily adjust the integrated cutting knives and swap out die plates to produce variable pellet diameters ranging from 2mm to 8mm based on specific agricultural market demands.

High-Intent Industrial Applications

This versatile bio-organic fertilizer flat die pellet mill production line is engineered to process a diverse range of raw materials, making it the ideal choice for large-scale agricultural operations, municipal recycling centers, and commercial fertilizer plants:

• Livestock & Poultry Manure Upcycling: Efficiently solidifies sticky, fermented animal wastes—including chicken manure, cow dung, pig manure, and sheep waste—into dense, low-odor commercial pellets.

• Agricultural Residue & Crop Processing: Converts high-fiber agricultural byproducts, such as corn stalks, wheat straw, rice husks, peanut shells, soybean meal, and mushroom substrates, into organic soil conditioners.

• Industrial Organic Waste Reclamation: Reclaims rich nutrients from industrial processing waste streams, including sugarcane bagasse, vinasse, spent coffee grounds, brewery spent grains, and municipal sewage sludge.

• Humic Acid & Custom Microbe Blending: Easily handles complex, premium soil-health formulations by smoothly pelletizing mixtures of raw peat, lignite-derived humic acid, and active microbial inoculants without damaging the biological additives.

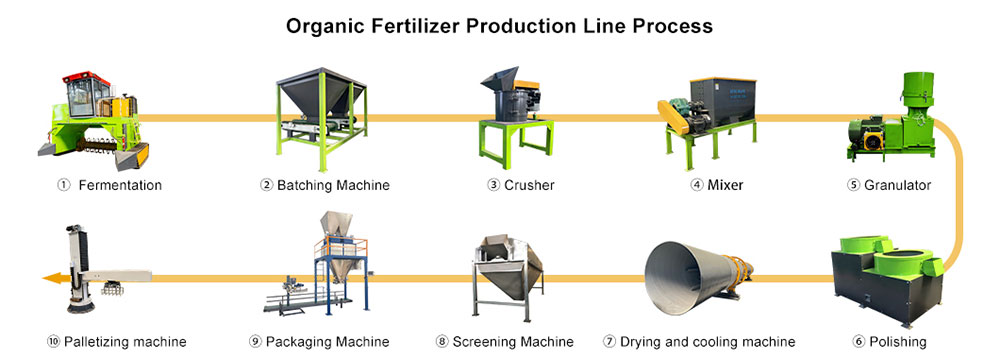

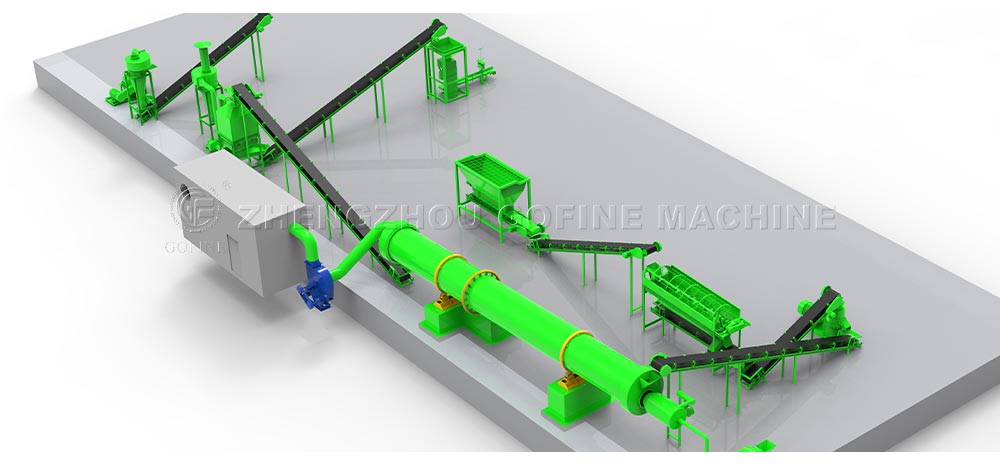

Production Line Workflow

Step 1: Raw Material Pre-Treatment: Composted livestock manure or crop waste is systematically directed through a heavy-duty pulverizer to eliminate moisture-clogged lumps and ensure a fine, uniform material base.

Step 2: Precision Nutrient Blending: The powdered compost is transferred to a horizontal batch mixer where trace minerals, bentonite, or microbial inoculants are thoroughly integrated.

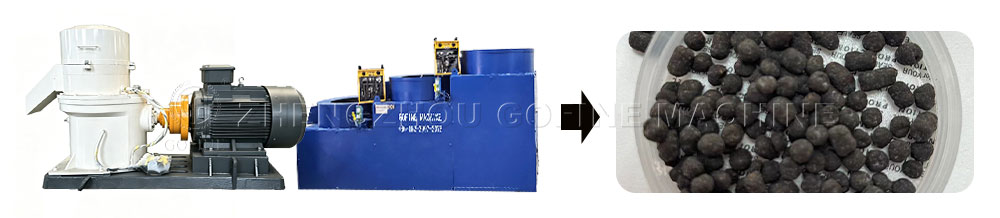

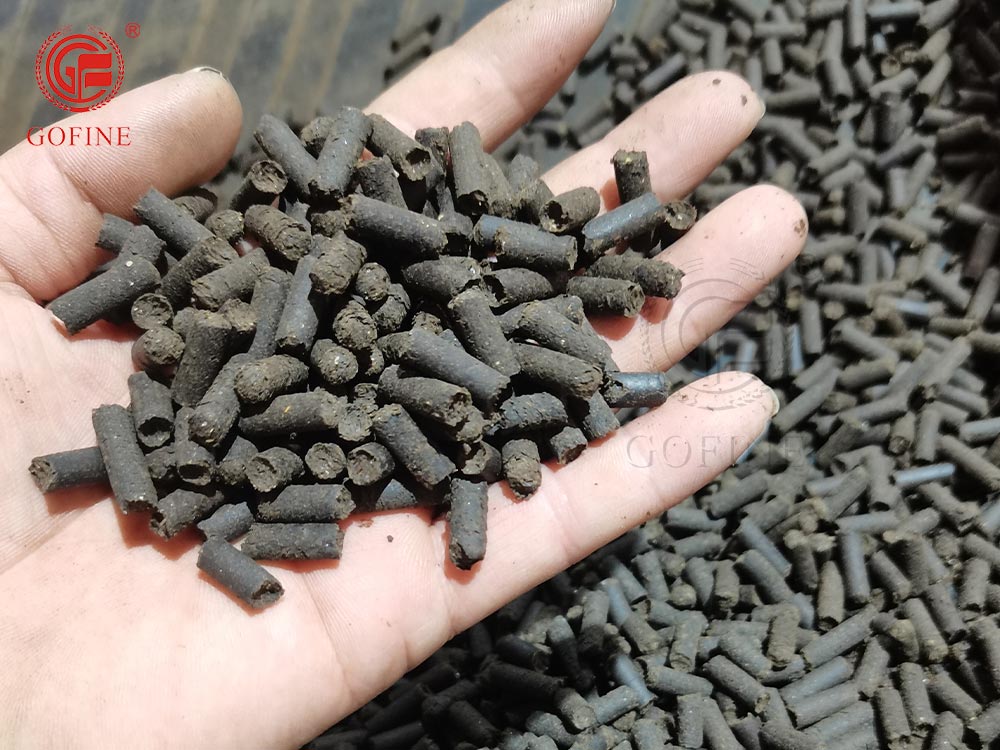

Step 3: Uniform Pelletizing: The free-flowing powdery blend is metered into the main organic fertilizer production line where heavy vertical rollers press the material through the flat die holes to form dense, uniform columns.

Step 4: Cooling & Structural Conditioning: Freshly extruded pellets travel through a counterflow cooling machine to steadily reduce temperature and moisture, curing the pellet structure to maximize mechanical hardness.

Step 5: Automated Weight Sorting & Packaging: Qualified pellets pass a rotary screen to separate dust, moving straight to a semi-automatic packaging machine for rapid bag-sealing and shipping preparation.

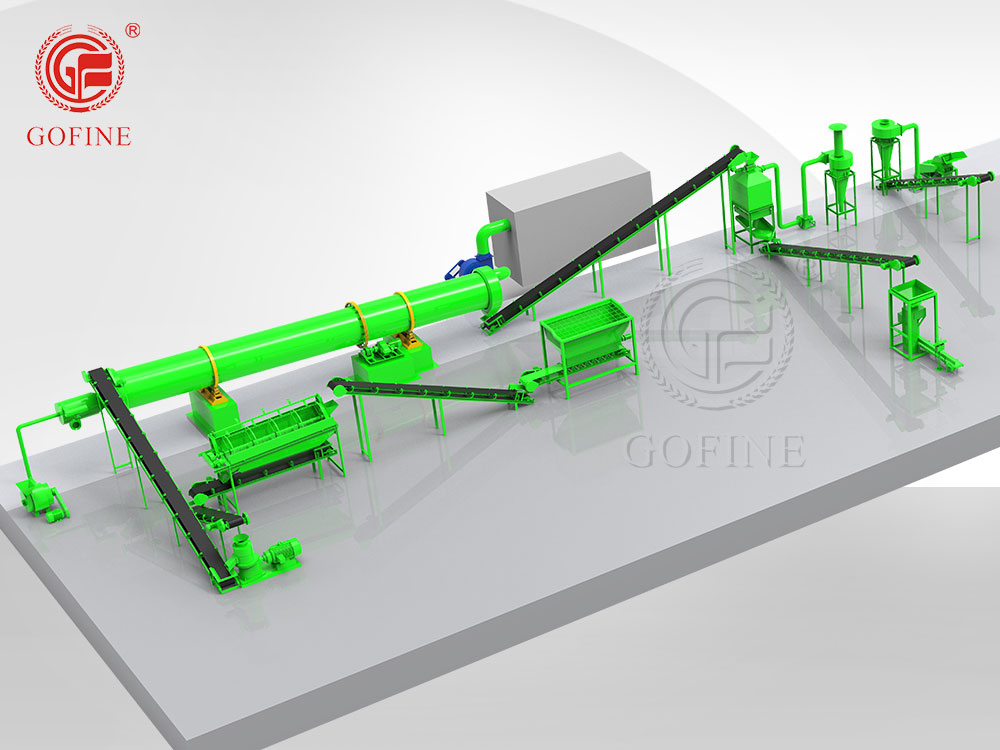

Turnkey Plant Integration

When investing in a complete bio-organic pelletizing plant, structural reliability and long-term uptime are critical to your factory's profitability. As an established industrial equipment manufacturer, we supply factory-direct configurations tailored to your space requirements and daily tonnage targets. Our engineering team provides full system layouts, custom stainless steel material options (SUS304/SUS316L) for corrosive chemical additions, and turnkey technical support to seamlessly update your existing manufacturing setup.

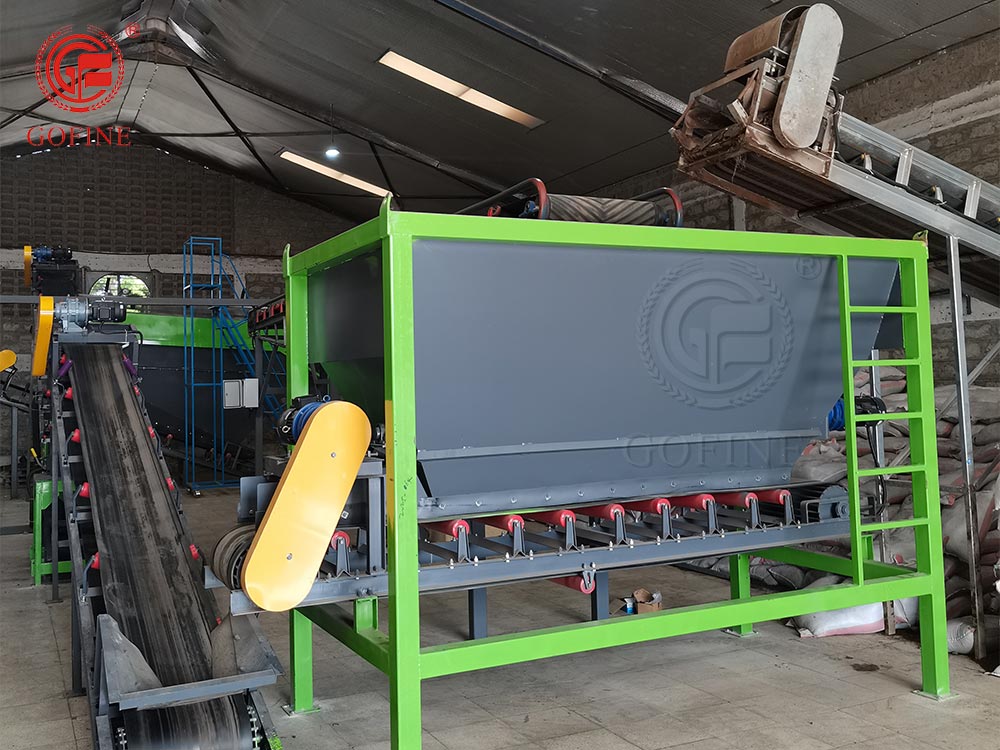

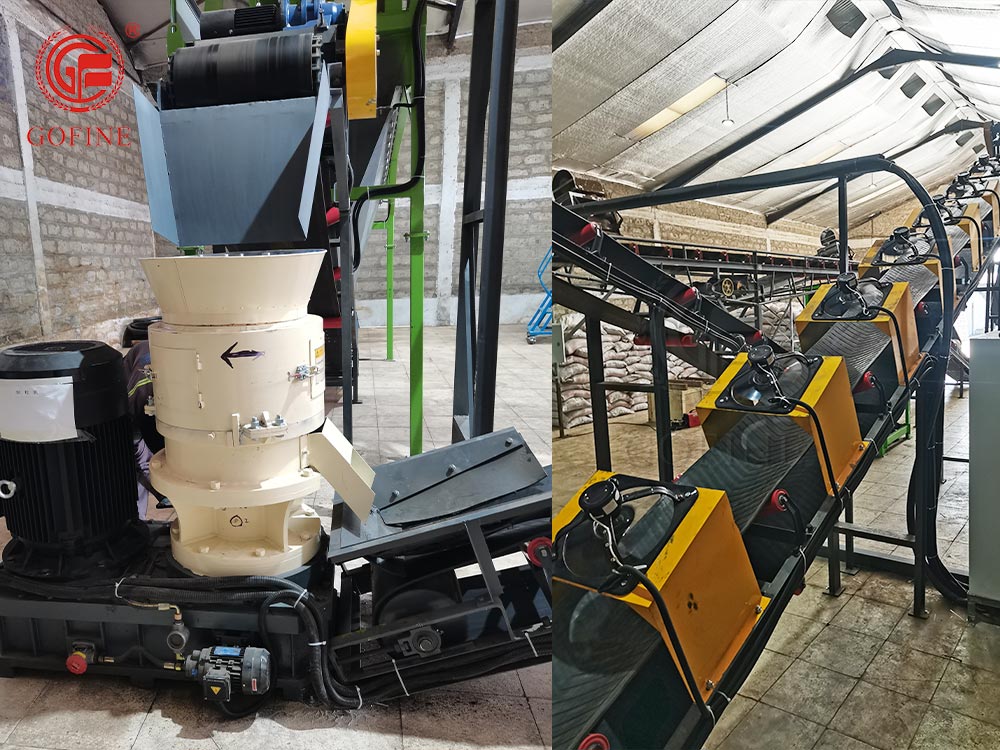

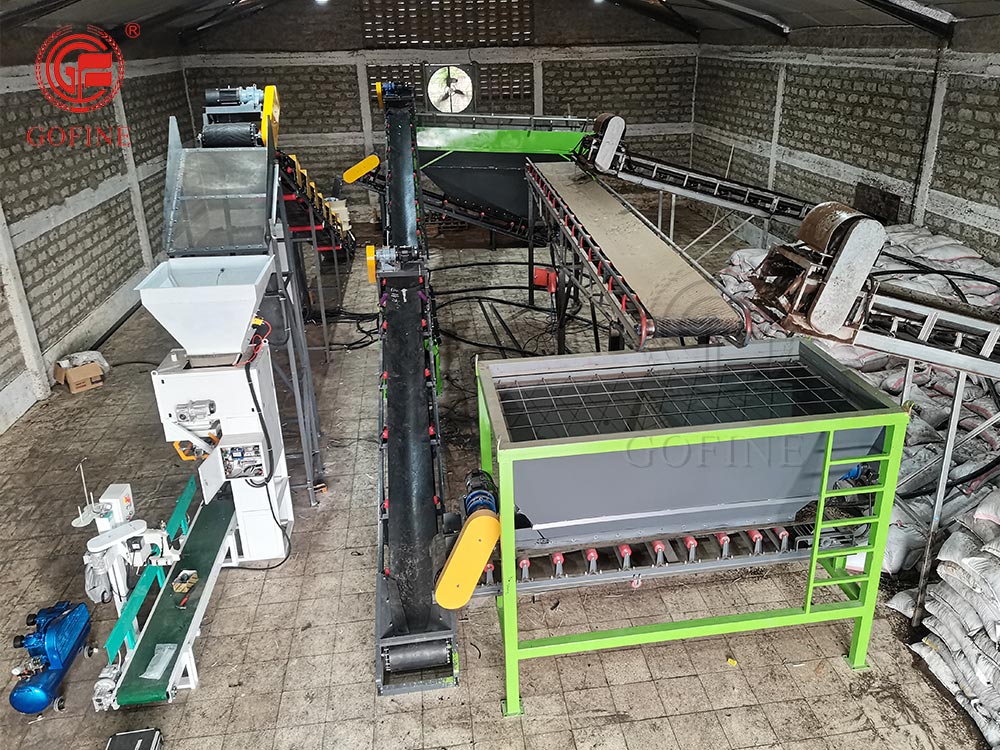

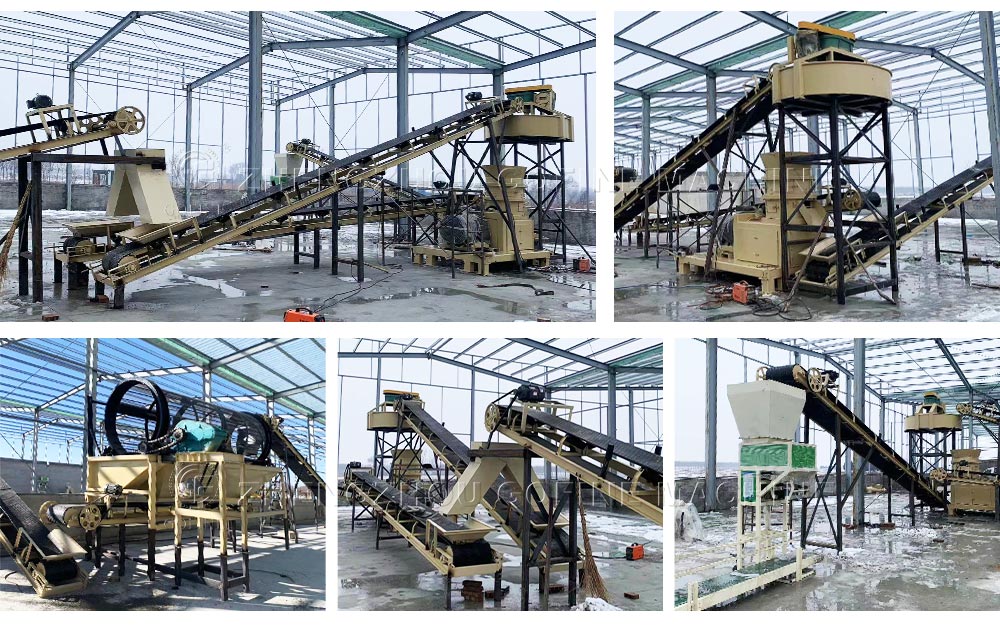

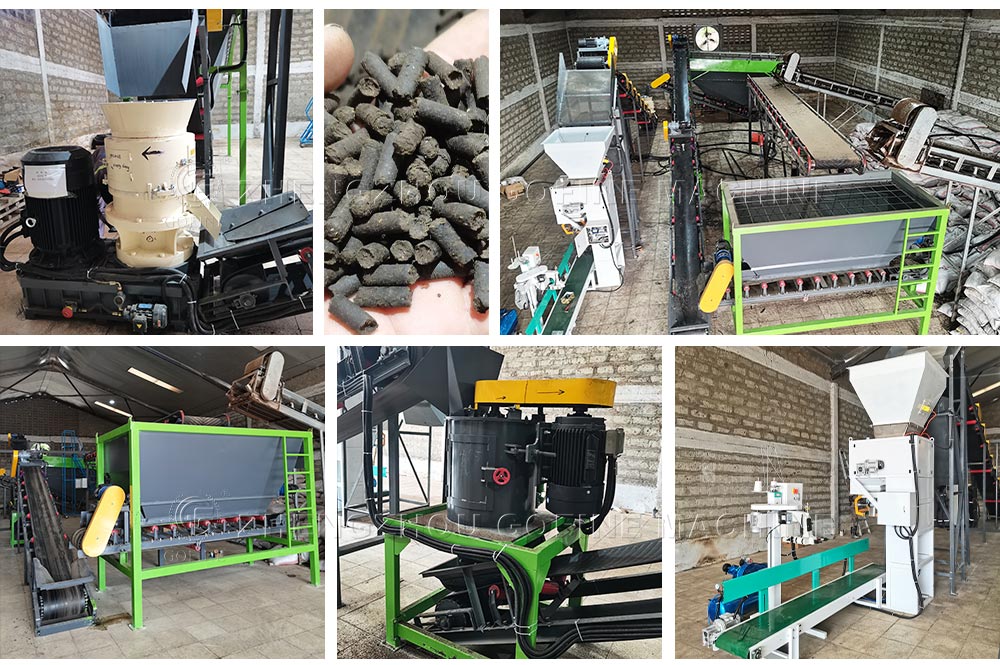

Customer Site

Video
